0.4mA Low Leakage Current IEC Inler Filter With Switch 1A,3A,6A EMI Filter
YB11B3-10A-Q Fast On IEC Inlet EMI Filter with Switch for Coffee Equipment
Technical Specification of EMI fiter
| Item | Emi Power Filter |
| Model | Emi Power Filter YB-B3 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 100pcs |
| Price | USD2~6.3/Meter |
| Lead Time | 5~15 weekday |
Features of EMI fiter
(1) Rated currents up to 10A
(2) 2-pole rocker switch
(3) Optional medical versions((R5) type)
(4) Quick connect(6.35*0.8mm)
(5) Multiple output modes(fast-on,solder and wire)
Typical Applications of EMI fiter
1. Portable electrical and electronic equipment;
2. Medical equipment;
3. Test and measurement equipment;
4. Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
Rule of Nomination of IEC Inlet Fiter
| YB | 11 | B3 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | B3 | | 6A : 6 amp | | Q:fast-on tab 250 |
| | | | | 8A : 8 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11B3 | B3 | 1 | Fast-on terminal |
| YB11B3 | B3 | 3 |
| YB11B3 | B3 | 6 | Wire |
| YB11B3 | B3 | 8 |
| YB11B3 | B3 | 10 | Solder Lug Terminals |

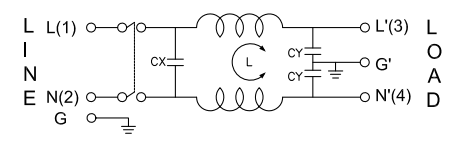

Electrical Schematic of EMI fiter

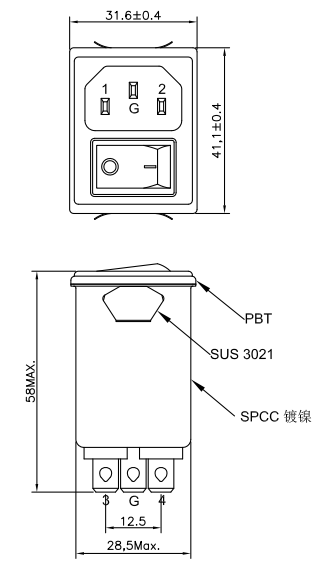

Mechanical Dimension(Unit: mm) of EMI fiter
| Case | A | B | C | D | E | F | G | H | I | J | K |
| B3/B4 | 52 | 28 | 39.5 | 30 | | 39 | 13 | 11 | 12.5 | | 6.35*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |
Insertion loss table(In 50ohm system according IEC/CISPR No.17) of EMI fiter
