Power Line Filter 1A~10A EMI Noise Filter Double Stage Single Phase Filter
| Item | Power EMI Filter |
| Model | YB24D2-6A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiable |
| Price | Negotiable |
| Lead Time | 15-25 weekday |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Rule of Nomination:
YB-----24-----D2----------6A-------Q/S/W----------(5)
¦ ¦ ¦ ¦ ¦
circuit case current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical Schematic:
general-purpose Fig.1
Medical type Fig.2

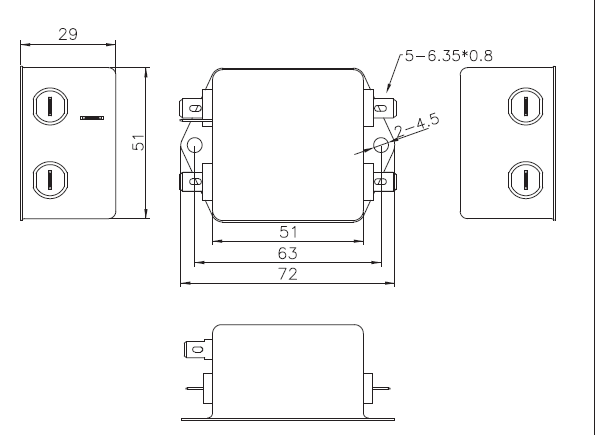

Mechanical Dimension(Unit: mm)

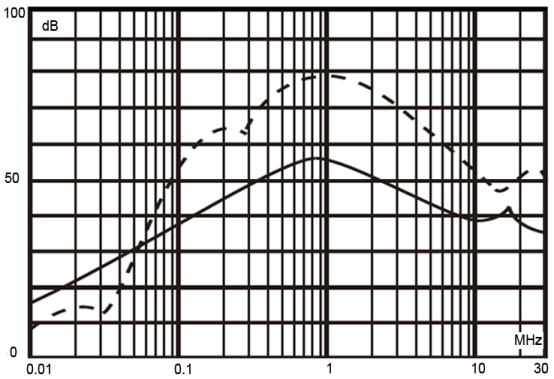

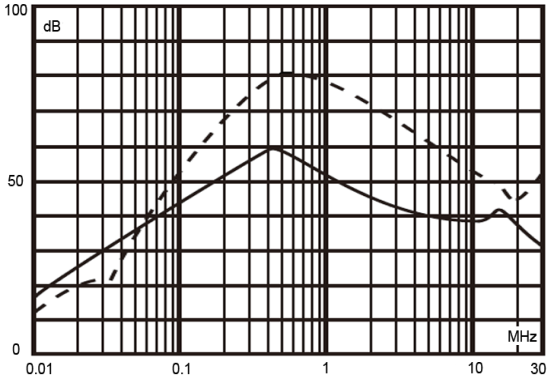

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
6A 15A
Sample
-- Sample Fee: Negotiate
-- Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T, L/C
---Please remember to leave the correct contact information for delivery.
Packaging
Power Line Filter: CTN/108pcs
N/G W.: 0.14/0.18KG/pcs
Measures:0.565*0.285*0.205m
Shipment
---Shipping terms: DHL, UPS, FedEx, TNT, EMS
---Port is Shenzhen or as requests.
