110V 250V 6A Low Leakage Current Filter Single Phase EMI Filter
YB12D2 Single Phase EMI Filter:
YB12D2-10A-W is a single phase power line filter designed to reduce or eliminate the existence of electromagnetic interference in the power system.It is usually composed of inductors, capacitors and resistors, with good common-mode and differential mode attenuation.
Feature Of YB12D2 Series Emi Filter:
1. EMI Filter compact size can be applied to various situations.
2. For symmetric and asymmetric interference attenuation
3. Excellent high/low frequency noise attenuation
4. Customized products according to customer's requirements
YB12D2 Power Line Filter Application:
1. Electrical and electronic equipment
2. Medical equipment
3. Building automation
4. Office automation and datacom equipment
| Item | Single Phase EMI Filter |
| Model | YB12D2 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~30A(optional) |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/50HZ 5uA Max |
| MOQ | 100PCS |
| Price | Negotiable |
Rule Of Nomination:
YB-----21--------D2---------6A-----------Q--------------( 5 )
¦ ¦ ¦ ¦ ¦
circuit case current connection Medical-type
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical Schematic:

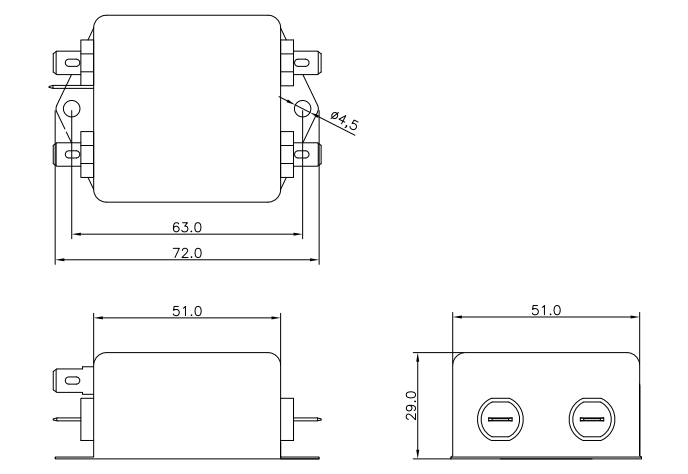

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
6A

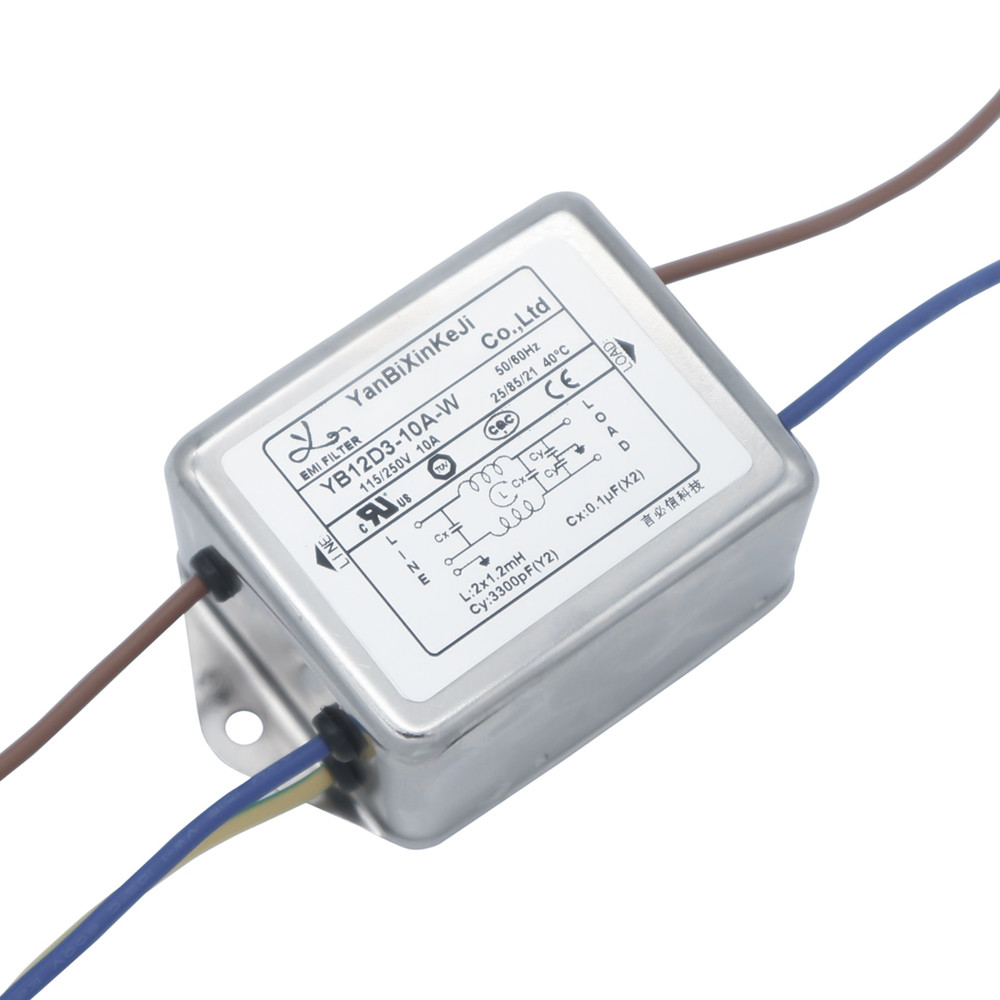

YB12D2-6A-Q(R) Single Phase Filter Picture:
The Pictures Of Factory:
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
