YB-F High Performance Single Phase Filter 20A EMI Power Filter For Electronic Equipment
Single Phase Power Filter:
YB12F2-20A-Q is a one-stage single phase filter with quick terminal output for fast installation, compact and small-size design for space and cost saving, EMI noise suppression, high-current and high-voltage EMI filtering, voltage range 110V~250V, current range 1A~20A.
Features Of Single Phase Filter:
-- The rated current can be offered from 1 to 30 amps.
-- Various output selections such as M4 screw terminal,wire and terminal block.
-- Designed one stage enhanced filtering to prevent the power supply may produce interference
-- The compact size can be applied to various situations.
-- There are a variety of parts and combinations to meet different customer's EMC tests
Single Phase Filter Application:
1. Electrical and electronic equipment
2. Medical equipment
3. Datacom equipment
4. Office automation equipment
| Item | One-stage single phase filter |
| Model | YB12F2-20A-S |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 1.4mA Max |
| MOQ | 10pcs |
Naming Rule:
| YB | 12 | F2 | - | 20A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 12:12 circuit | F2 | | 10A :10 amp | | Q:fast-on tab 250 |
| | | | | 20A :20 amp | | W:wire |
| | | | | 30A :30 amp | | S:M4 screw |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB12F2-10A | F2 | 10 | Fast-on terminal |
| YB12F2-15A | F2 | 15 |
| YB12F2-20A | F2 | 20 | Wire |
| YB12F2-30A | F2 | 30 |
| YB12F2-40A | F1 | 40 | M4 screw |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical Schematic:

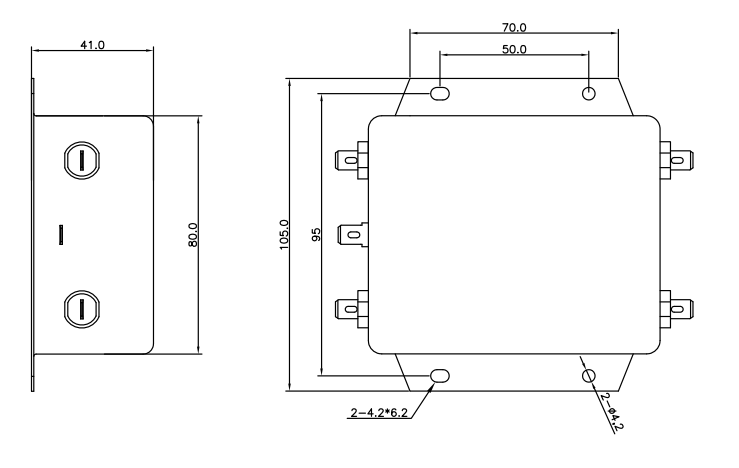

Mechanical Dimension(Unit: mm)
YB12F2-20A-Q EMI Filter Picture:
