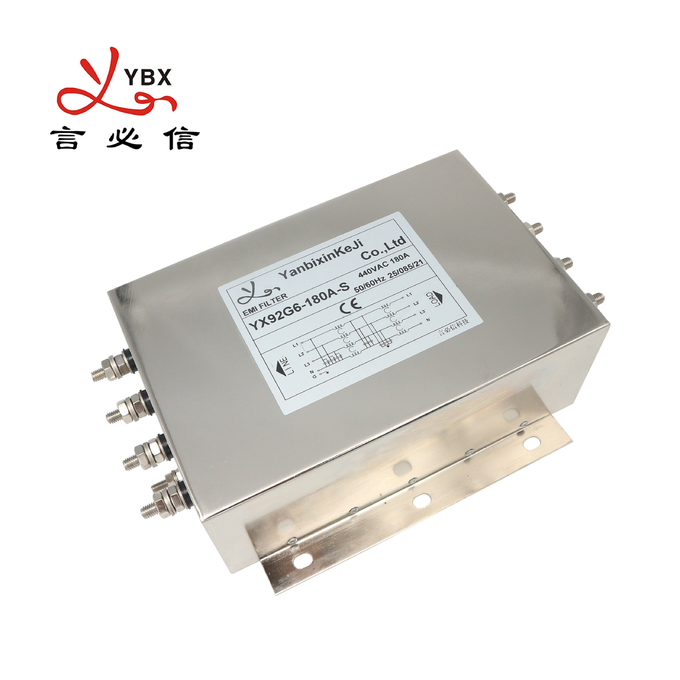

YX92G6 180A Three Phase Filter RFI EMI Filter For Automation Equipment

Brand Name : YBX

Model Number : YX92G6-180A-S

Certification : cUL, ENEC, CE, ROHS, ISO

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Supply Ability : 2000pcs per month

Delivery Time : 15-25 days

Packaging Details : 56.5*28.5*22.5CM

Product Name : Three Phase Four Line Filter

Voltage : 380V/440V

Current : 1A-200A

Frequency : 50/60HZ

Line to Line : 1450VDC

Line to Ground : 2250VDC or 2000VAC

Input impedance : 100ohm

MOQ : 5pcs

Contact Now

YX92G6 180A Three Phase Filter RFI EMI Output Filter For Automation Equipment

Technical Specification:

Item	YX92 Three Phase Filter
Model	YX92G6-100A-S
Transfer Function	High Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	380V/440V
Rated Current	10A-200A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC or 2000VAC
Maximum Leakage Current	250VAC/60HZ 1.4mA Max. 440VAC/60HZ 2.5mA Max
MOQ	5pcs
Price	USD3.8~88/Meter
Lead Time	3~15 weekday for Low Pass EMI Filter

Features:

1. Protection against interference of voltage

2. Used as a main input filter, YX91 filters can keep the system reliable by restrain the conducted interference

3. Customized products according to customer's requirements.

Typical Applications:

-- Mainframe computer systems

-- High power office equipment

-- UPS/SMPS

-- Automation equipment

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YX92G6-50A	G6	50	Fast-on terminal
YX92G6-80A	G6	80	Fast-on terminal
YX92G6-100A	G6	100	M4/M6/M8 Screw
YX92G6-150A	G6	150	M4/M6/M8 Screw
YX92G6-200A	G6	200	Terminal block

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Leakage current 440V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YX91G1-3A

<5.0mA

Fig.1

250/440V

50/60Hz

YX91G1-6A

Fig.1

YX91G1-10A

10A

Fig.1

YX91G2-15A

20A

Fig.1

YX91G2-20A

30A

Fig.1

YX91G2-25A

30A

Fig.1

YX91G2-30A

40A

Fig.1

YX91G3-35A

40A

<7.0mA

Fig.1

YX91G5-50A

50A

Fig.1

YX91G5-60A

60A

Fig.1

YX91G5-80A

80A

<10.0mA

Fig.1

YX91G4-100A

100A

Fig.1

YX91G6-150A

150A

<15.0mA

Fig.1

YX91G6-200A

200A

Fig.1

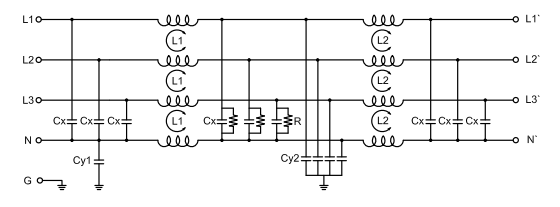

Electrical Schematic:

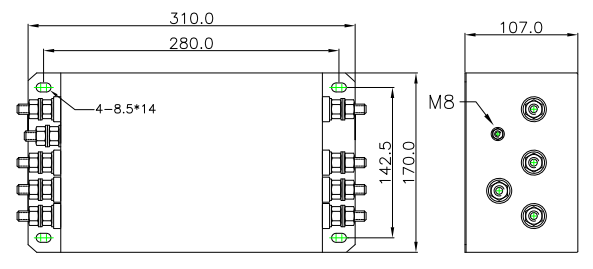

Mechanical Dimension(Unit: mm)

YX92G6 180A Three Phase Filter RFI EMI Filter For Automation Equipment

YX92G6-100A-S EMI Filters

YX92G6 180A Three Phase Filter RFI EMI Filter For Automation Equipment

Case	A	B	C	D	E	F	G	H	I	J	K	L	M

G1	72	65	39	75	85	35	22		45	M4	M4/M6

G2	98	80	40	95	105	50	20	4.5*6.5	50	M4	M4/M6

G3	120	100	50	115	130	50	28	4*6	60	M4	M4/M6

G4	200	127	80	150	170	62	49.5	6*9	117	M6/M8	M8/M10

G5	150	105	60	120	135	55	35	4*6	90	M6	M8

G6	260	170	100	196	220	85	65	8*12	172	M8	M10

Tolerances	±1	±1	±1	±0.15	±1	±0.5	±0.5	±0.15	±0.15		±0.15	±0.15	±2

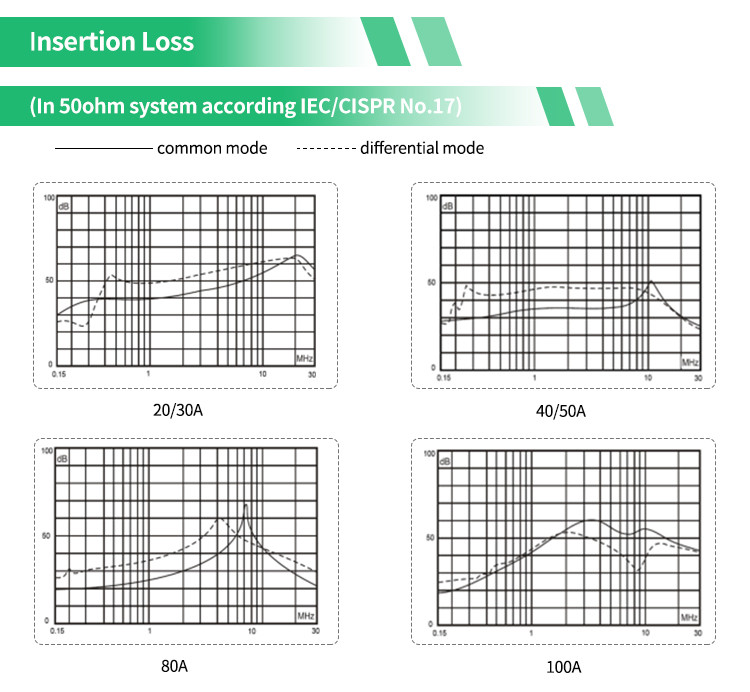

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

YX92G6 180A Three Phase Filter RFI EMI Filter For Automation Equipment
