Description Of PCB EMI Filter:

PCB EMI filter is a passive electronic component that is designed to reduce or eliminate electromagnetic interference (EMI) in printed circuit board (PCB) applications. It is typically comprised of a circuit board with integrated capacitors, inductors, and resistors that create a low-pass filter to remove high-frequency noise and interference from an electrical signal.

Characteristics:

(1) Voltage Rating............................................................................................115/250VAC

(2) Current Rating:

A.@115VAC............................................................................................... 3A RMS Max.

B.@250VAC............................................................................................... 3A RMS Max.

(3) Oprating Frequency:50/60Hz

(4) Leakage Current: each line to ground

A. 115VAC/60Hz........................................................................................... 0.05mA Max.

B. 250VAC/50Hz...........................................................................................0.mA Max.

(5) Hipot Rating(for one minute)

A. Line to ground............................................................................................ 2250VDC

B. Line to line.................................................................................................. 1450VDC

(6) IR: 50M ohm A7 500VDC any input or output to ground

(7) Temperature Range: -25℃~+85℃

 Feature Of EMI Filter For PCB:

1. EMI Reduction: PCB EMI filters are designed to reduce or eliminate electromagnetic interference (EMI) in printed circuit board (PCB) applications.

2. Compact Design: PCB EMI filters are available in a variety of compact form factors, making them easy to integrate into PCB designs.

3. Regulatory Compliance: PCB EMI filters are designed to meet various safety standards and regulations, ensuring that they are safe and reliable for use in a range of applications.

4. Easy Installation: PCB through hole mounting. into existing PCB designs.

• Parameter Of PCB EMI filter:

• Item	PCB special emi filter	Rated Current	1A~6A
  Model	YB11P1-3A-S	Rated Voltage	115V/250V
  Operating Frequency	50/60HZ	Line to Line	1450VDC
  Output mode	Pin	Line to Ground	2250VDC
  Transfer Function	Low Pass	Leakage Current	115VAC/50HZ 0.05mA Max 250VAC/60HZ 0.1mA Max
  Package Type	Surface Mount	Environmental Temperature	40℃
  Nominal Center Frequency	100K-30MHZ	Input Impedance	50Ω
  Insertion Loss	50~80dB	Lead Time	5~15 weekday
  Temperature Range	25 / 085 / 21	Price	negotiable
  Flammability corresponding	UL 94V-0	MOQ	100pcs

YB-P Series Emi Filter Model List:

Model No.

Rated Current @40°C

Terminal Options 输出方式

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11P1-1A-S

1A

-

S

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11P1-3A-S

3A

-

S

-

Fig.1

YB11P1-6A-S

6A

-

S

-

Fig.1

YB11P2-1A-S

1A

-

S

-

Fig.1

YB11P2-3A-S

3A

-

S

-

Fig.1

YB11P2-6A-S

6A

-

S

-

Fig.1

YB11P3-1A-S

1A

-

S

-

Fig.1

YB11P3-3A-S

3A

-

S

-

Fig.1

YB11P3-6A-S

6A

-

S

-

Fig.1

YB12P3-1A-S

1A

-

S

-

Fig.2

YB12P3-3A-S

3A

-

S

-

Fig.2

YB12P3-6A-S

6A

-

S

-

Fig.2

Naming rules:

YB11-------------P1------------3A-------------------S

      |                  |                   |                         |

  Circuit         Case          Current       Installation mode

                                                           S: Pin

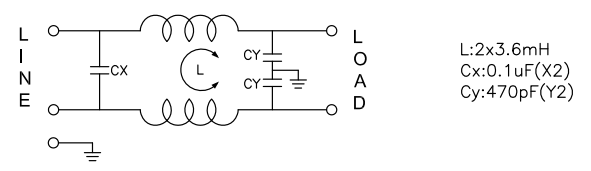

Electrical Schematic Diagram:

Insertion loss table(In 50ohm system according IEC/CISPR No.17

       Common mode                        Different mode

                                                                         3A

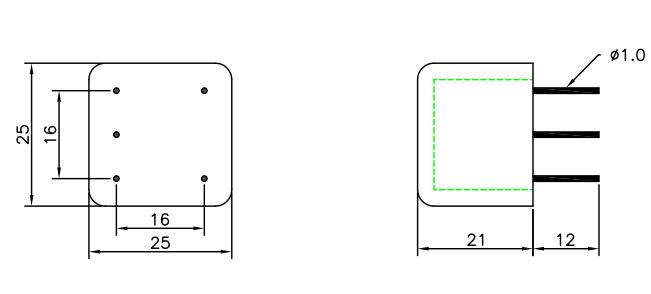

Physical Size:

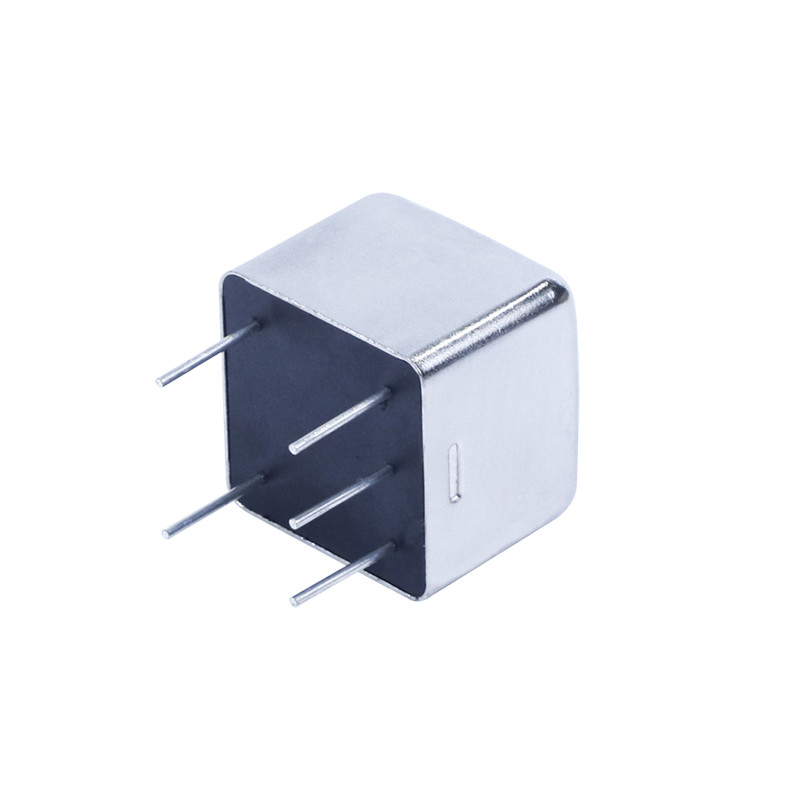

PCB Emi Filter Picture:
