Surface Mount 30A Dc Power Line Emi Filter For Electric Scooter
| Item | DC Filter |
| Model | DC Filter -YB-E/D/F |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~60A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | USD2~8.8/Meter |
| Lead Time | 5~15 weekday |
Our Company
Our company is a collection of electromagnetic compatibility (EMC) & EMI FILTERS
research and development, production and sales of high new technical enterprise.
1.Customized:We have a professional R&D team; our aims is we won't let customers
spend any extra money.
2.Listed company:National high-tech enterprises, brand assurance, reliable quality, and
we have the relevant product certifications.
3.Rectification test: We cooperate with top scientific research laboratories to provide free
EMC rectification technical support, samples; and free conduction test.
4.Scale production:Automation technology, scale production, great price,excellent, service,
fast delivery! Free replacement within three months, free maintenance within six years,
life-long maintenance!

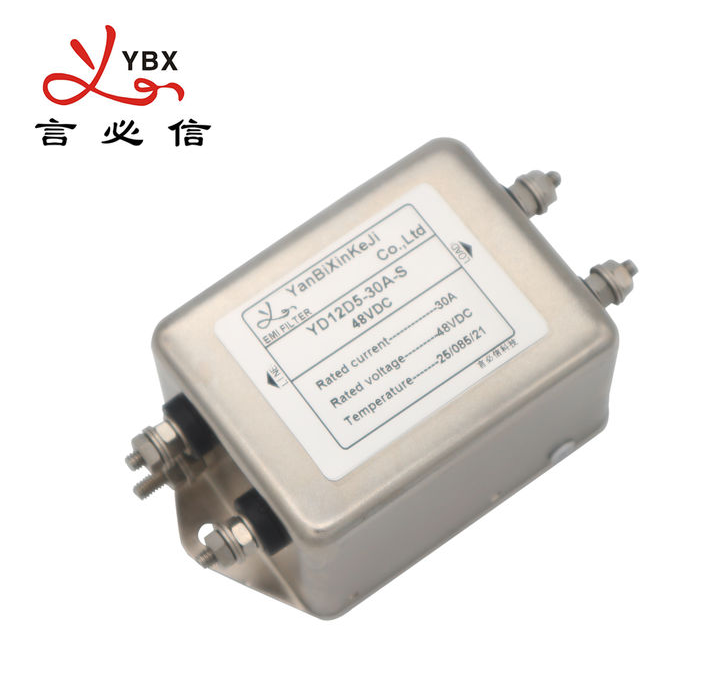

Product Picture
Electrical schematic:
Mechanical Dimension(Unit: mm)
Common mode -------- differential mode
1A 6A
10A 20A
30A
Characteristics
(1) Voltage Rating............................................................................................115/250VAC
(2) Current Rating:
A.@115VAC............................................................................................... 20A RMS Max.
B.@250VAC............................................................................................... 20A RMS Max.
(3) Oprating Frequency:50/60Hz
(4) Leakage Current: each line to ground
A. 115VAC/60Hz........................................................................................... 0.4mA Max.
B. 250VAC/50Hz...........................................................................................0.8mA Max.
(5) Hipot Rating(for one minute)
A. Line to ground............................................................................................ 2250VDC
B. Line to line.................................................................................................. 500VDC
(6) IR: 50M ohm A7 500VDC any input or output to ground
(7) Temperature Range: -25℃~+85℃
Our Certificates
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Our service
Sample
-- Sample Fee: Negotiate
-- Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T,L/C
---Please remember to leave the correct contact information for delivery.
Packaging and Shipping
Packaging
Power Line Filter: CTN/300pcs
N/G W.: 13.5/14.3KG
Measures:0.565*0.285*0.225m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhen or as requests.
GIVE US A CHANCE TO COOPERATE
WITH YOU!
