YB41D4-10A EMI Line Emi Rfi Ac Choke Filter For Electronic Equipments
| Item | Power line Filter |
| Model | Power line Filter YB-D |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~50A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 50pcs |
| Price | USD1.65~10.8/Meter |
| Lead Time | 5~15 weekday |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Rule of Nomination:
YB 24 E4 - 10A - Q ( 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options* | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB41D3-1A | 1A | Q | S | W | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB41D3-2A | 2A | Q | S | W | Fig.1 |
| YB41D3-3A | 3A | Q | S | W | Fig.1 |
| YB41D3-4A | 4A | Q | S | W | Fig.1 |
| YB41D3-6A | 6A | Q | S | W | Fig.1 |
| YB41D3-8A | 8A | Q | S | W | Fig.1 |
| YB41D3-10A | 10A | Q | S | W | Fig.1 |
| YB41D4-1A | 1A | Q | S | W | Fig.1 |
| YB41D4-2A | 2A | Q | S | - | Fig.1 |
| YB41D4-3A | 3A | Q | S | - | Fig.1 |
| YB41D4-4A | 4A | Q | S | - | Fig.1 |
| YB41D4-6A | 6A | Q | S | - | Fig.1 |
| YB41D4-8A | 8A | Q | S | - | Fig.1 |
| YB41D4-10A | 10A | Q | S | - | Fig.1 |
| YB42D3-1A | 1A | Q | S | W | Fig.3 |
| YB42D3-2A | 2A | Q | S | W | Fig.3 |
| YB42D3-3A | 3A | Q | S | W | Fig.3 |
| YB42D3-4A | 4A | Q | S | W | Fig.3 |
| YB42D3-6A | 6A | Q | S | W | Fig.3 |
| YB42D3-8A | 8A | Q | S | W | Fig.3 |
| YB42D3-10A | 10A | Q | S | W | Fig.3 |
| YB42D4-1A | 1A | Q | S | W | Fig.3 |
| YB42D4-2A | 2A | Q | S | - | Fig.3 |
| YB42D4-3A | 3A | Q | S | - | Fig.3 |
| YB42D4-4A | 4A | Q | S | - | Fig.3 |
| YB42D4-6A | 6A | Q | S | - | Fig.3 |
| YB42D4-8A | 8A | Q | S | - | Fig.3 |
| YB42D4-10A | 10A | Q | S | - | Fig.3 |
Medical Type Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options | Medical equipment
5 | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB41D3-1A-x(5) | 1A | Q | S | W | 5 | <5μA | Fig.2 | 115/250V | 50/60Hz |
| YB41D3-2A-x(5) | 2A | Q | S | W | 5 | Fig.2 |
| YB41D3-3A-x(5) | 3A | Q | S | W | 5 | Fig.2 |
| YB41D3-4A-x(5) | 4A | Q | S | W | 5 | Fig.2 |
| YB41D3-6A-x(5) | 6A | Q | S | W | 5 | Fig.2 |
| YB41D3-8A-x(5) | 8A | Q | S | W | 5 | Fig.2 |
| YB41D3-10A-x(5) | 10A | Q | S | W | 5 | Fig.2 |
| YB41D4-1A-x(5) | 1A | Q | S | W | 5 | Fig.2 |
| YB41D4-2A-x(5) | 2A | Q | S | - | 5 | Fig.2 |
| YB41D4-3A-x(5) | 3A | Q | S | - | 5 | Fig.2 |
| YB41D4-4A-x(5) | 4A | Q | S | - | 5 | Fig.2 |
| YB41D4-6A-x(5) | 6A | Q | S | - | 5 | Fig.2 |
| YB41D4-8A-x(5) | 8A | Q | S | - | 5 | Fig.2 |
| YB42D3-1A-x(5) | 1A | Q | S | W | 5 | Fig.4 |
| YB42D3-2A-x(5) | 2A | Q | S | W | 5 | Fig.4 |
| YB42D3-3A-x(5) | 3A | Q | S | W | 5 | Fig.4 |
| YB42D3-4A-x(5) | 4A | Q | S | W | 5 | Fig.4 |
| YB42D3-6A-x(5) | 6A | Q | S | W | 5 | Fig.4 |
| YB42D3-8A-x(5) | 8A | Q | S | W | 5 | Fig.4 |
| YB42D3-10A-x(5) | 10A | Q | S | W | 5 | Fig.4 |
| YB42D4-1A-x(5) | 1A | Q | S | W | 5 | Fig.4 |
| YB42D4-2A-x(5) | 2A | Q | S | - | 5 | Fig.4 |
| YB42D4-3A-x(5) | 3A | Q | S | - | 5 | Fig.4 |
| YB42D4-4A-x(5) | 4A | Q | S | - | 5 | Fig.4 |
| YB42D4-6A-x(5) | 6A | Q | S | - | 5 | Fig.4 |
| YB42D4-8A-x(5) | 8A | Q | S | - | 5 | Fig.4 |
| YB42D4-10A-x(5) | 10a | Q | S | - | 5 | Fig.4 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Electrical schematic:
Fig.1
Fig.2
Fig.3
Fig.4

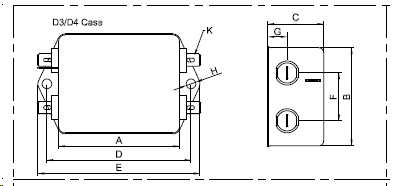

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L |
| D3 | 63 | 51 | 29 | 75 | 85 | 25 | 10 | 5 | | | 6.3*0.8 | |
| D4 | 63 | 51 | 38 | 75 | 85 | 27 | 15.5 | 4.5 | | | 6.3*0.8 | |
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 | ±2 |

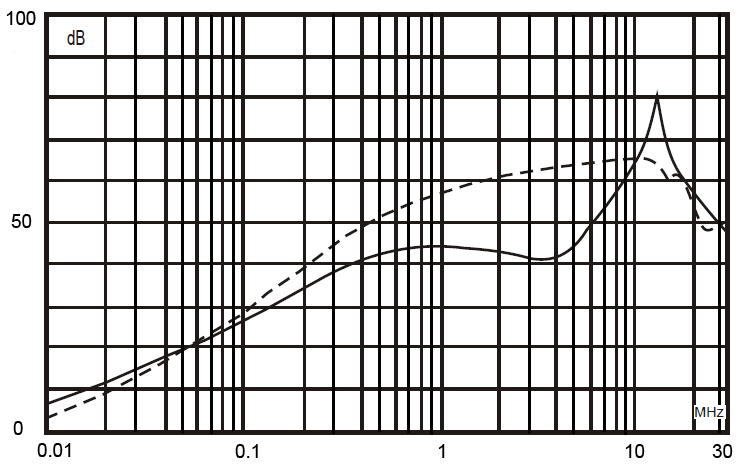

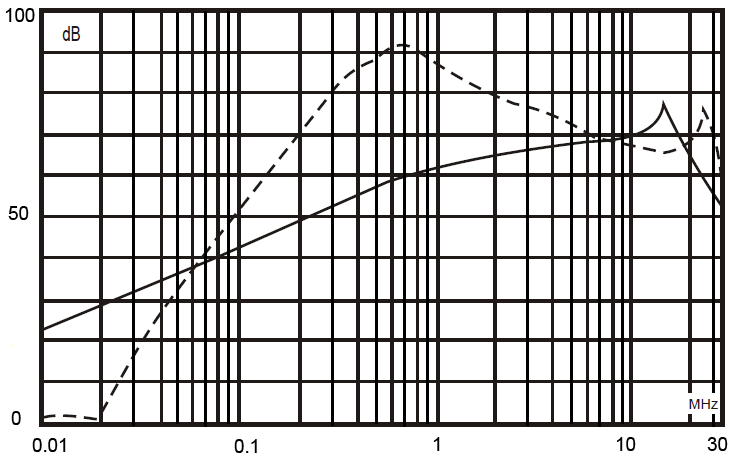

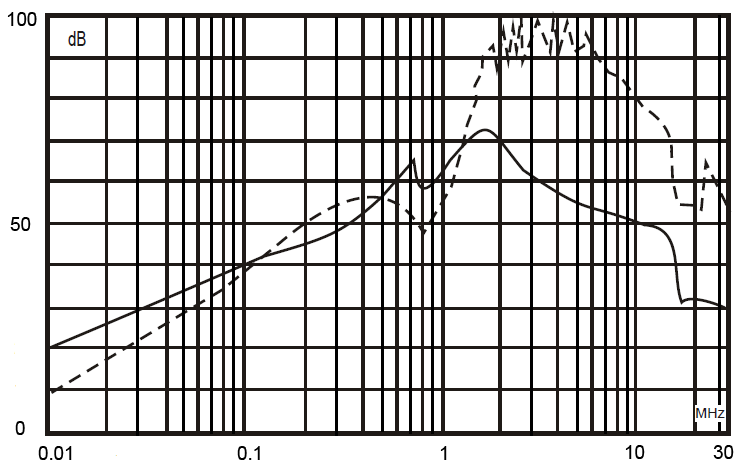

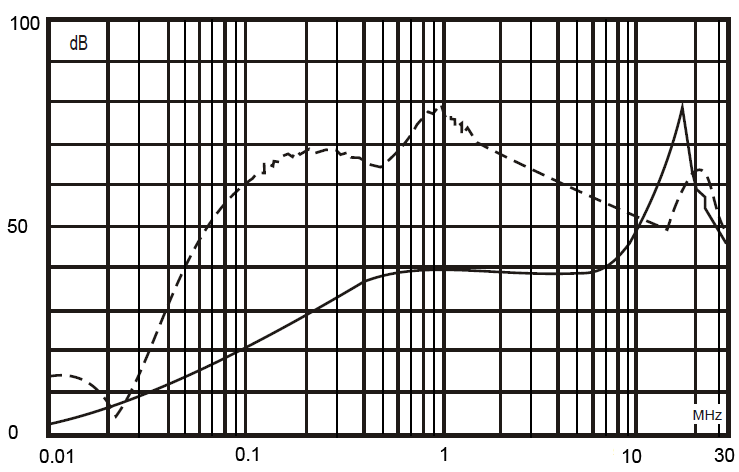

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
6A 10A
20a
