115V/250V 1A~10A General Purpose EMI Filter Single Phase Filter For Fitness Equipment
Single Phase Filter:
EMI Filter Specification:
| Item | General purepose single phase filter |
| Model | YB12D2-10A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC 250VAC |
| Rated Current | 1A~30A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.5mA Max |
| MOQ | 500pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features:
-- The rated current can be offered from 1 to 30 amps.
-- Various output selections such as M4 screw terminal,wire and terminal block.
-- Designed one stage enhanced filtering to prevent the power supply may produce interference
-- The compact size can be applied to various situations.
-- There are a variety of parts and combinations to meet different customer's EMC tests
Typical Applications:
1. Electrical and electronic equipment
2. Medical equipment
3. Datacom equipment
4. Office automation equipment
Rule of Nomination of EMI Filter
| YB | 12 | D2 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 12:12 circuit | D2 | | 6A : 6 amp | | Q:fast-on tab 250 |
| | | | | 8A : 8 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB12D2-1A | D2 | 1 | Fast-on terminal |
| YB12D2-3A | D2 | 3 |
| YB12D2-6A | D2 | 6 | Wire |
| YB12D2-8A | D2 | 8 |
| YB12D2-10A | D2 | 10 | Solder Lug Terminals |

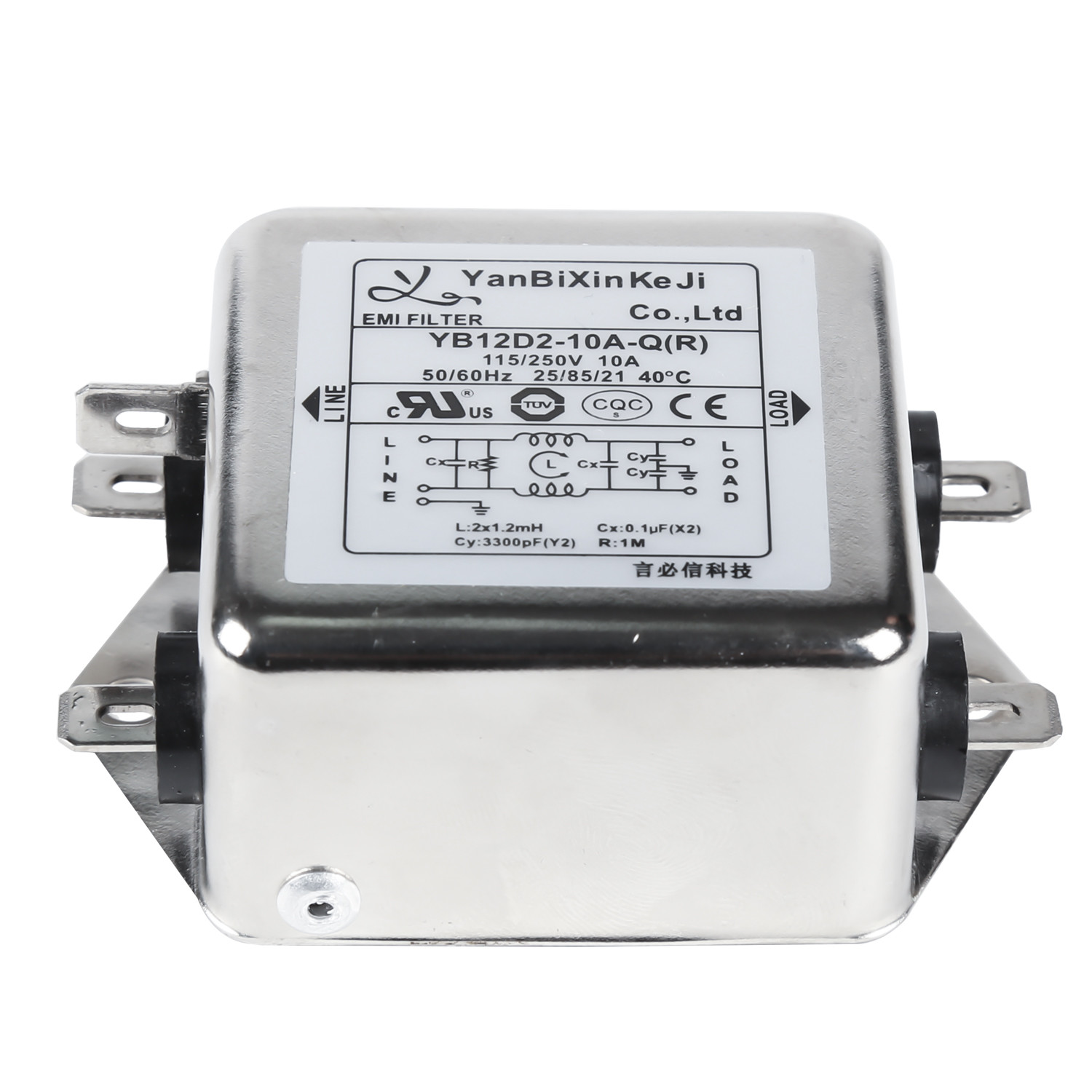

YB12D2-10A-Q(R) Product Picture:

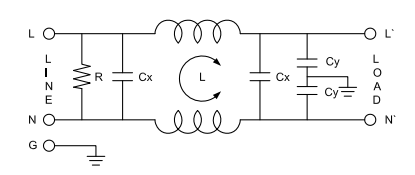

Electrical Schematic:

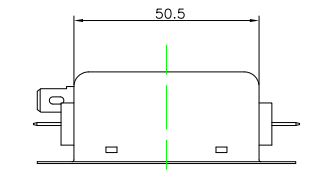

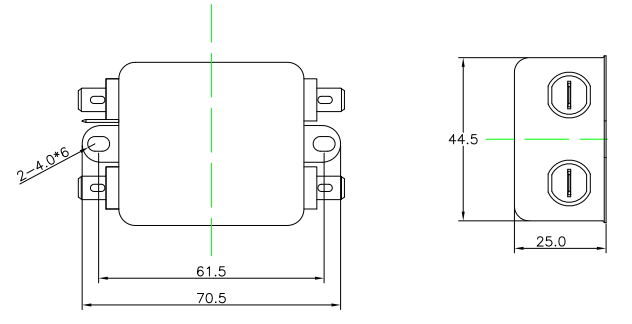

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Other EMI Filter Series
We have the most complete range of EMI filters, in addition to IEC Inlet Filter and Power Entry Module Filter, we also have single-phase filters, three-phase filters, special EM filters for PC boards and so on, contact us, we have professional technicians to choose the right EMI filters for you, look forward to hearing from.
|
|
