15amp 220V Single Phase Filter Din Rail RFI Filter For Automation Equipment

Brand Name : YBX

Model Number : YB12F2-16A-T(R5)

Certification : UL, CE, CB, CQC, ENEC

Place of Origin : China

MOQ : 200pcs

Price : Negotiable

Payment Terms : T/T,L/C

Supply Ability : 60000 Pieces/month

Delivery Time : 5-8 work day

Packaging Details : 56.5*28.5*22.5cm

Product name : F Series Single Phase Filter

Rated voltage : 115/250VAC

Rated current : 3A/6A/10A/15A/20A

Operating frequency : 50/60Hz

Line to line : 1450VDC

Line to ground : 2250VDC

Contact Now

YB12F2 15amp 220V High Performance Single Phase Filter Din-rail RFI Filter For Automation Equipment

Product Features:

1. High secuirty and reliability, high performance

2. Good performance of suppressing common mode and differential mode interference

3. High performance/price ratio, various connection ways

Technical Specification:

Item	F Series Single Phase Filter
Model	YB12F2-16A-T(R5)
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	3A~200A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Datacom equipment

-- Office automation equipment

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB12F2-6A	F2	6	Fast-on terminal
YB12F2-10A	F2	10	Fast-on terminal
YB12F2-15A	F2	15	M4/M6/M8 Screw
YB12F2-20A	F2	20	M4/M6/M8 Screw
YB12F2-30A	F2	30	Terminal Block

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Tabulates:

Model No.	Rated Current @40°C	Terminal Options*			Bleeder resistor(optional)	Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
		Terminal Options*

YB12E3-1A	1A	Q	-	W	-	<0.8mA	Fig.1	115/250V	50/60Hz
YB12E3-3A	3A	Q	-	W	-		Fig.1
YB12E3-6A	6A	Q	-	W	-		Fig.1
YB12E4-1A	1A	Q	S	W	-		Fig.1
YB12E4-3A	3A	Q	S	W	-		Fig.1
YB12E4-6A	6A	Q	S	W	-		Fig.1
YB12E4-8A	8A	Q	S	W	-		Fig.1
YB12E4-10A	10A	Q	S	W	-		Fig.1
YB12E4-15A	15A	Q	S	-	-		Fig.1
YB12E4-20A	20A	Q	S	-	-		Fig.1
YB12F1-30A	30A	-	S	-	-		Fig.1
YB12F1-40A	40A	-	S	-	-		Fig.1
YB12F2-30A	30A	-	S	-	-		Fig.1
YB12F2-40A	40A	-	S	-	-		Fig.1
YB12F3-40A	40A	-	S	-	-		Fig.1
YB12F3-50A	50A	-	S	-	-		Fig.1
YB12F4-50A	50A	-	S	-	-		Fig.1

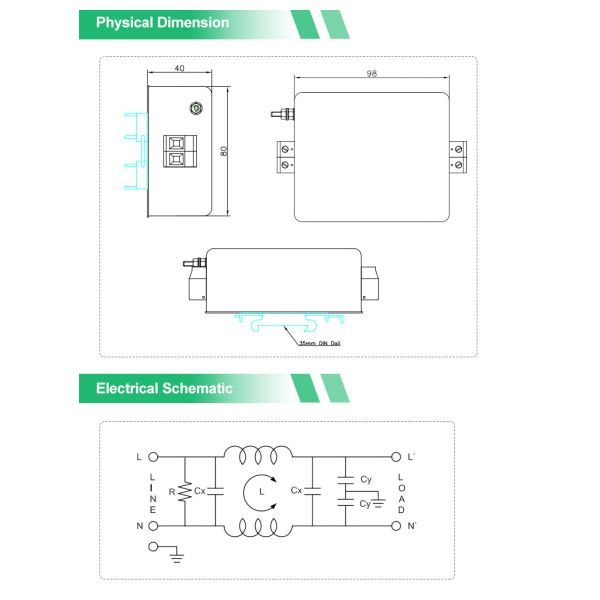

Electrical Schematic & Mechanical Dimension(Unit: mm)

15amp 220V Single Phase Filter Din Rail RFI Filter For Automation Equipment

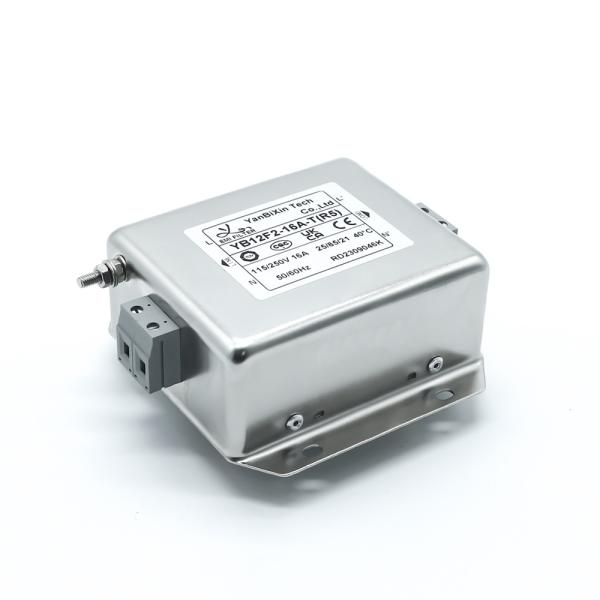

YB22D6-20A-Q(R) EMI Filter Picture:

15amp 220V Single Phase Filter Din Rail RFI Filter For Automation Equipment

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

15amp 220V Single Phase Filter Din Rail RFI Filter For Automation Equipment

15amp 220V Single Phase Filter Din Rail RFI Filter For Automation Equipment Images
