Three Phase Four Wire Filter 2250VDC Line To Ground EMI Filter 10A~100A
Typical Applications:
Applications requiring high-frequency attenuation:Textiles machinery,Food machinery,Elevator,Numerical control equipment and so on
High power office equipment:Automatic equipment ,Packaging machinery,Printing machinery,Dispensing machinery and so on
Power supplies:Inverter power supply ,High frequency aluminum oxide switching power supply ,SPS,UPS,and so on
Office and data processing equipment:Fax Machine,PABX and so on
Technical Specification:
| Item | Three Phase Four Wire Filter |
| Model | YX93G3-30A-S |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1A-100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC or 2000VAC |
| Maximum Leakage Current | 380VAC/60HZ 1.4mA Max. 440VAC/60HZ 2.5mA Max |
| MOQ | 10pcs |
| Price | USD3.8~98/Meter |
| Lead Time | 3~15 weekday For Three Phase EMI Filter |
Features:
1. ---YX93-G series.
2. ---Rated current 1~1200A
3. --- High freguency attenuation can reach to 300Mhz
4. ---Standard voltage 440 and 520vac can be used
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX93G3-10A | G3 | 10 | M4/M6/M8 screw |
| YX93G3-20A | G3 | 20 |
| YX93G3-30A | G3 | 30 | Terminal block |
| YX93G3-40A | G3 | 40 |
| YX93G3-50A | G3 | 50 | Copper bar |
B: Copper bar
S: Screw lug
T: Terminal block
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Leakage current 440V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
|
|
|
|
| YX93G2-3A | 3A | Q | S | T | <5.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX93G2-6A | 6A | Q | S | T | Fig.1 |
| YX93G2-10A | 10A | Q | S | T | Fig.1 |
| YX93G3-15A | 15A | Q | S | T | Fig.1 |
| YX93G3-20A | 20A | - | S | T | Fig.1 |
| YX93G3-25A | 25A | - | S | T | Fig.1 |
| YX93G3-30A | 30A | - | S | T | Fig.1 |
| YX93G5-40A | 40A | - | S | T | <10.0mA | Fig.1 |
| YX93G5-50A | 50A | - | S | T | Fig.1 |
| YX93G4-60A | 60A | - | S | T | Fig.1 |
| YX93G4-70A | 70A | - | S | T | Fig.1 |
| YX93G4-80A | 80A | - | S | T | Fig.1 |
| YX93G4-100A | 100A | - | S | T | <20.0mA | Fig.1 |
| YX93G4-130A | 130A | - | S | T | Fig.1 |
| YX93G6-150A | 150A | - | S | T | Fig.1 |
| YX93G6-200A | 200A | - | S | T | Fig.1 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block

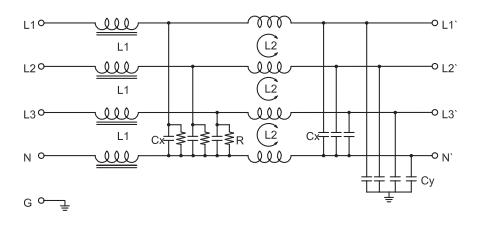

Electrical Schematic:

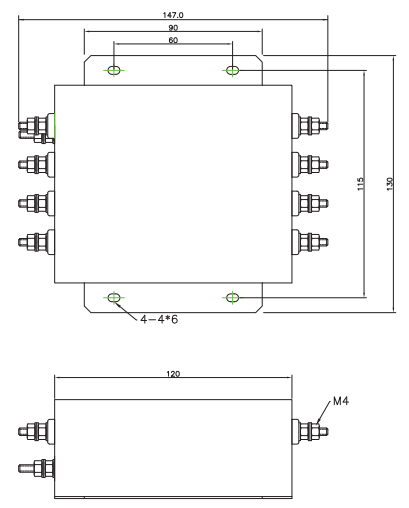

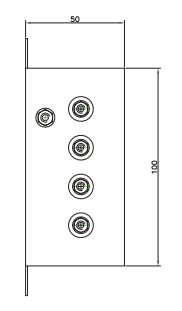

Mechanical Dimension(Unit: mm)

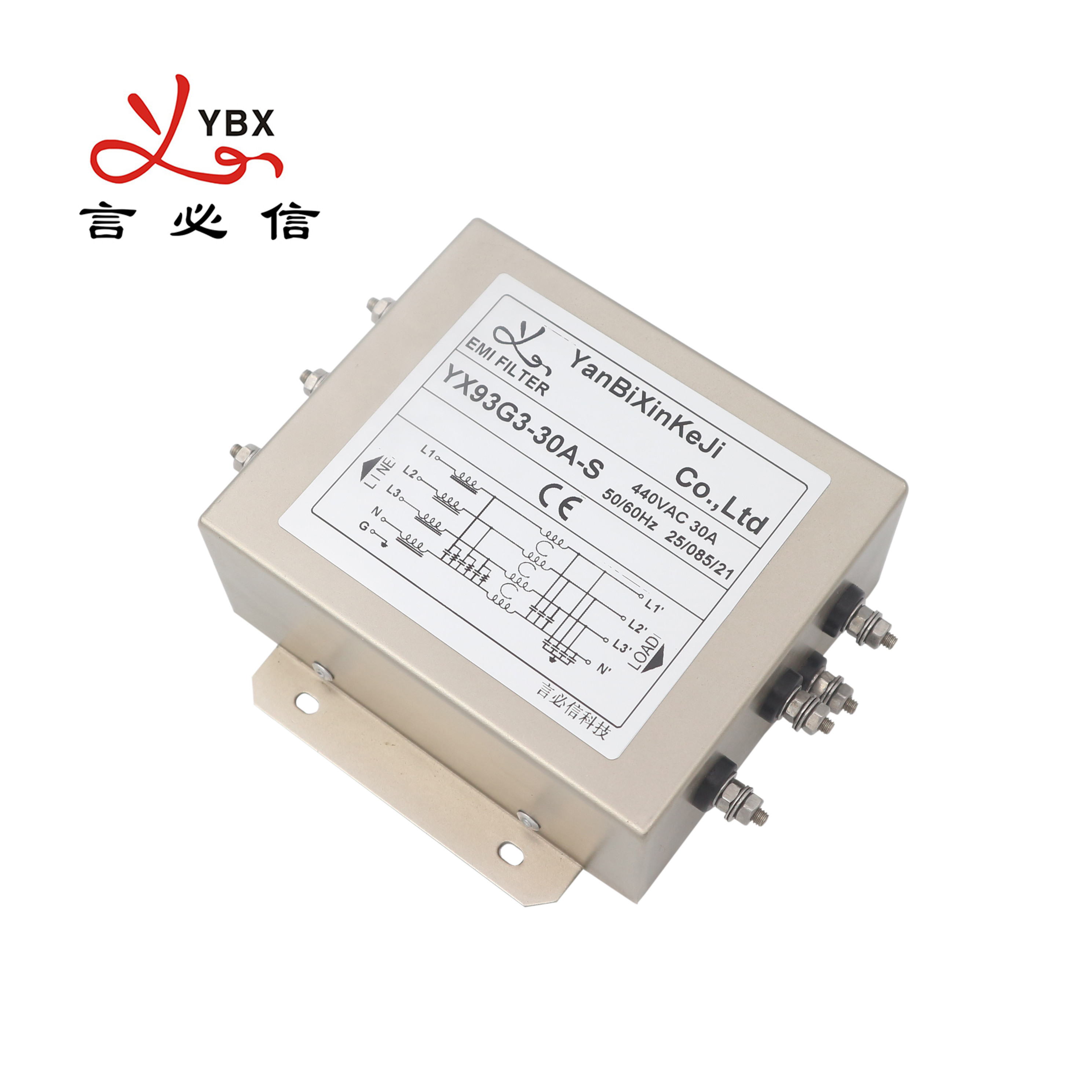

YX93G3-30A-S Three Phase Filter Picture:
FAQ
1. What can you supply?
A: We can supply custom EMI Power Filter,3 Phase EMI Filter,EMI EMC Filter and so on, all kinds of EMI Filter.
2. Are OEM and ODM available?
A: Yes, they are. As a professional EMI Power Filter manufacturer, we offer OEM and ODM service.
Q: What are your main products?
A: Our main products are EMI Power Filter.
4. How about your product warranty?
A: We offer one-year warranty upon delivery.
5. How about the aftersales support?
A: We will offer on-time response for online inquiries from overseas users. Please feel free to tact us by email, Ali-Trade, WhatsApp, WeChat and SKYPE.
