YX83G3 Industrial Three Phase Filter Terminal Block Connertion EMI Noise Filter
We have the relevant product's certificates,Multipole installation options are available ,product can be customized,working with the top research LABS to provide free diagnostic test.
Typical Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- UPS/SMPS
-- Industrial automation equipment
Technical Specification:
| Item | 3 Phase EMI Filter |
| Model | 3 Phase EMI Filter -YX83G3series |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1A-100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC or 2000VAC |
| Maximum Leakage Current | 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max |
| MOQ | 10pcs |
| Lead Time | 3~15 weekday for Low Pass EMI Filter |
Features:
1. Rated currents from 1 to 1200A.
2. High attenuation performance up to 300 MHz.
3. Voltage rating 520VAC for world wide acceptance
4. Approvals(100A MAX.)
Rule of Nomination:
YX----83-------G3------30A------------T
¦ ¦ ¦ ¦
circuit case current connection
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Leakage current 440V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
|
|
|
|
| YX81G1-1A | 1A | Q | S | T | <1.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX81G1-3A | 3A | Q | S | T | Fig.1 |
| YX81G1-6A | 6A | Q | S | T | Fig.1 |
| YX81G1-10A | 10A | Q | S | T | Fig.1 |
| YX81G1-20A | 20A | Q | S | T | Fig.1 |
| YX81G1-30A | 30A | - | S | T | Fig.1 |
| YX81G2-30A | 30A | - | S | T | <2.0mA | Fig.1 |
| YX81G2-40A | 40A | - | S | T | Fig.1 |
| YX81G3-40A | 40A | - | S | T | <5.0mA | Fig.1 |
| YX81G3-50A | 50A | - | S | T | Fig.1 |
| YX81G3-60A | 60A | - | S | T | Fig.1 |
| YX81G5-80A | 80A | - | S | T | <7.0mA | Fig.1 |
| YX81G5-100A | 100A | - | S | T | Fig.1 |
| YX81G6-200A | 200A | - | S | T | <10.0mA | Fig.1 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block

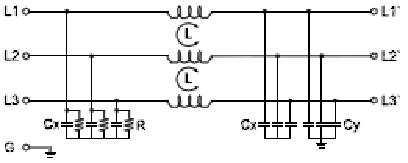

Electrical Schematic:
Fig.1 Standard type
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
