10A High Frequency 300MHz Three Phase Filter M4 Screw Output EMI/RFI Filter
Features of EMI filter:
-- Voltage rating 440 and 520VAC for world wide acceptance
-- General purpose four-wire filtering
-- Rated currents from 1 to 200A
-- Approvals(100A MAX.)
-- High frequency attenuation can reach to 300Mhz
Technical Specification of EMI filter:
| Item | Power line Filter |
| Model | Power line Filter YX-G |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1~1200A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 100 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | USD3.8~88.8/Meter |
| Lead Time | 5~20 weekday |
Typical Applications of EMI filter:
1. Mainframe computer systems
2. High power office equipment
3. UPS/SMPS
4. Automation equipment
Rule of Nomination of EMI filter:
YX-----91---------G1---------10A----------S
¦ ¦ ¦ ¦
circuit case current connection
Tabulates of EMI filter:
| Model No. | Rated Current
@40°C | Terminal Options* | Leakage current 440V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
 |  |  |
| YX91G1-3A | 3A | Q | S | T | <5.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX91G1-6A | 6A | Q | S | T | Fig.1 |
| YX91G1-10A | 10A | Q | S | T | Fig.1 |
| YX91G2-15A | 20A | Q | S | T | Fig.1 |
| YX91G2-20A | 30A | Q | S | T | Fig.1 |
| YX91G2-25A | 30A | - | S | T | Fig.1 |
| YX91G2-30A | 40A | - | S | T | Fig.1 |
| YX91G3-35A | 40A | - | S | T | <7.0mA | Fig.1 |
| YX91G5-50A | 50A | - | S | T | Fig.1 |
| YX91G5-60A | 60A | - | S | T | Fig.1 |
| YX91G5-80A | 80A | - | S | T | <10.0mA | Fig.1 |
| YX91G4-100A | 100A | - | S | T | Fig.1 |
| YX91G6-150A | 150A | - | S | T | <15.0mA | Fig.1 |
| YX91G6-200A | 200A | - | S | T | Fig.1 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Electrical Schematic Of EMI filter:
Fig.1

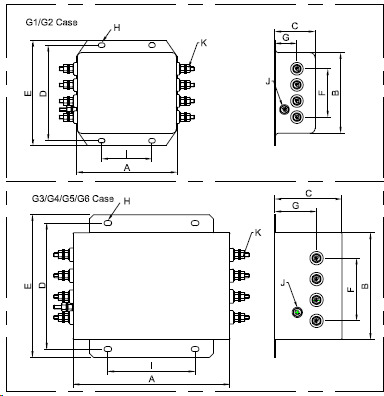

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M |
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | | 45 | M4 | M4/M6 | | |
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | | |
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | | |
| G4 | 200 | 127 | 80 | 150 | 170 | 62 | 49.5 | 6*9 | 117 | M6/M8 | M8/M10 | | |
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | | |
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | | |
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 | ±0.15 | ±2 |

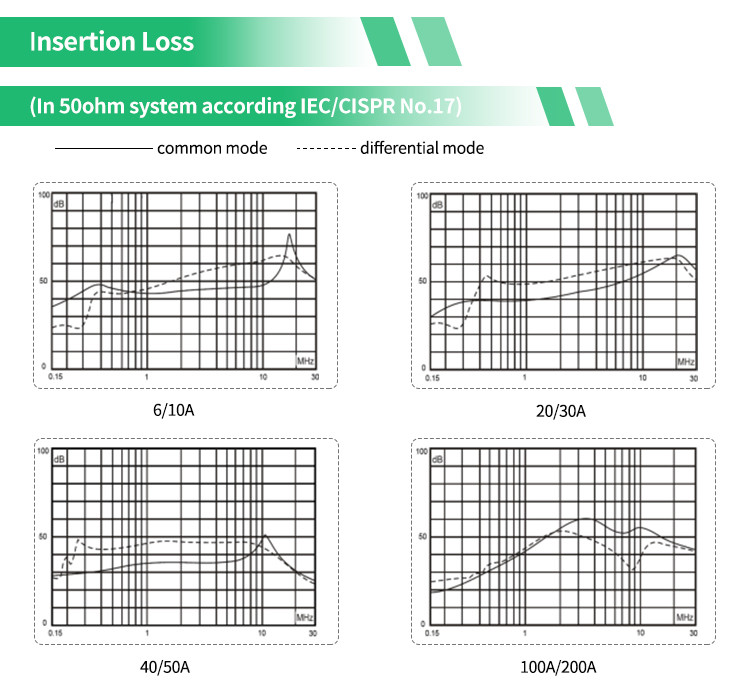

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
