90dB Low Pass EMI Filter 50.60HZ AC Power Noise Filter
6A Low Leakage Current Single Phase Low Pass EMI Filter for Medical Equipment
| Item | Power line Filter |
| Model | Power line Filter YB-E |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~15A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 300pcs |
| Price | Negotiable |
| Lead Time | 10~20 workday |
Features:
-- Rated currents from 1 to 10A
-- General-purpose filtering performance
-- Optional medical versions((R5) type)
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Datacom equipment
-- Office automation equipment
Rule of Nomination:
YB 11 E1 - 6A - Q ( R 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Bleeder resistor(optional) | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
 |  |  |
| YB11E1-1A | 1A | Q | - | W | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11E1-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E1-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E1-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E1-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E1-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E1-10A | 10A | Q | - | W | - | Fig.1 |
| YB11E2-1A | 1A | Q | - | W | - | Fig.1 |
| YB11E2-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E2-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E2-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E2-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E2-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E2-10A | 10A | Q | - | W | - | Fig.1 |
| YB11E3-1A | 1A | Q | - | W | - | Fig.1 |
| YB11E3-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E3-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E3-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E3-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E3-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E3-10A | 10A | Q | - | W | - | Fig.1 |
Medical Type Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options
| Bleeder resistor(optional)R(MΩ) | Medical equipment
5 | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
 |  | |
| YB11E1-1A-x(5) | 1A | Q | - | W | 1 | 5 | <5μA | Fig.2 | 115/250V | 50/60Hz |
| YB11E1-2A-x(5) | 2A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E1-3A-x(5) | 3A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E1-4A-x(5) | 4A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E1-6A-x(5) | 6A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E1-8A-x(5) | 8A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E1-10A-x(5) | 10A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E2-1A-x(5) | 1A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E2-2A-x(5) | 2A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E2-3A-x(5) | 3A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E2-4A-x(5) | 4A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E2-6A-x(5) | 6A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E2-8A-x(5) | 8A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E2-10A-x(5) | 10A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-1A-x(5) | 1A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-2A-x(5) | 2A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-3A-x(5) | 3A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-4A-x(5) | 4A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-6A-x(5) | 6A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-8A-x(5) | 8A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-10A-x(5) | 10A | Q | - | W | 1 | 5 | Fig.2 |
| YB11E3-15A-x(5) | 15A | Q | - | W | 1 | 5 | Fig.2 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
T: Terminal block
Electrical schematic:
Fig.1 Standard type
Fig. 2 R5 type

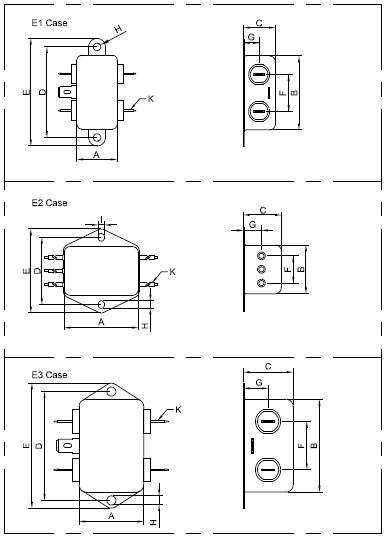

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| E1 | 24 | 44 | 19 | 54.5 | 64.5 | 23 | 9.5 | 4.5 | | | 6.3*0.8 |
| E2 | 44 | 29 | 22 | 40 | 50 | 15 | 8 | 4.5 | 3.5 | | UL1015 |
| E3 | 32 | 46 | 22.5 | 54 | 62 | 24 | 12.5 | 4.5 | | | 6.3*0.8 |
Tolerances
公差 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 |

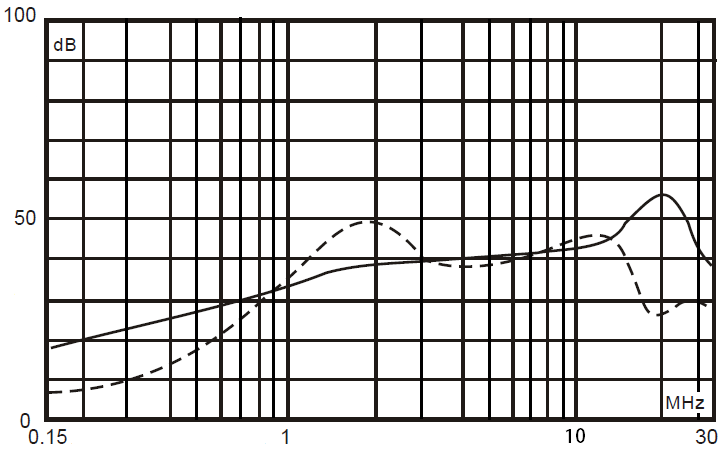

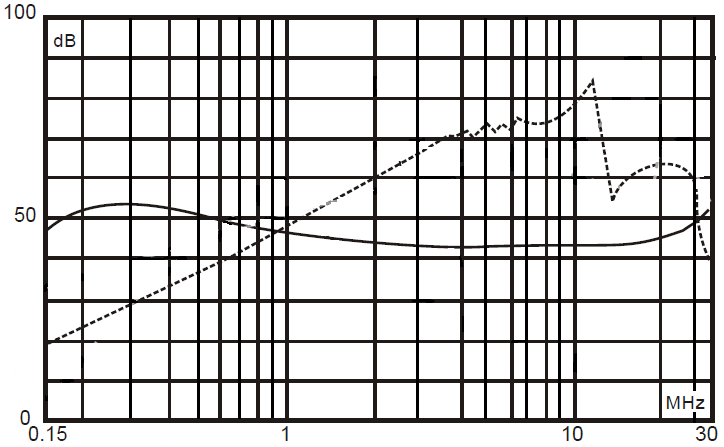

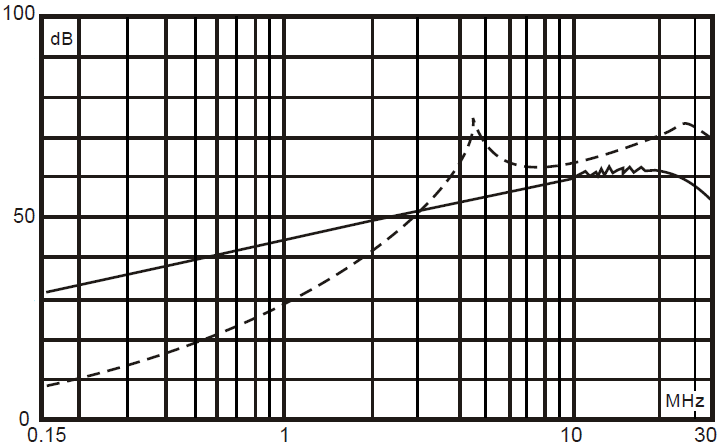

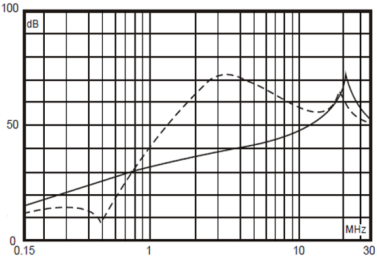

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
1A
3A
6A
8A
10A
