YX91G5 Three Phase Filter 380V Passive EMI Filter Suitable for Industrial Automation
Power Line Filter, Noise Filter, Line Filter, EMI filter, EMC filter
YX91G5 Three Phase Filter:
YX91G5-50A-S is the Three Phase Filter with excellent noise suppression performance.The output can be M4 Screw, Copper Row Or Terminal Block.The frequency range between 150 kHz and 30 MHz.The current can be selected from 10A,20A,30A etc.Compliance with the limit values required under residential and industrial standards.
Features Of Three Phase Four Wire Filter:
1. Good noise attenuation in both forward and reverse directions for common mode and normal mode
2. High reliability designed for industrial equipment usage with three-phase three-wire or three-phase Four-wire filter
3. Various screw terminals output for different amps is designed for easy installation.
4. Compliance with the limit values required under residential and industrial standards.
Typical Applications:
Frequency inverters, motor drives, servo drives, electrical and electronic equipment, automation equipment, inverters and converters, UPS-Systems, frequency converters, power supplies.
Three Phase Filter Specification:
| Item | Three Phase Filter | Rated Current | 50A |
| Model | YX91G5-50A-S | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 150K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 60~90dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 440VAC/60HZ |
| Rated Voltage | 380V/520V | MOQ | 5pcs |
| Lead Time | 7-20 working days | Price | Negotiable |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX93G5-10A | G5 | 10 | M4 Screw |
| YX93G5-20A | G5 | 20 |
| YX93G5-30A | G5 | 30 | Terminal Block |
| YX93G5-40A | G5 | 40 |
| YX93G5-50A | G5 | 50 | Copper bar |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Naming Rule:
| YX | 93 | G5 | - | 50A | - | S |
| ∣ | ∣ | ∣ | | ∣ | | ∣ |
| Three Phase | Circuit | Dimension | | Current | | Output Connection |
| | 93:93 circuit | G5 | | 10A :10 amp | | S:M4 screw |
| | 81-84 Three Wire | | | 20A :20 amp | | T:Terminal block |
| | 91-94 Four Wire | | | 30A :30 amp | | B:Copper bar |

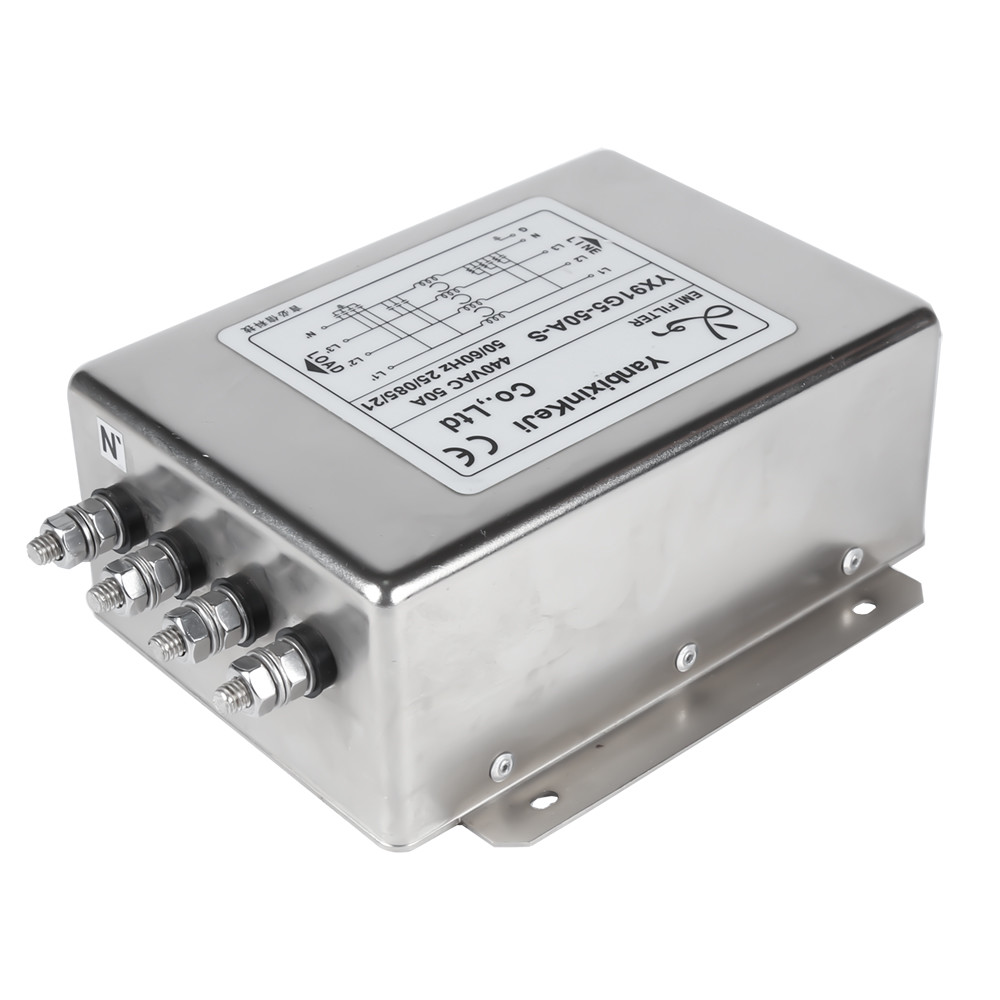

YX93G5-50A-S Product Picture:
