YX84 50A Three Phase Three Line Filter Screw Terminal EMI/RFI Filter For Frequency Converter
Technical Specification:
| Item | YX84G5 Three Phase Filter |
| Model | YX84G5-50A-S |
| Transfer Function | High Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 6A-100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC or 2000VAC |
| Maximum Leakage Current | 250VAC/60HZ 1.4mA Max. 440VAC/60HZ 2.5mA Max |
| Lead Time | 3~15 weekday for Low Pass EMI Filter |
Features:
-- Protection against interference of voltage
-- Industry-standard EMC solution for three-phase PDS filtering
-- Customized products according to customer's requirements.
Typical Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- Energy conversion devices (inverters, converters)
-- Industrial automation equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX84G5-10A | G5 | 10 | Fast-on terminal |
| YX84G5-20A | G5 | 20 |
| YX84G5-30A | G5 | 30 | M4/M6/M8 Screw |
| YX84G5-40A | G5 | 40 |
| YX84G5-50A | G5 | 50 | Terminal block |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Leakage current 440V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YX82G1-1A | 1A | Q | S | T | <1.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX82G1-3A | 3A | Q | S | T | Fig.1 |
| YX82G1-6A | 6A | Q | S | T | Fig.1 |
| YX82G2-10A | 10A | Q | S | T | Fig.1 |
| YX82G2-15A | 15A | Q | S | T | Fig.1 |
| YX82G2-20A | 20A | - | S | T | Fig.1 |
| YX82G3-10A | 10A | - | S | T | <2.0mA | Fig.1 |
| YX82G3-20A | 20A | - | S | T | Fig.1 |
| YX82G3-30A | 30A | - | S | T | <5.0mA | Fig.1 |
| YX82G5-30A | 30A | - | S | T | Fig.1 |
| YX82G5-50A | 50A | - | S | T | Fig.1 |
| YX82G5-60A | 60A | - | S | T | <7.0mA | Fig.1 |
| YX82G4-100A | 100A | - | S | T | Fig.1 |
| YX82G4-150A | 150A | - | S | T | Fig.1 |
| YX82G6-200A | 200A | - | S | T | <10.0mA | Fig.1 |

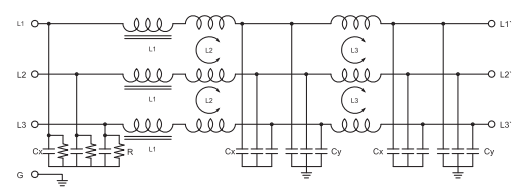

Electrical Schematic:
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L |
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | | 45 | M4 | M4/M6 | |
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | |
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | |
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | |
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | |
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 | |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
