380V G5 3 Phase Filter Screw Terminal High Current EMI/RFI Filter For Industrial Automation
Customized Products RFI Power Filter With 380V, 440V OEM Noise EMI Filter
| Item | YX81G5 Three Phase Filter |
| Model | YX81G5-100A-S |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1~200A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 380VAC/60HZ 2.5mA Max |
| MOQ | 5pcs |
| Price | USD1.5~98.8/Meter |
| Lead Time | 5~15 weekday |
Features:
-- Protection against interference of voltage
-- New connection terminal block, with safety protection
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements
Typical Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- UPS/SMPS
-- Industrial automation equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX81G5-10A | G5 | 10 | M4/M6/M8 screw |
| YX81G5-20A | G5 | 20 |
| YX81G5-30A | G5 | 30 | Terminal block |
| YX81G5-40A | G5 | 40 |
| YX81G5-50A | G5 | 50 | Copper bar |
B: Copper bar
S: Screw lug
T: Terminal block
This nomination and the below informations just for your reference, we will make different part number and parameters according to customer's requests.
If you want to know more, pls email or consult us directly, we are ready to provide the service to you anytime!
Thank you!!!
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Leakage current 440V/50Hz
| Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YX81G5-10A-T | 10A | - | - | T | <1.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX81G5-20A-T | 20A | - | - | T | Fig.1 |
| YX81G5-30A-T | 30A | - | - | T | Fig.1 |
| YX81G5-40A-T | 40A | - | - | T | Fig.1 |
| YX81G5-50A-T | 50A | - | - | T | Fig.1 |
| YX81G5-60A-T | 60A | - | - | T | Fig.1 |
| YX81G5-80A-T | 80A | - | - | T | <2.0mA | Fig.1 |
| YX81G5-100A-T | 100A | - | - | T | Fig.1 |
| YX81G5-120A-T | 120A | - | - | T | <5.0mA | Fig.1 |
| YX81G5-160A-T | 160A | - | - | T | Fig.1 |

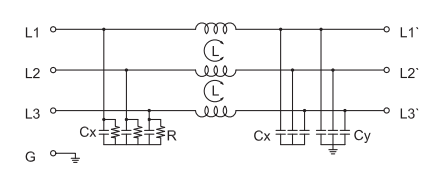

Electrical Schematic:

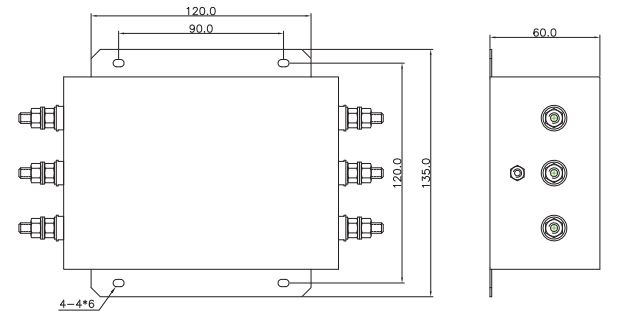

Mechanical Dimension(Unit: mm)

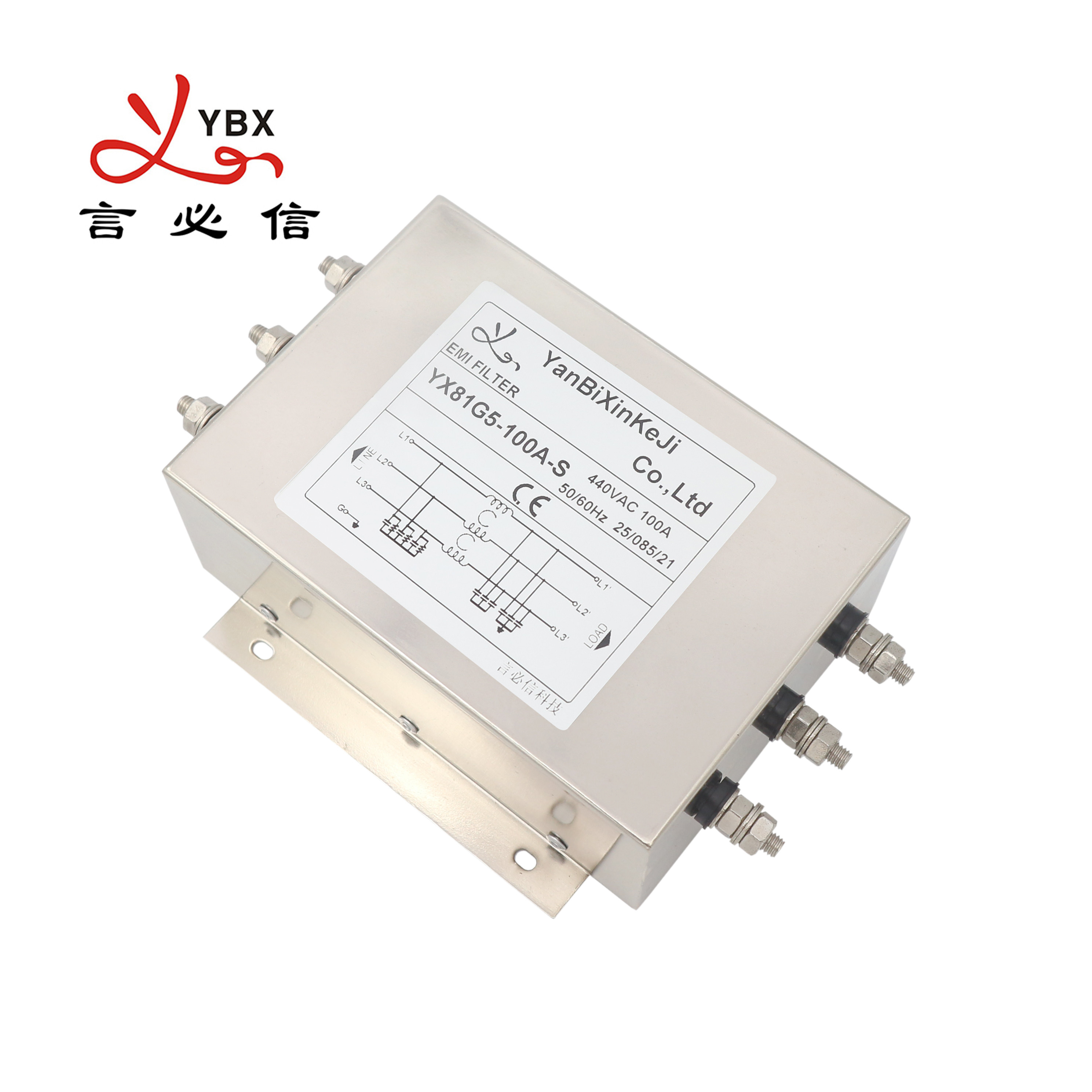

YX81G5-100A-S EMI Filter Picture:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Factory Pictures:
Exhibition Pictures:
