2000VAC 2250VDC EMI Filter AC Line Noise Filter Surface Mount
6A Low Leakage Current Single Phase Low Pass EMI Filter for Medical Equipment
| Item | Power line Filter |
| Model | YB12E3-10A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~20A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiable |
| Price | Negotiable |
| Lead Time | 10~20 working days |
Features:
-- Rated currents from 1 to 10A
-- General-purpose filtering performance
-- Optional medical versions((R5) type)
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Datacom equipment
-- Office automation equipment
Rule of Nomination:
YB 11 E1 - 6A - W/Q ( R 5 )
¦ ¦ ¦ ¦ ¦
circuit case current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:

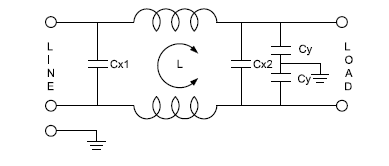

Fig.1 Standard type

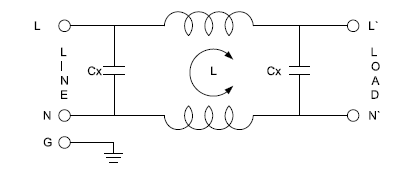

Fig. 2 R5 type

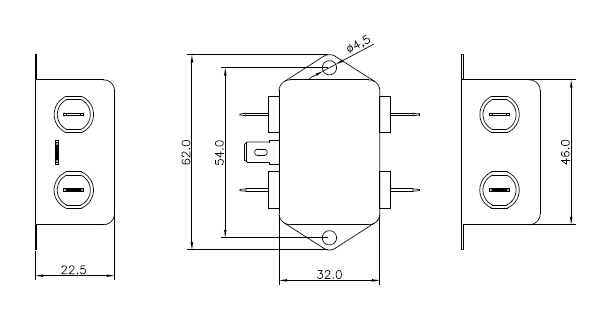

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
1A
3A
6A
8A
10A
