380V/440V 10A~100A 3 Phase EMC Filter AC Power Line Filter For Ion Implanter
Description:
The three phase filter is a passive two-way network, one end of which is the power source and the other end is the load. The principle of the power filter is one kind-impedance adaptation network: the greater the impedance adaptation between the input and output sides of the power filter and the power and load sides, the more effective the attenuation of electromagnetic interference
Feature:
1, Protection against the interference of voltage.
2, Industry-standard EMC solution for three-phase PDS filtering
3, Customized products according to customer's requirements
Typical Applications:
1, For photovoltaic systems and industrial applications
2, Three-phase motor drives
3, Energy conversion devices (inverters, converters)
Specification:
| Item | EMI Filter | Rated Current | 40A |
| Model | Y82G5-40A-S | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 60~90dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 250-440VAC/60HZ |
| Rated Voltage | 440V/250V | MOQ | Negotiable |
| Lead Time | 7-20 working days | Price | Negotiable |
Application Of EMI Power Filter
Public security, renewable energy, touch screen, general dimmer; specific industries are medical treatment and health care, industrial and commercial transportation, machinery industry, data communication, lighting, telecommunications and automation and control
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX81G5-30A | G5 | 30 | M4/M6/M8 screw |
| YX81G5-40A | G5 | 40 |
| YX81G5-50A | G5 | 50 | Terminal block |
| YX81G5-80A | G5 | 80 |
| YX81G5-100A | G5 | 100 | Copper bar |
B: Copper bar
S: Screw lug
T: Terminal block
Electrical Schematic:

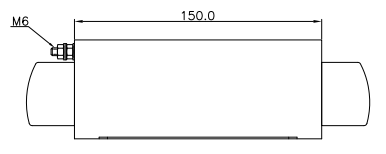

Mechanical Dimension(Unit: mm)
