YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi Filter

  • 1
  • 2

Brand Name : YBX

Model Number : YB21D3-6A-Q

Certification : cUL, TUV, CQC, CE, ROHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter

Delivery Time : 20-25 days

Packaging Details : 56.5*28.5*22.5cm

Brand : YBX

Item : YB-D Power Line Filter

Rated current : 1A-3A

Case : Metal

Transfer Function : Low Pass

Certificate : ISO9001 cUL TUV CQC CE ROHS

Contact Now

Two-stage Single Phase Emi Filter High Efficiency Power Line Filter



Two-stage Single Phase Filter

YB21D3-6A-Q is the Single Phase Filter with excellent high frequency attenuation performance.The output can be Fast-on Terminal, Wire, M4 Screw, Or Terminal Block.The frequency range between 150 KHz and 30 MHz. Compliance with the limit values required under residential and industrial standards.



Feature Of Power Line Filter:

1. High EMI attenuation: YB22 have designed two-stage filtering, with good differential and common-mode attenuation.This helps ensure that electronic systems operate with minimal interference.

2. Low leakage current: YB21D3-6A-Q Emi Filter, rated current 6A, minimum leakage current 0.4mA, designed with low leakage current to help reduce power consumption and maximize efficiency.

3. Compact size:The YB-D series EMI filters are designed to be compact in size, which makes it easy to integrate into electronic systems with limited space.



Applications Of Single Phase Emi Filter:

-- Electrical and electronic equipment

-- Medical equipment

-- Industrial automation

-- Office automation and datacom equipment

-- Home appliances



Technical Specification:

Item Two-stage emi filter
Model YB21D3-6A-Q
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 150K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 50pcs



Rule of Nomination:

YB 21 D3 - 6A - Q

Single Phase Circuit Dimension   Current   Output Connection
  21:21 circuit D3   3A :3 amp   Q:Fast-on terminal
        6A :6 amp   S:M4 screw
        10A :10 amp   W:Wire



Filter Selection Table:

Part No. Case Rated Currents (A) Output Connections
YB21D3-3A D3 3 Wire
YB21D3-6A D3 6
YB21D3-10A D3 10 M4 Screw
YB21D3-15A D3 15
YB21D3-20A D3 20 Fast-on terminal

YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi Filter*Q: Fast-on 6.35x0.8mm YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi Filter S: Screw lug YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi FilterW: UL1015 18awg



YB21D3-6A-Q EMI Filter Picture:

YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi Filter

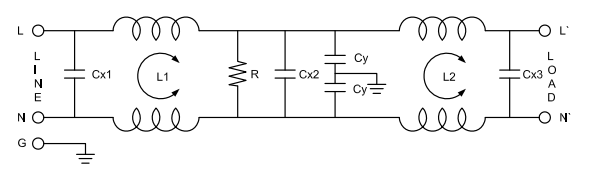

Electrical Schematic:

YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi Filter

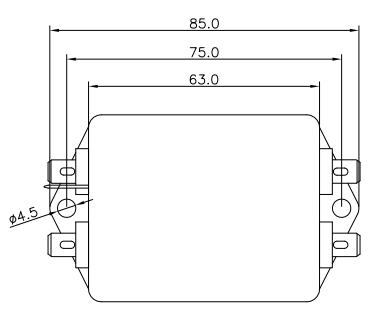

Mechanical Dimension(Unit: mm)

YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi FilterYB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi Filter

YB21D3-6A-Q Power Line Filter High Efficiency Two-stage Single Phase Emi Filter
