YB11A1 IEC Inlet Filter Single Phase Emi Filter Suitable For 220V Voltage Equipment
Power Line Filter, Noise Filter, Line Filter, EMI filter, EMC filter
A1 Series IEC Inlet Filter:
YB11A1-3A-W is the IEC Inlet Filter with excellent noise suppression performance.The output can be fast-on terminals, solder lug terminals, or different lengths of lead-wire.The frequency range between 150 kHz and 30 MHz.The current can be selected from 1A,3A,6A,8A,10A.
Features Of IEC Inlet Filter:
1. The YB-A series filter integrates an IEC inlet and filter with excellent noise suppression performance and compact size.
2. The rated current can be offered up to 10 amps.
3. Various output selections such as fast-on terminal,wire.
4. Low leakage current version upon requested.
5. Custom-specific versions are available on request.
Applicatin Of IEC Inlet Filter:
Applications comprising household equipment, medical equipment, test and measurement equipment, datacom equipment, automation equipment.
Technical Specification:
| Item | IEC Inlet Filter |
| Model | YB11A1-3A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC 250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 100pcs |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11A1-1A | A1 | 1 | Fast-on terminal |
| YB11A1-3A | A1 | 3 |
| YB11A1-6A | A1 | 6 | Solder Lug Terminals |
| YB11A1-8A | A1 | 8 |
| YB11A1-10A | A1 | 10 | Wire |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Naming Rule:
| YB | 11 | A1 | - | 3A | - | W |
| ∣ | ∣ | ∣ | | ∣ | | ∣ |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | A1 | | 1A :1 amp | | Q:fast-on tab 250 |
| | | | | 3A :3 amp | | W:wire |
| | | | | 6A :6 amp | | S:Solder Lug Terminals |

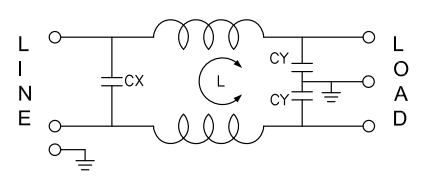

Electrical Schematic:

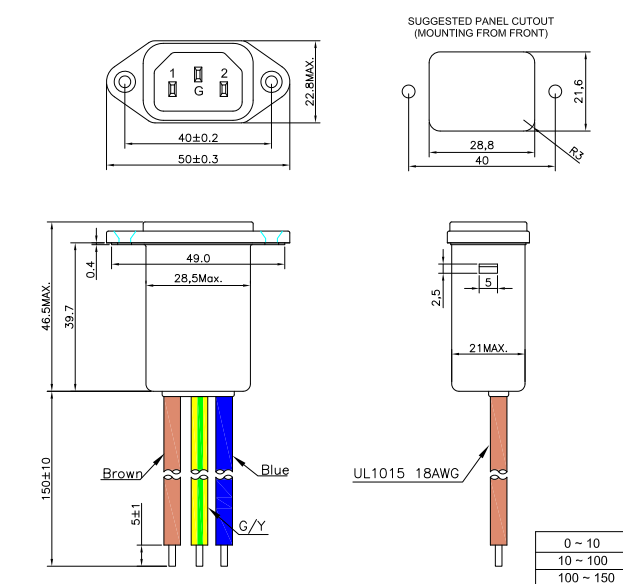

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| A1 | 58 | 28.5 | 21 | 50 | 40 | 22.4 | 12.7 | 11.8 | 13.5 | 3.2 | 6.35*0.8 | | | |
| A2 | 58 | 28.5 | 21 | 52 | 40 | 25 | 12.7 | 11.8 | 13.5 | 3.2 | 6.35*0.8 | | | |
Tolerances
| ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | | | |
