110V/220V IEC Inlet EMI Filter 3A Power Line Filter For Power Input Device
YB-A IEC C14 Inlet Filter:
YB11A1-3A-W is a single socket inlet filter, the power input modules comply with IEC 60320-1 safety standards to protect the safety of electricity, fast installation, plug and play, suitable for 110V/250V voltage, the current can be selected 1A, 3A, 6A, 8A, 10A.
Features Of IEC Inlet EMi Filter:
1. High performance and high attenuation power filters with IEC 320 socket
2. Wide frequency range :IEC inlet EMI filters are effective in a wide frequency range, usually from 150KHz to 30MHz.
3. Low leakage current: The lowest leakage current of this IEC Inlet EMI Filter is 0.05mA.
4. Customized products according to customer's requirements.
Application Of IEC Inlet Power Filter:
1. Specially designed for LCD and PDP TV,medical applications,general electrical appliances.
2. Small and medium-sized machines and household equipment.
3. Test and measurement equipment.
4. Medical equipment
YB-A Inlet Filter Specification:
| Item | YB-A IEC Inlet Filter |
| Model | YB11A1-3A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 30~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC~250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3mA Max 250VAV/60HZ 0.6mA Max |
Naming Rule:
| YB | 11 | A1 | - | 3A | - | W |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | A1 | | 3A :3 amp | | Q:fast-on tab 250 |
| | | | | 6A :6 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11A1 | A1 | 1 | Fast-on terminal |
| YB11A1 | A1 | 3 |
| YB11A1 | A1 | 6 | Wire |
| YB11A1 | A1 | 8 |
| YB11A1 | A1 | 10 | Solder Lug Terminals |

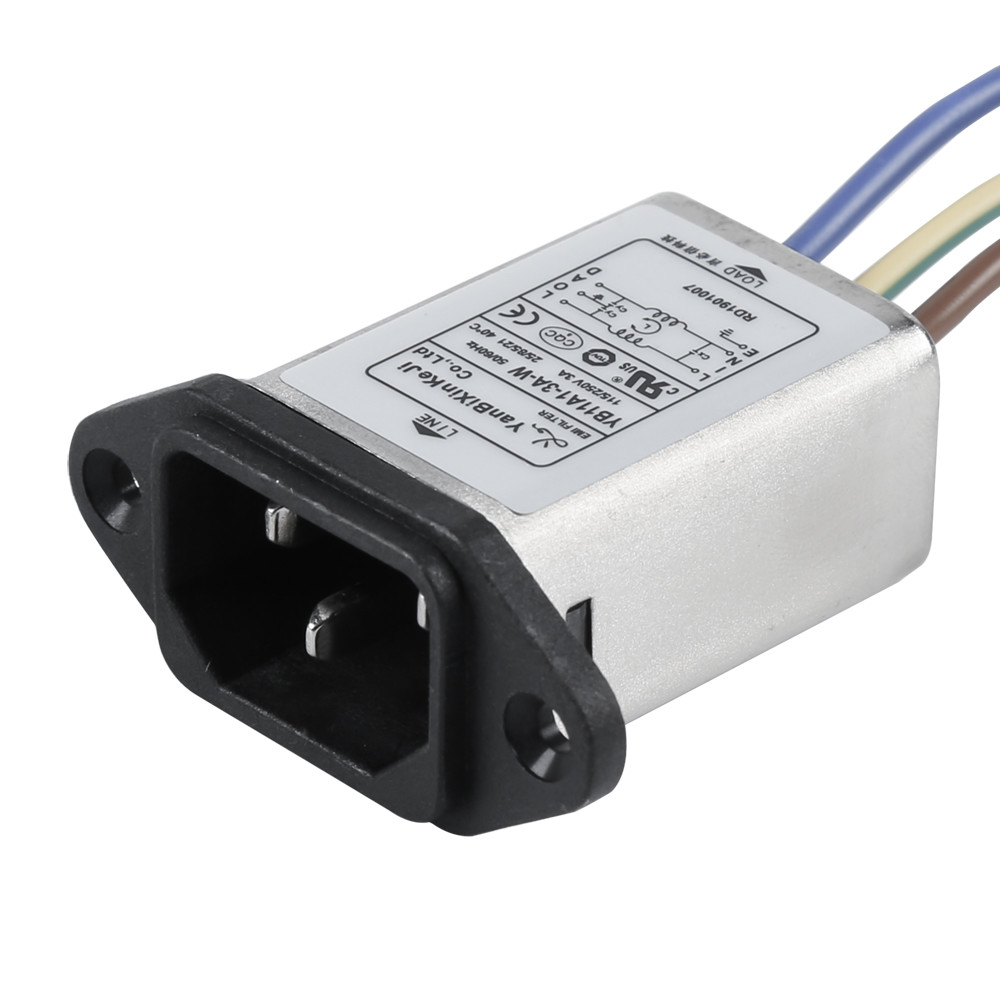

YB11A1-3A-W EMI Filter Picture:

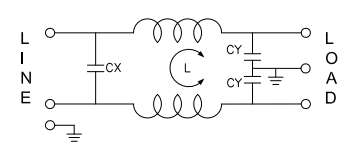

Electrical Schematic:

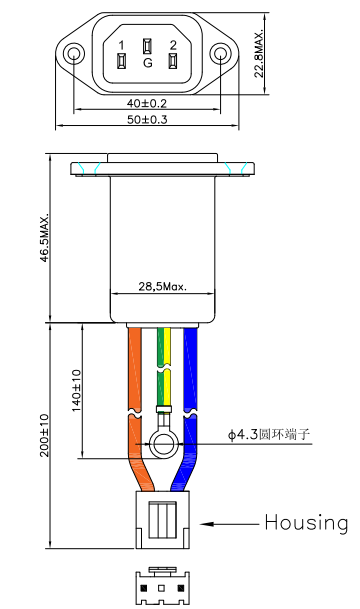

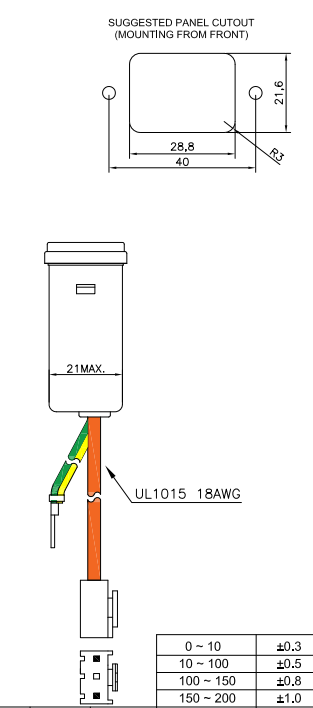

Mechanical Dimension(Unit: mm)
