YB12E4-20A-S Power Line Filter M4 Screw Terminal 20A Single Phase EMI Filter For Measuring Equipment

20A One-stage Power Line Filter:

YB12E4-20A-S is the Single Phase Filter with excellent high frequency attenuation performance.The output can be Fast-on Terminal, Wire, M4 Screw, Or Terminal Block.The frequency range between 150 KHz and 30 MHz. Compliance with the limit values required under residential and industrial standards.

Features Of Single Phase Filter:

1. Good noise attenuation in both forward and reverse directions for common mode and normal mode.
2. High reliability designed for Power supply equipment usage with Single Phase Filter.
3. Various screw terminals output for different amps is designed for easy installation.
4. Compliance with the limit values required under residential and industrial standards.

Typical Applications:

Electrical and electronic equipment, Household equipment, Automation equipment, Fitness machine, and Medical equipment.

EMI Filter Parameter:

Item	Power line Filter
Model	Power line Filter YB-E4
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~20A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	100pcs

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB12E4-6A	E4	6	Wire
YB12E4-8A	E4	8	Wire
YB12E4-10A	E4	10	M4 Screw
YB12E4-15A	E4	15	M4 Screw
YB12E4-20A	E4	20	Fast-on terminal

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

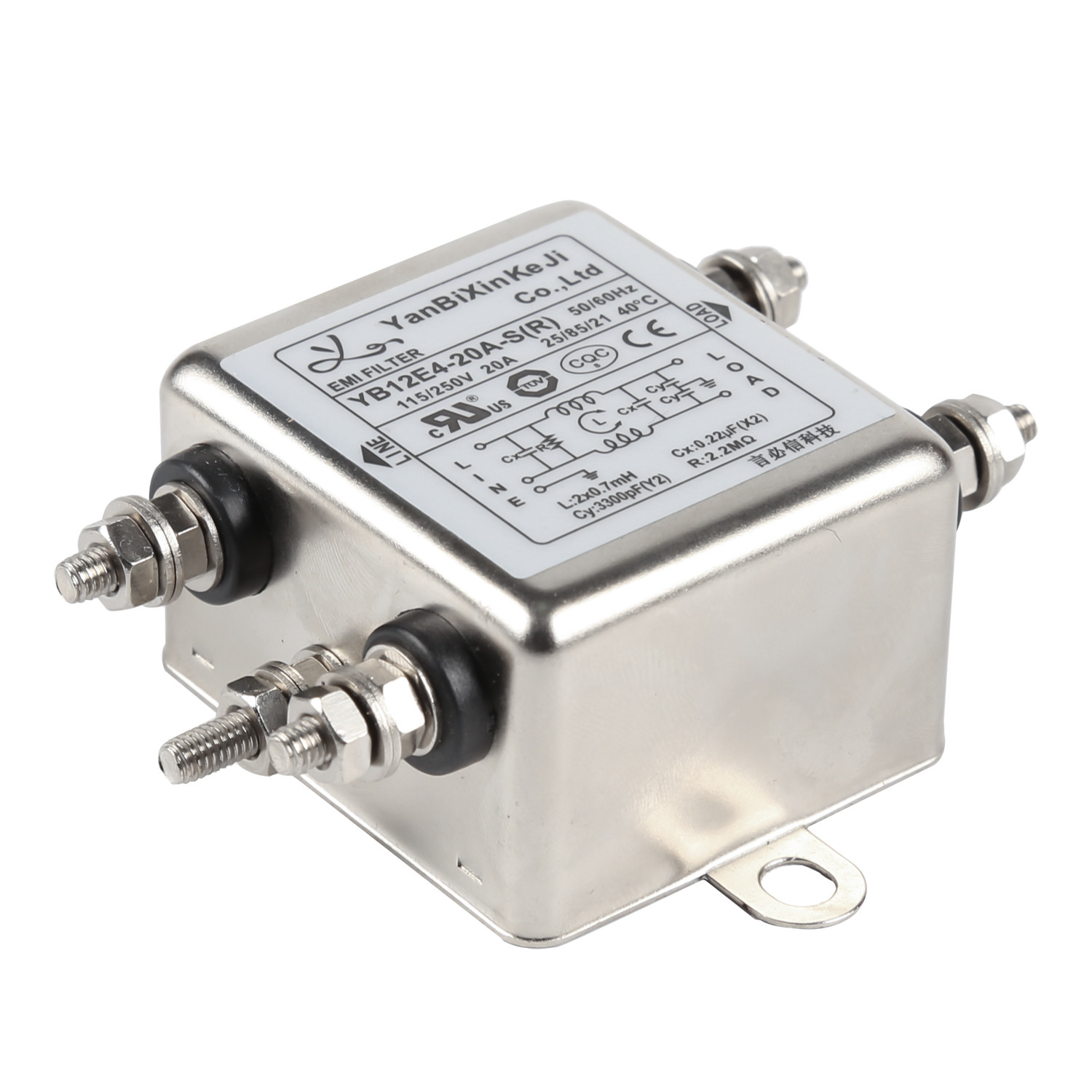

YB12E4-20A-S(R) Product Picture:

YB12E4 Power Line Filter M4 Screw Terminal 20A Single Phase EMI Filter

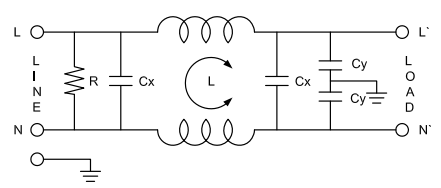

Electrical Schematic:

YB12E4 Power Line Filter M4 Screw Terminal 20A Single Phase EMI Filter

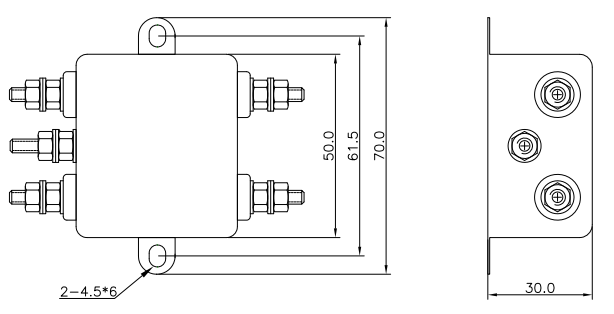

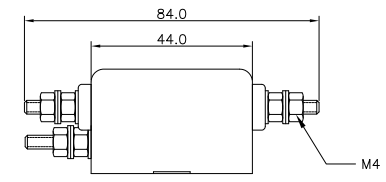

Mechanical Dimension(Unit: mm)

YB12E4 Power Line Filter M4 Screw Terminal 20A Single Phase EMI Filter

Case	E3	E4	D1	D2	D3	D4	D5	F1	F2	F3	F4	Tolerances

A	32	44.5	51	51	63	63	73	72	98	120	150	±1

B	46	50.5	33	51	51	51	56	65	80	100	105	±1

C	22.5	30	29	21	29	38	44.5	39	41	50	60	±1

D	54	61.5	60	63	75	75	87	75	95	115	120	±0.15

E	62	70.5	68	72	85	85	98	45	50	80	90	±1

F	24	28	20	27	25	27	30	35	50	60	60	±0.5

G	12.5	10.5	10	10	10	15.5	16	22	24	26	35	±0.5

H	4.5	6	4.5	4.5	5	4.5	4.5	4.2	4.2	4*6	4*6	±0.15

I		4.5						4.2*6.2	4.2*6.2	4*6	4*6	±0.15

J								M4/M6	M4/M6	M4/M6	M4/M6

K	6.3*0.8	6.3*0.8	UL 1015	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	M4	M4	M4	M4	±0.15

L								35	50	60	60	±2

YB12E4 Power Line Filter M4 Screw Terminal 20A Single Phase EMI Filter
