YB22D2 Single Phase Noise Filter 220V 10A Power EMI Filter For Power Supply Equipment

Product Categories

Shenzhen Yanbixin Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

YB22D2 Single Phase Noise Filter 220V 10A Power EMI Filter For Power Supply Equipment

Brand Name : YBX

Model Number : YB22D2-10A-W

Certification : cUL, TUV, CQC, CE, ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 15-25 days

Packaging Details : 56.5*28.5*22.5cm(one box)

Product : Single Phase Noise Filter

Case : Metal Case

Current : 1A 3A 6A 8A 10A

Brand : Yanbixin

Environmental Temperature : 40°C

Rated voltage : 115VAC/250VAC

Impedance : 50 Ohms

Mounting Type : Surface Mount

Contact Now

YB-D Dual-stage Single Phase Noise Filter 10A Wire Output EMI Filter

Single Phase Noise Filter:

YB22D2-10A-W is a two-stage single phase filter with wire output for fast installation, meets internal emission standards for single-phase power applications. Compact and small-size design for space and cost saving, EMI noise suppression, high-current and high-voltage EMI filtering.

Features Of Single Phase Filter:

-- The rated current can be offered from 1 to 200 amps.
-- Various output selections such as M4 screw terminal,wire and terminal block.
-- Designed one stage enhanced filtering to prevent the power supply may produce interference
-- The compact size can be applied to various situations.
-- There are a variety of parts and combinations to meet different customer's EMC tests

EMI Power Filter Application:

1. Electrical and electronic equipment

2. Medical equipment

3. Datacom equipment

4. Office automation equipment

Technical Specification:

Item	Dual-stage single phase filter
Model	YB22D2-10A-W
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	10~30dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 1.4mA Max
MOQ	10pcs

Naming Rule:

YB	22	D2	-	10A	-	W
\|	\|	\|		\|		\|
Single Phase	Circuit	Dimension		Current		Output Connection
	22:22 circuit	D2		10A :10 amp		Q:fast-on tab 250
				20A :20 amp		W:wire
				30A :30 amp		S:M4 screw

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB22D2-6A	D2	6	Fast-on terminal
YB22D2-8A	D2	8	Fast-on terminal
YB22D2-10A	D2	10	Wire
YB22D2-15A	D2	15	Wire
YB22D2-20A	D2	20	M4 screw

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

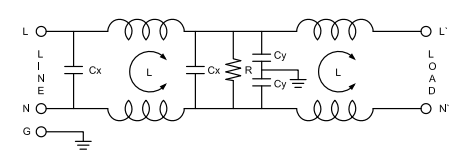

Electrical Schematic:

YB22D2 Single Phase Noise Filter 220V 10A Power EMI Filter For Power Supply Equipment

Mechanical Dimension(Unit: mm)

YB22D2 Single Phase Noise Filter 220V 10A Power EMI Filter For Power Supply Equipment

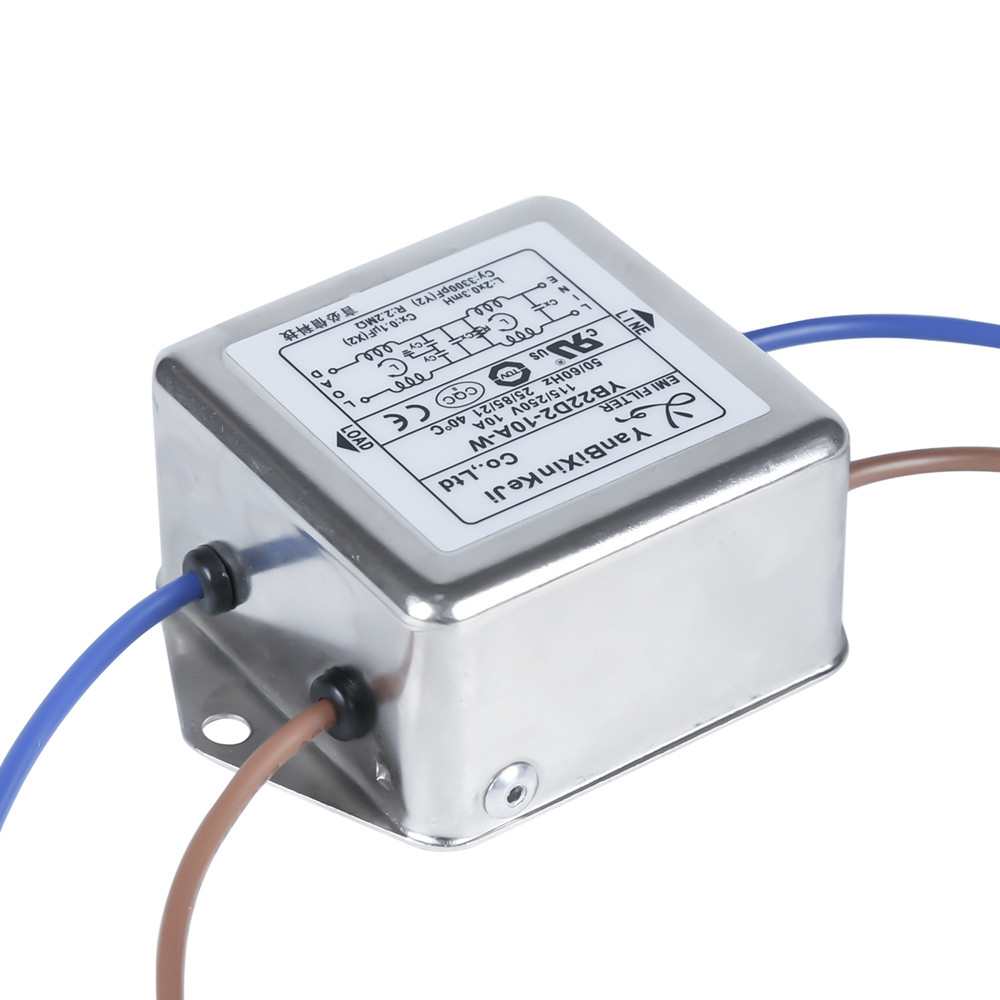

YB22D2-10A-W EMI Filter Picture:
