Terminal Block Three Phase Filter High Performance EMI/RFI Filter For Servo Motor

Brand Name : YBX

Model Number : YX83G3-30A-T

Certification : cUL, ENEC, CE, ROHS, ISO

Place of Origin : China

MOQ : 5pcs

Price : Negotiable

Supply Ability : 2000pcs per month

Delivery Time : 15-25 days

Packaging Details : 56.5*28.5*22.5CM

Voltage : 250V/440V

Current : 1A-200A

Payment Terms : T/T

Frequency : 50/60HZ

Line to Line : 1450VDC

Line to Ground : 2250VDC or 2000VAC

MOQ : 1pcs

Certificate : cUL ENEC ISO9001 CE ROHS

Contact Now

Terminal Block Three Phase Filter Low Pass EMI/RFI Filter For Servo Motor

Terminal Block Three Phase Filter:

YX83G3-30A-T is the three phase filter.High reliability designed for industrial equipment usage with Three-phase Three-wire filter or Three-phase Four-wire filter. Various screw terminals output for different amps is designed for easy installation. Typical applications in testing and measuring equipment, automation equipment, servo drives, lighting, telecom equipment, frequency inverters, motor drives and so on.

Features Of Three Phase Filter:
1. Good noise attenuation in both forward and reverse directions for common mode and normal mode.
2. High reliability designed for industrial equipment usage with 3-Phase 3-Wire and 3-Phase 4-Wire.
3. The rated current can be offered from 10 to 20 amps.
4. Various screw terminals output for different amps is designed for easy installation.
5. Custom-specific versions are available on request.

Technical Specification:

Rated Voltage: 250/440VAC
Rated Currents: 10A ~ 200A
Operating Frequency: 50/60Hz
Hipot Rating (Line-to-Line): 1450VDC
Hipot Rating (Line-to-Ground): 2250VDC
Operating Temperature: -25 ~ +85°C
Safety Compliance: CE

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YX83G3-10A	G3	10	Fast-on terminal
YX83G3-15A	G3	15	Fast-on terminal
YX83G3-20A	G3	20	Wire
YX83G3-30A	G3	30	Wire
YX83G3-40A	G3	40	M4 Screw/M6 Screw
YX83G3-50A	G3	50	M4 Screw/M6 Screw

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

Naming Rule:

YX	83	G3	-	30	-	T
∣	∣	∣		∣		∣
Three Phase	Circuit	Dimension		Current		Output Connection
	83:83 circuit	G3		10A :10 amp		Q:fast-on tab 250
				20A :20 amp		S:M4 screw
				30A :30 amp		T:Terminal block

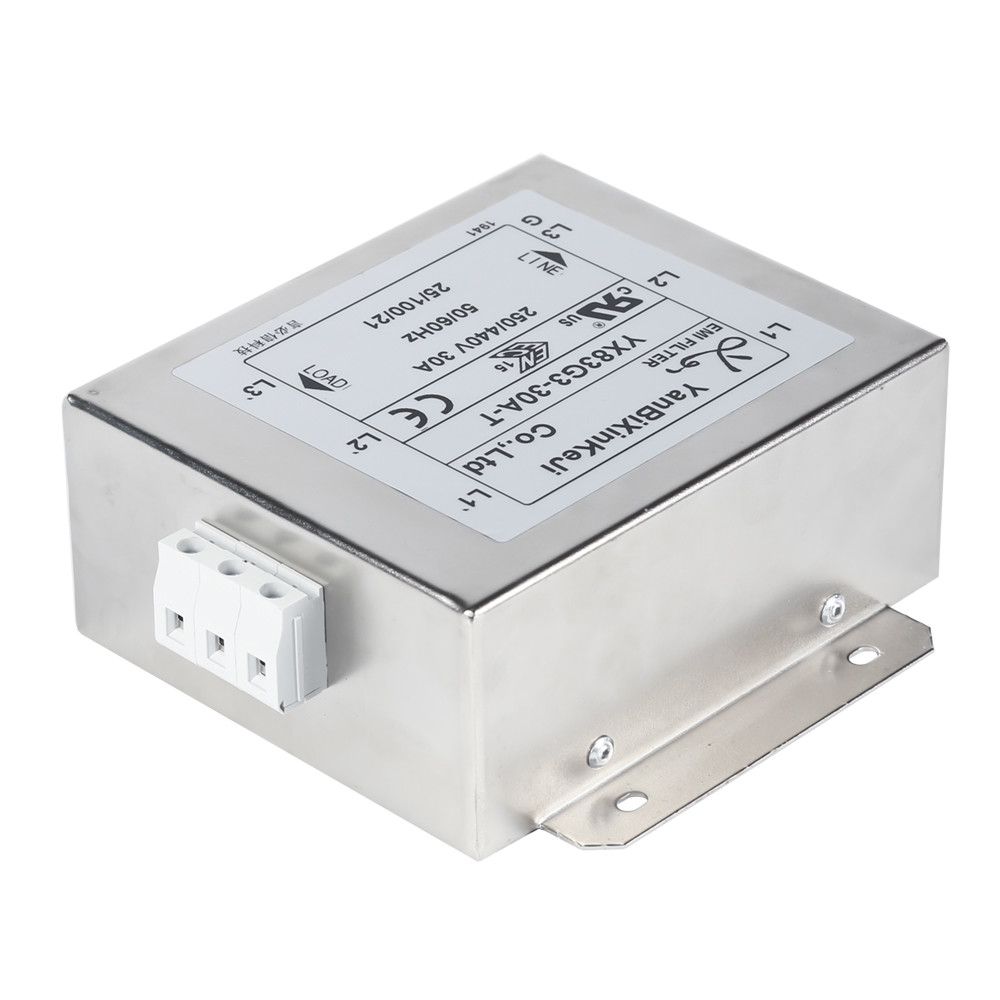

YX83G3-30A-T Filter Picture:

Electrical Schematic:

Terminal Block Three Phase Filter High Performance EMI/RFI Filter For Servo Motor

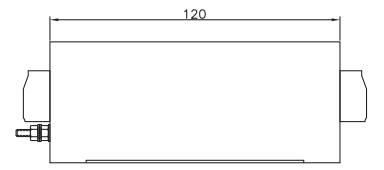

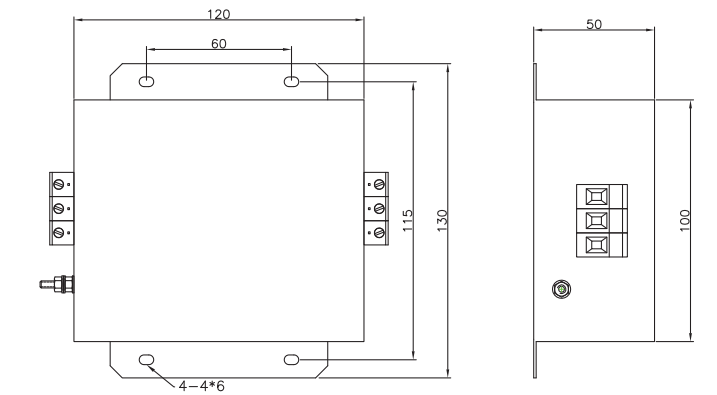

Mechanical Dimension(Unit: mm)

Case	A	B	C	D	E	F	G	H	I	J	K	L	M

G1	72	65	39	75	85	35	22		45	M4	M4/M6

G2	98	80	40	95	105	50	20	4.5*6.5	50	M4	M4/M6

G3	120	100	50	115	130	50	28	4*6	60	M4	M4/M6

G4	200	127	80	150	170	62	49.5	6*9	117	M6/M8	M8/M10

G5	150	105	60	120	135	55	35	4*6	90	M6	M8

G6	260	170	100	196	220	85	65	8*12	172	M8	M10

Tolerances	±1	±1	±1	±0.15	±1	±0.5	±0.5	±0.15	±0.15		±0.15	±0.15	±2
