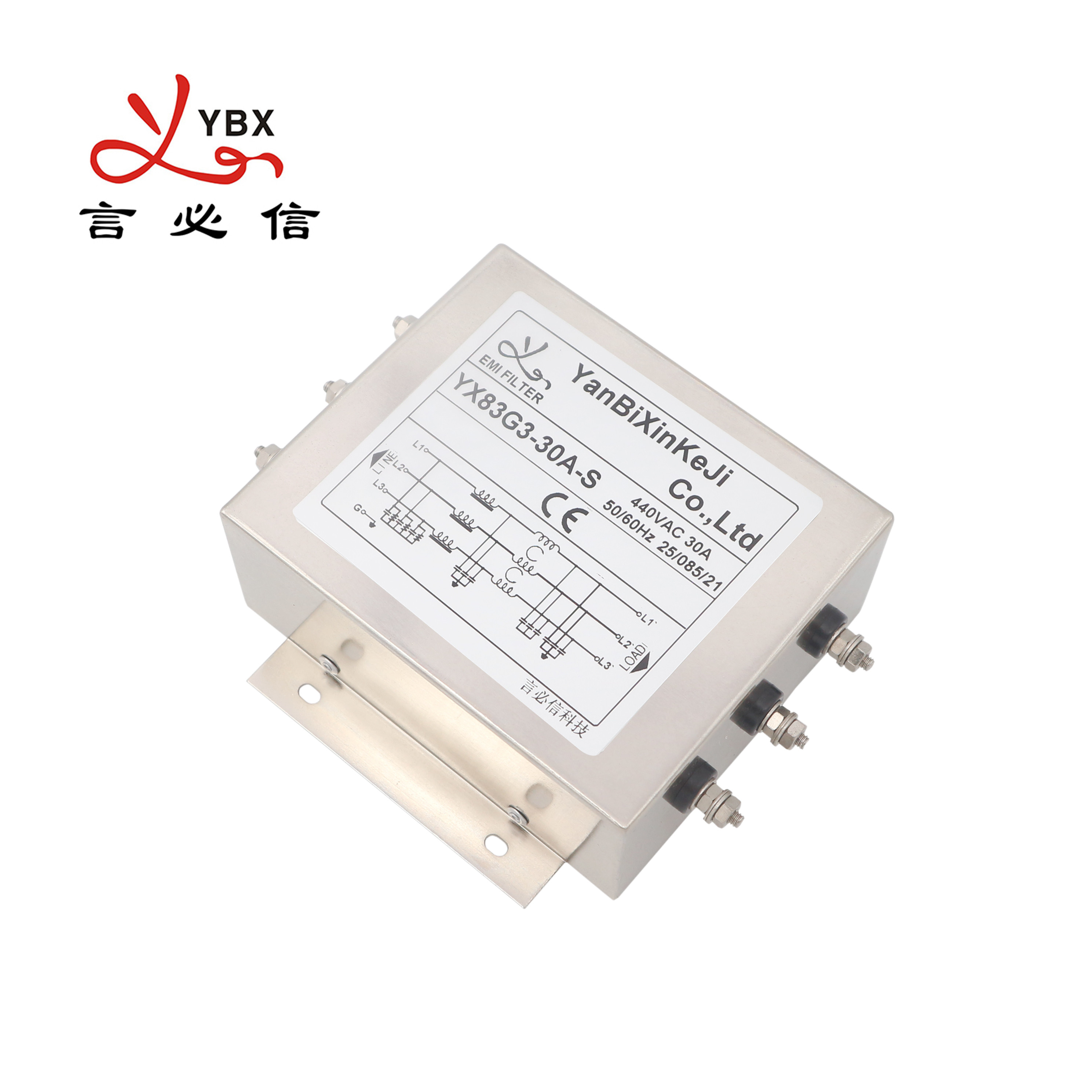

30A Three-Phase Filter M4 Screw Output EMI Filter For High Power Industrial Equipment
Technical Specification:
| Item | 3 Phase EMI Filter |
| Model | YX83G3-30A-S |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1A-100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC or 2000VAC |
| Maximum Leakage Current | 115VAC/60HZ 1.4mA Max. 250VAC/60HZ 2.5mA Max |
| MOQ | 5pcs |
| Price | USD3.8~88/Meter |
| Lead Time | 3~15 weekday for Low Pass EMI Filter |
Features:
1. It is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc
2. Used as a main input filter, YX92 filters can keep the system reliable by restrain the conducted interference
3. Customized products according to customer's requirements
4. This power line filters are designed for high performance shielded rooms, insertion loss is more than 100dB from 14KHz to 40GHz.We can offer different type specification power filters, with DC and AC
Typical Applications:
-- Mainframe computer systems
-- High power office equipment
-- UPS/SMPS
-- Automation equipment
Rule of Nomination:
YB----83-------G3-------30A---------S
¦ ¦ ¦ ¦
circuit case current connection
YX83G3-30A-S EMI Filter:
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Leakage current 440V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YX92G1-3A | 3A | Q | S | T | <5.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX92G1-6A | 6A | Q | S | T | Fig.1 |
| YX92G2-10A | 10A | Q | S | T | Fig.1 |
| YX92G2-15A | 15A | Q | S | T | Fig.1 |
| YX92G2-20A | 20A | - | S | T | Fig.1 |
| YX92G3-25A | 25A | - | S | T | Fig.1 |
| YX92G3-30A | 30A | - | S | T | Fig.1 |
| YX92G5-30A | 30A | - | S | T | <10.0mA | Fig.1 |
| YX92G5-40A | 40A | - | S | T | Fig.1 |
| YX92G5-50A | 50A | - | S | T | Fig.1 |
| YX92G4-100A | 100A | - | S | T | <20.0mA | Fig.1 |
| YX92G6-180A | 180A | - | S | T | Fig.1 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Electrical Schematic:
Fig.1
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M |
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | | 45 | M4 | M4/M6 | | |
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | | |
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | | |
| G4 | 200 | 127 | 80 | 150 | 170 | 62 | 49.5 | 6*9 | 117 | M6/M8 | M8/M10 | | |
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | | |
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | | |
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 | ±0.15 | ±2 |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
