Yanbixin 8A 250VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch

Brand Name : YBX

Model Number : YB11C12-8A-Q

Certification : cUL, TUV, CQC, CE, ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 20-25 days

Packaging Details : 56.5*28.5*22.5cm

Item name : Three In One Socket Filter

Rated current : 1A-10A

Rated voltage : 115V/220VAC

Operating Frequency : 50/60HZ

Line to Line : 1450DVC

Leakage Current : ≤1.5mA

Port : Shenzhen

Application : Power Supply, Lighting, Home Appliances

Contact Now

1A-8A 220VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch

Power Entry Module Filter:

YB11C12-8A-Q is the three in one socket filter, includes socket, switch and fuse. The power input module compliant with IEC 60320-1 safety standard, plug and play, suitable for 110V/250V voltage, current selectable 1A, 3A, 6A, 8A, 10A.

Features:

1. High performance and high attenuation power filters with IEC 320 socket

2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing

3. There are a variety of parts and combinations to meet different customer's EMC tests

4. Customized products according to customer's requirements

Typical Applications:

-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances

-- Medical equipment

-- Test and measurement equipment

-- Small and medium-sized machines and household equipment

YB11C12-8A-Q EMI Filter Specification:

Item	Power Entry Module Filter
Model	YB11C12-8A-Q
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150KHz-30MHz
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	100pcs

Naming Rule:

YB	11	C12	-	8A	-	Q
\|	\|	\|		\|		\|
Single Phase	Circuit	Dimension		Current		Output Connection
	11:11 circuit	C12		6A :6 amp		Q:fast-on tab 250
				8A :8 amp		W:wire
				10A :10 amp		S:Solder Lug Terminals

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB11C12	C12	1	Fast-on terminal
YB11C12	C12	3	Fast-on terminal
YB11C12	C12	6	Wire
YB11C12	C12	8	Wire
YB11C12	C12	10	Solder Lug Terminals

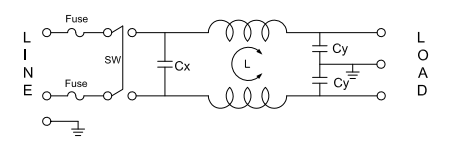

Electrical Schematic:

Yanbixin 8A 250VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch

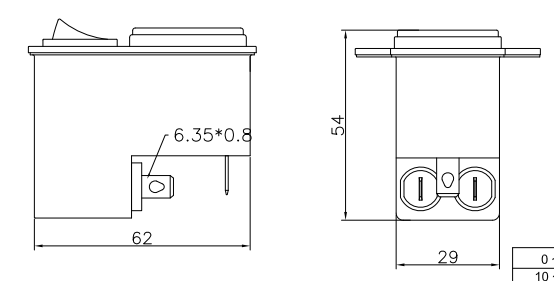

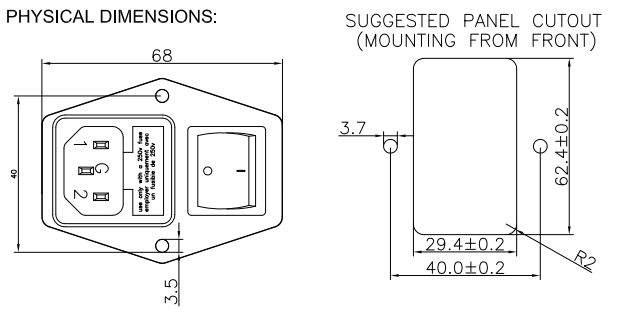

Mechanical Dimension(Unit: mm)

Yanbixin 8A 250VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch

Case

C11/C12

15.5

3.7

6.35*0.8

Tolerances

±1

±0.15

±1

±0.5

±1

±0.15

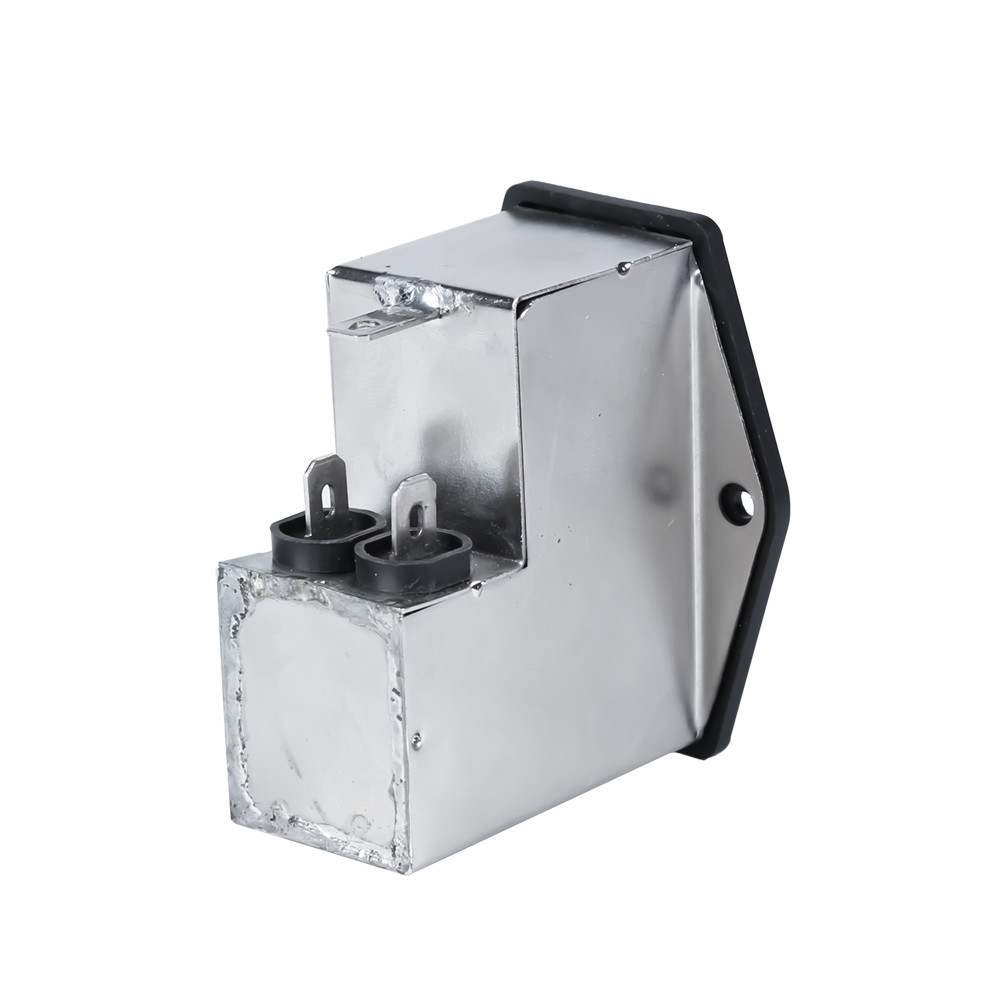

YB11C12-8A-Q IEC Inlet Filter:

Yanbixin 8A 250VAC Power Enrty Module Filter IEC C12 Inlet EMI Filter For Power Switch
