Yanbixin IEC Inlet Filter 1A-10A Wire Terminal Power Line Filter YB11A7-6A-W Filter

Brand Name : YBX

Model Number : YB11A7-6A-W

Certification : cUL, TUV, CQC, CE, ROHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 20-25 days

Packaging Details : 56.5*28.5*22.5cm

Item : YB-A Series IEC Inlet Filter

Product Category : EMI Filter

Rated current : 1A-10A

Rated voltage : 115V/250VAC

Operating Frequency : 50/60HZ

Line to Line : 1450DVC

Contact Now

IEC Inlet Filter 1A-10A Wire Terminal Power Line Filter YB11A7-6A-W Filter For Power Supply

YB-A7 Series IEC Inlet Filter:

YB11A7-6A-W is the IEC Inlet Filter with excellent noise suppression performance and compact size. The Line side is the power input module, and the Load side is wire. The frequency range between 150 KHz and 30 MHz. Compliance with the limit values required under household appliances standards.

Fertures Of A7 IEC Inlet Filter:

1. High performance and high attenuation power filters with IEC 320 socket

2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing.

3. The rated current can be offered up to 10 amps.
4. Various output selections such as fast-on terminal,wire.

5. Low leakage current version upon requested.
6. Custom-specific versions are available on request.

Typical Applications:

Electrical and electronic equipment, Household equipment, Automation equipment, Fitness machine, and Medical equipment.

Power Line Filter Parameter:

Item	A7 IEC Inlet Filter
Model	YB11A7-6A-W
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	100pcs

Naming Rule:

YB	11	A7	-	6A	-	W
∣	∣	∣		∣		∣
Single Phase	Circuit	Dimension		Current		Output Connection
	11:11 circuit	A7		1A :1 amp		Q:fast-on tab 250
				3A :3 amp		W:wire
				6A :6 amp		S:Solder Lug Terminals

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB11A7-1A	A7	1	Fast-on terminal
YB11A7-3A	A7	3	Fast-on terminal
YB11A7-6A	A7	6	Solder Lug Terminals
YB11A7-8A	A7	8	Solder Lug Terminals
YB11A7-10A	A7	10	Wire

*Q: Fast-on 6.35x0.8mm S: solder 4.0x0.8mm W: UL1015 18awg

YB11A7-6A-W Product Picture:

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Bleeder resistor

(optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11A7-1A

<0.8mA

Fig.1

115/250V

50/60Hz

YB11A7-2A

Fig.1

YB11A7-3A

Fig.1

YB11A7-4A

Fig.1

YB11A7-6A

Fig.1

YB11A7-8A

Fig.1

YB11A7-10A

10A

Fig.1

YB11A7-15A

15A

Fig.1

Medical type Tabulates:

Model No.

Rated Current
@40°C

Terminal Options

Bleeder resistor

(optional)

Medical equipment
5

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11A7-1A-x(R5)

<5μA

Fig.2

115/250V

50/60Hz

YB11A7-2A-x(R5)

Fig.2

YB11A7-3A-x(R5)

Fig.2

YB11A7-4A-x(R5)

Fig.2

YB11A7-6A-x(R5)

Fig.2

YB11A7-8A-x(R5)

Fig.2

YB11A7-10A-x(R5)

10A

Fig.2

YB11A7-15A-X(R5)

15A

Fig.2

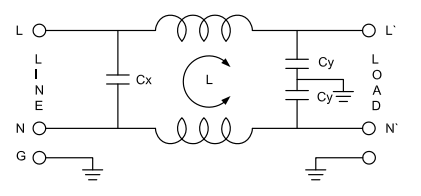

Electrical Schematic:

Yanbixin IEC Inlet Filter 1A-10A Wire Terminal Power Line Filter YB11A7-6A-W Filter

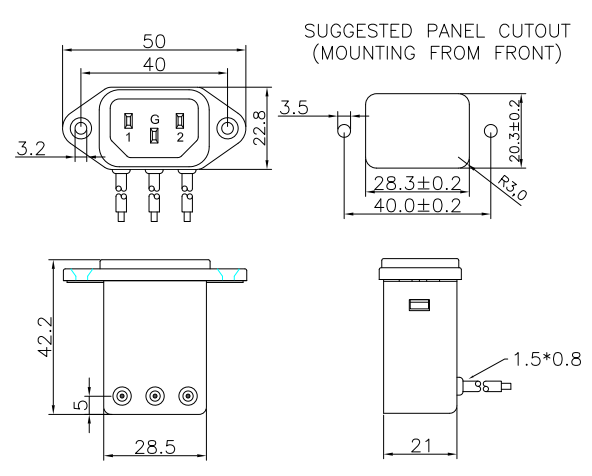

Mechanical Dimension(Unit: mm)

Yanbixin IEC Inlet Filter 1A-10A Wire Terminal Power Line Filter YB11A7-6A-W Filter

Case

42.2

28.5

22.4

3.2

Tolerances

±1

±0.15

±1

±0.5

±1

±0.15

±1

±0.5

Yanbixin IEC Inlet Filter 1A-10A Wire Terminal Power Line Filter YB11A7-6A-W Filter
