11, 15KW 50A Terminal Block RFI Power Filter Mains Noise Power Line Filter
| Item | OEM/ODM Filter |
| Model | OEM/ODM Filter |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V/380V/440V |
| Rated Current | 1~1000A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| Price | USD1.5~98.8/Meter |
| Lead Time | 5~15 weekday |
Features:
-- Protection against interference of voltage
-- New connection terminal block, with safety protection
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements
Typical Applications:
-- For photovoltaic systems and industrial applications
-- Three-phase motor drives
-- UPS/SMPS
-- Industrial automation equipment
Rule of Nomination:
YB 11 A5 - 10A - Q ( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
This nomination and the below informations just for your reference, we will make different part number and parameters according to customer's requests.
If you want to know more, pls email or consult us directly, we are ready to provide the service to you anytime!
Thank you!!!
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Leakage current 440V/50Hz
| Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YX81G5-10A-T | 10A | - | - | T | <1.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX81G5-20A-T | 20A | - | - | T | Fig.1 |
| YX81G5-30A-T | 30A | - | - | T | Fig.1 |
| YX81G5-40A-T | 40A | - | - | T | Fig.1 |
| YX81G5-50A-T | 50A | - | - | T | Fig.1 |
| YX81G5-60A-T | 60A | - | - | T | Fig.1 |
| YX81G5-80A-T | 80A | - | - | T | <2.0mA | Fig.1 |
| YX81G5-100A-T | 100A | - | - | T | Fig.1 |
| YX81G5-120A-T | 120A | - | - | T | <5.0mA | Fig.1 |
| YX81G5-160A-T | 160A | - | - | T | Fig.1 |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Electrical schematic:
Fig.1

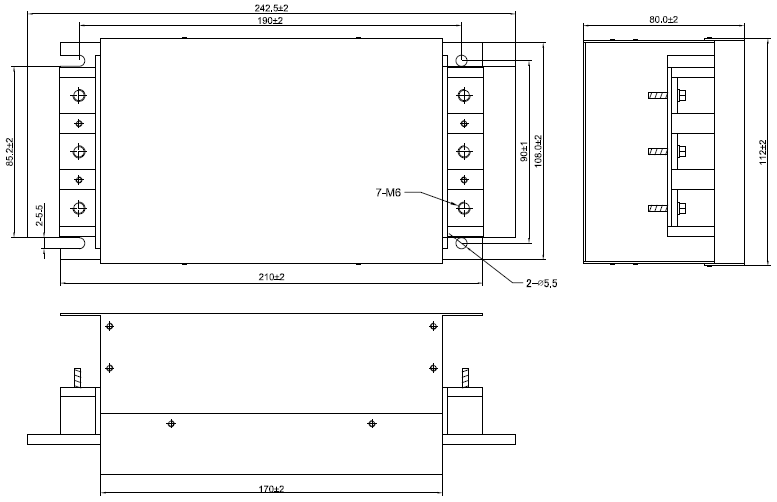

Mechanical Dimension(Unit: mm)

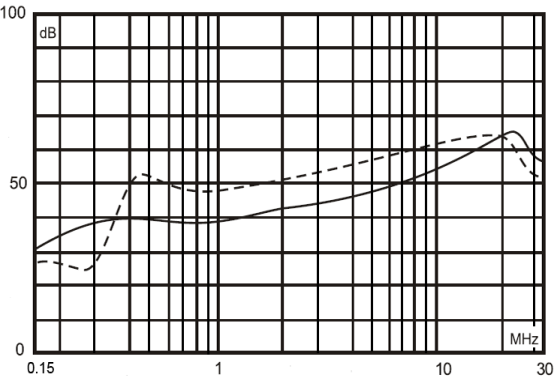

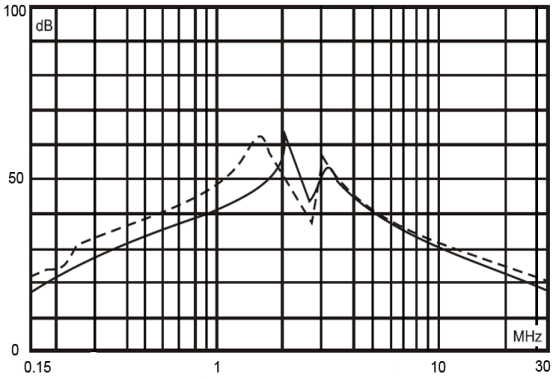

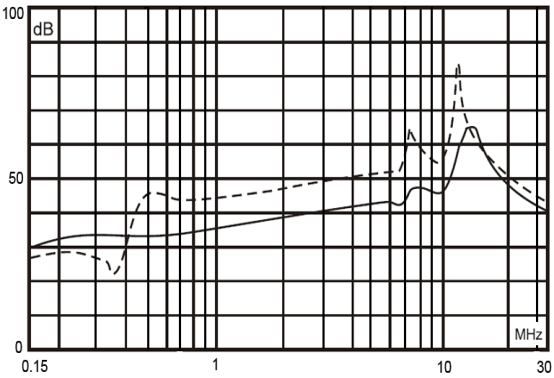

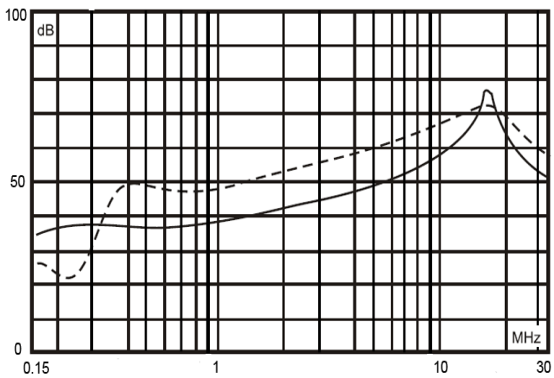

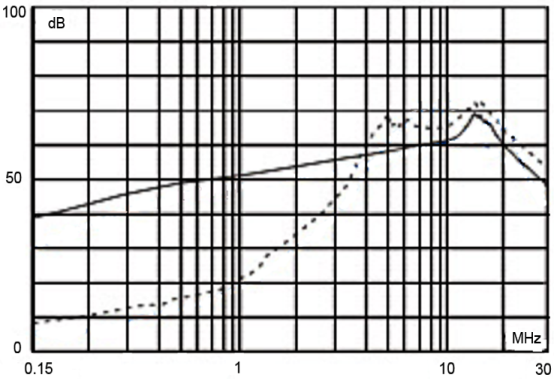

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
6/10A 20A
30A 40/50A
100/200A
