RFI Power Filter 440V 100A Terminal Block Output Three Phase Filter For Automation Equipment
Terminal Block Three Phase Filter:
YX82G6-100A-T is the terminal block three phase filter, compact structure, filters high current and voltage EMI. Applicable voltage range 380V~520V, optional current range 3A~100A, the frequency range of processing is 150KHz~30MHz.
Features Of Three Phase Filter:
1. Protection against interference of voltage
2. New connection terminal block, with safety protection
3. Available for Delta or WYE wiring with a variety of terminal connection options
4. High voltage and current rating to cover high power applications
5. There are a variety of parts and combinations to meet different customer's EMC tests
Typical Applications Of Three Phase EMI Filter:
1. For photovoltaic systems and industrial applications
2. Three-phase motor drives
3. UPS/SMPS
4. Industrial automation equipment
YX82G6 EMI Filter Specification:
| Item | Three Phase Filter |
| Model | YX82G6-100A-T |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 100Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1~100A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX82G6 | G6 | 30 | M4 screw/M6 screw |
| YX82G6 | G6 | 50 |
| YX82G6 | G6 | 60 | Terminal block |
| YX82G6 | G6 | 80 |
| YX82G6 | G6 | 100 | Copper bar |
*Q: Fast-on 6.35x0.8mm
S: Screw lug
T: Terminal block
Naming Rule:
| YX | 82 | G6 | - | 100A | - | S |
| | | | | | | | | | | | |
| Three Phase | Circuit | Dimension | | Current | | Output Connection |
| | 82:82 circuit | G6 | | 50A :50 amp | | S:M4 screw |
| | | | | 80A :80 amp | | T:Terminal block |
| | | | | 100A :100 amp | | B:Cooper bar |

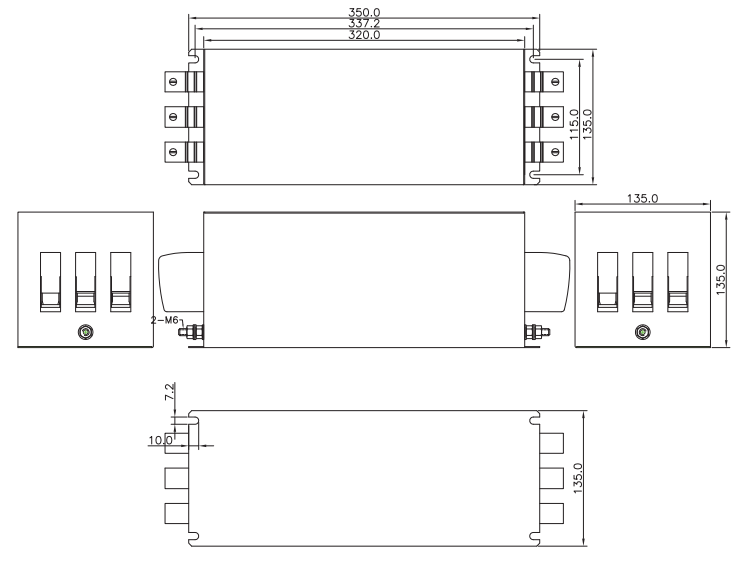

Mechanical Dimension(Unit: mm)
Electrical Schematic:
YX82G6-100A-T Three Phase Filter Picture:
Our EMI Filter Company Strength:
Our company is a collection of electromagnetic compatibility (EMC) & EMI FILTERS research and development, production and sales of high new technical enterprise. After years of efforts of the company's personnel, products successively obtained the cUL,TUV,CQC, CE, ROSH certifications. We have ISO 9001:2015 to ensure the product quality. We became the listed company in 2016; and now we are the top 500 domestic enterprises designated suppliers!
