EMI RFI Power Low Pass Inverter Emi Filter for Most Brands of Converters
| Item | Power line Filter |
| Model | Power line Filter YX-G |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1~1200A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| Price | USD3.8~88.8/Meter |
| Lead Time | 5~20 weekday |
Features:
-- With a three-stage filtering design, special materials can guarantee the high impedance characteristics in wide frequency range;
-- Assure the smooth operation of other electronic devices in the vicinity, and solve the interference problems of inverter;
-- Copper bar terminals applied for versions above 250A to keep pace with international standard, easy and safe connection;
-- Customized products according to customer's requirements
Typical Applications:
1. Suitable for most brands of inverters
2. Servo motor
3. UPS/SMPS
4. Industrial electronic equipment by using frequency conversion principle
Rule of Nomination:
YX 84 G1 - 3A - Q
¦ ¦ ¦ ¦
circuit case current connection
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Leakage current 440V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YX84G1-3A | 3A | - | S | T | <5.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX84G2-6A | 6A | - | S | T | Fig.1 |
| YX84G2-10A | 10A | - | S | T | Fig.1 |
| YX84G2-15A | 15A | - | S | T | Fig.1 |
| YX84G3-20A | 20A | - | S | T | Fig.1 |
| YX84G3-25A | 25A | - | S | T | Fig.1 |
| YX84G3-30A | 30A | - | S | T | Fig.1 |
| YX84G5-30A | 30A | - | S | T | Fig.1 |
| YX84G5-40A | 40A | - | S | T | Fig.1 |
| YX84G5-50A | 50A | - | S | T | Fig.1 |
| YX84G4-50A | 50A | - | S | T | <7.0mA | Fig.1 |
| YX84G4-60A | 60A | - | S | T | Fig.1 |
| YX84G4-80A | 80A | - | S | T | Fig.1 |
| YX84G6-100A | 100A | - | S | T | <10.0mA | Fig.1 |
| YX84G6-120A | 120A | - | S | T | Fig.1 |
| YX84G6-150A | 150A | - | S | T | Fig.1 |
| YX84G6-180A | 180A | - | S | T | Fig.1 |
| YX84G6-200A | 200A | - | S | T | Fig.1 |
| YX84G8-300A | 300A | B | - | T | <20.0mA | Fig.1 |
| YX84G8-400A | 400A | B | - | T | Fig.1 |
| YX84G8-630A | 630A | B | - | T | Fig.1 |
| YX84G9-800A | 800A | B | - | T | Fig.1 |
| YX83G9-1000A | 1000A | B | - | T | Fig.1 |
| YX83G9-1200A | 1200A | B | - | T | Fig.1 |
T: Terminal block

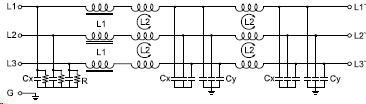

Electrical schematic:
Fig.1

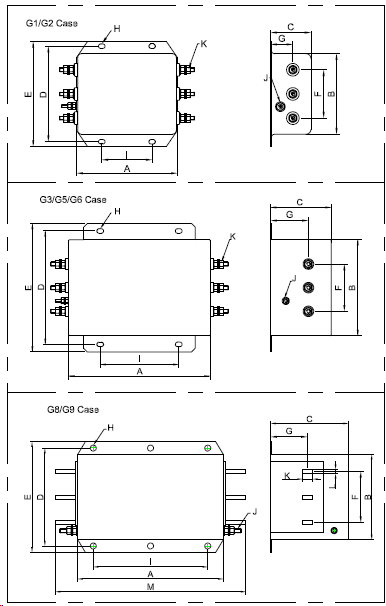

Mechanical Dimension(Unit: mm)
| Case | G1 | G2 | G3 | G5 | G6 | G8 | G9 | Tolerances |
| A | 72 | 98 | 120 | 150 | 260 | 290 | 350 | ±1 |
| B | 65 | 80 | 100 | 105 | 170 | 170 | 205 | ±1 |
| C | 39 | 40 | 50 | 60 | 100 | 155 | 162 | ±1 |
| D | 75 | 95 | 115 | 120 | 196 | 195 | 230 | ±0.15 |
| E | 85 | 105 | 130 | 135 | 220 | 220 | 255 | ±1 |
| F | 35 | 50 | 50 | 55 | 85 | 100 | 124 | ±0.5 |
| G | 22 | 20 | 28 | 35 | 65 | 75 | 67 | ±0.5 |
| H | | 4.5*6.5 | 4*6 | 4*6 | 8*12 | 12 | 12 | ±0.15 |
| I | 45 | 50 | 60 | 90 | 172 | 228 | 290 | ±0.15 |
| J | M4 | M4 | M4 | M4/M6 | M8 | M8 | M8 | |
| K | M4/M6 | M4/M6 | M4/M6 | M6/M8 | M10 | 20 | 30 | ±0.15 |
| L | | | | | | 8 | 8 | ±0.15 |
| M | | | | | | 380 | 448 | ±2 |
| N | | | | | | | | |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
6/10A 20A
30A 50A
100A 200A
