380V, 440VAC 3A 3 Phase 3 Line Inverter Emi Filter for Converter
| Item | Industry power Filter for converter |
| Model | Industry power Filter YB-G series |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1~600A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 5pcs |
| Price | USD4.8~88.8/Meter |
| Lead Time | 5~15 weekday |
Features:
-- With three stage filtering design, special materials can guarantee the high impedance characteristics in wide frequency range
-- Assure the smooth operation of other electronic devices in the vicinity, and solve the interference problems of inverter
-- Copper bar terminals applied for versions above 250A to keep pace with international standard, easy and safe connection
-- Customized products according to customer's requirements
Typical Applications:
-- Suitable for most brands of inverters
-- Servo motor
-- dv/dt limitation
-- Industrial electronic equipment by using frequency conversion principle
-- Office automation and datacom equipment
Rule of Nomination:
YX 84 G1 - 3A - Q L
¦ ¦ ¦ ¦
circuit case current connection
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Leakage current 440V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YX84G1-3A-XL | 3A | - | S | T | <5.0mA | Fig.1 | 250/440V | 50/60Hz |
| YX84G2-6A-XL | 6A | - | S | T | Fig.1 |
| YX84G2-10A-XL | 10A | - | S | T | Fig.1 |
| YX84G2-15A-XL | 15A | - | S | T | Fig.1 |
| YX84G3-20A-XL | 20A | - | S | T | Fig.1 |
| YX84G3-25A-XL | 25A | - | S | T | Fig.1 |
| YX84G3-30A-XL | 30A | - | S | T | Fig.1 |
| YX84G5-30A-XL | 30A | - | S | T | Fig.1 |
| YX84G5-40A-XL | 40A | - | S | T | Fig.1 |
| YX84G5-50A-XL | 50A | - | S | T | Fig.1 |
| YX84G4-50A-XL | 50A | - | S | T | <7.0mA | Fig.1 |
| YX84G4-60A-XL | 60A | - | S | T | Fig.1 |
| YX84G4-80A-XL | 80A | - | S | T | Fig.1 |
| YX84G6-100A-XL | 100A | - | S | T | <10.0mA | Fig.1 |
| YX84G6-120A-XL | 120A | - | S | T | Fig.1 |
| YX84G6-150A-XL | 150A | - | S | T | Fig.1 |
| YX84G6-180A-XL | 180A | - | S | T | Fig.1 |
| YX84G6-200A-XL | 200A | - | S | T | Fig.1 |
| YX84G8-300A-XL | 300A | B | - | - | <20.0mA | Fig.1 |
| YX84G8-400A-XL | 400A | B | - | - | Fig.1 |
| YX84G8-630A-XL | 630A | B | - | - | Fig.1 |
| YX84G9-800A-XL | 800A | B | - | - | Fig.1 |
| YX83G9-1000A-XL | 1000A | B | - | - | Fig.1 |
| YX83G9-1200A-XL | 1200A | B | - | - | Fig.1 |
*B: Copper bar
S: Screw lug
T: Terminal block

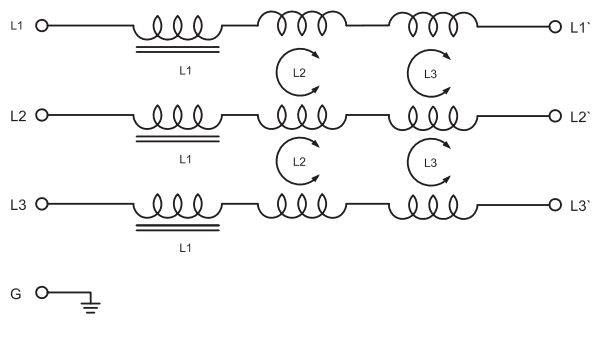

Electrical schematic:

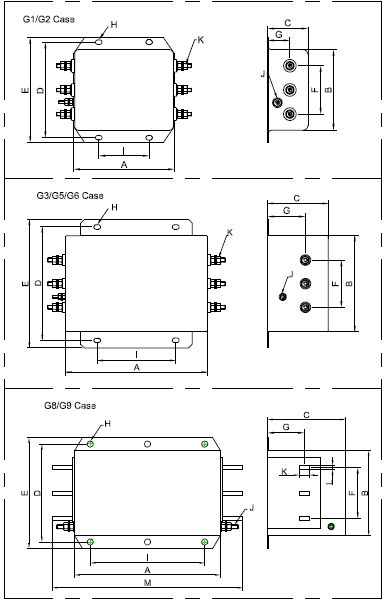

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L | M |
| G1 | 72 | 65 | 39 | 75 | 85 | 35 | 22 | | 45 | M4 | M4/M6 | | |
| G2 | 98 | 80 | 40 | 95 | 105 | 50 | 20 | 4.5*6.5 | 50 | M4 | M4/M6 | | |
| G3 | 120 | 100 | 50 | 115 | 130 | 50 | 28 | 4*6 | 60 | M4 | M4/M6 | | |
| G4 | 200 | 127 | 80 | 150 | 170 | 62 | 49.5 | 6*9 | 117 | M6/M8 | M8/M10 | | |
| G5 | 150 | 105 | 60 | 120 | 135 | 55 | 35 | 4*6 | 90 | M6 | M8 | | |
| G6 | 260 | 170 | 100 | 196 | 220 | 85 | 65 | 8*12 | 172 | M8 | M10 | | |
| G8 | 290 | 170 | 155 | 195 | 220 | 100 | 75 | 12 | 228 | M8 | 20 | 8 | 380 |
| G9 | 350 | 205 | 162 | 230 | 255 | 124 | 67 | 12 | 290 | M8 | 30 | 8 | 448 |
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 | ±0.15 | ±2 |

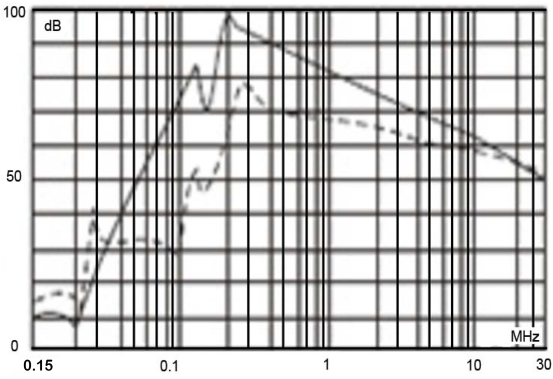

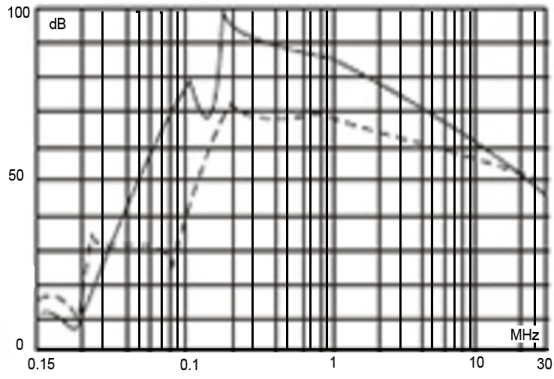

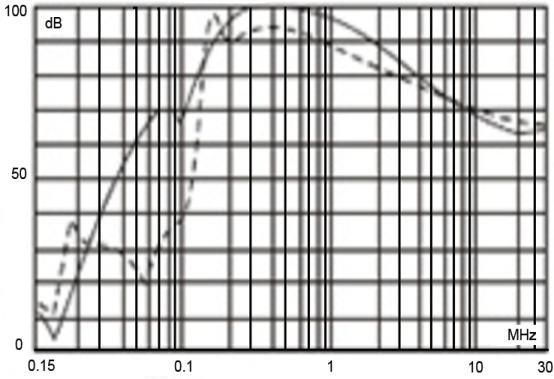

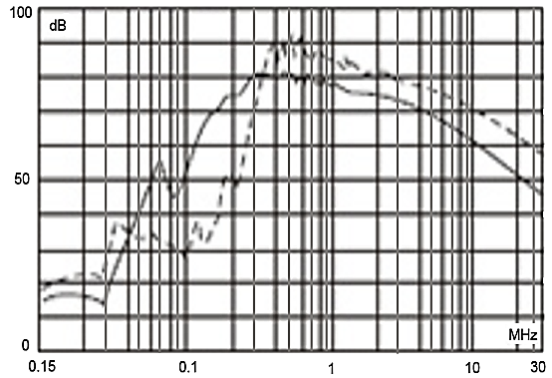

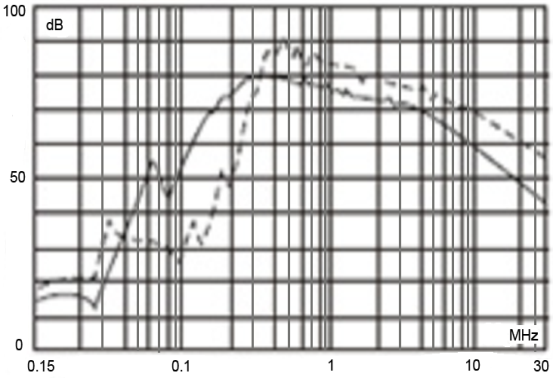

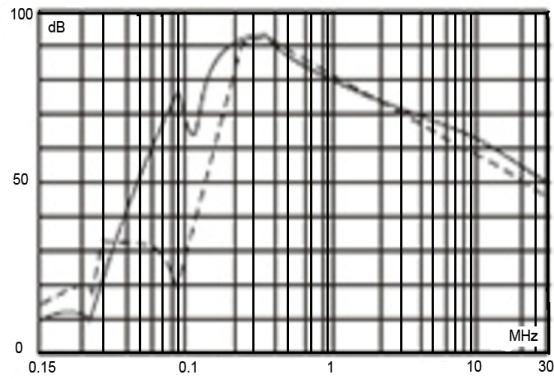

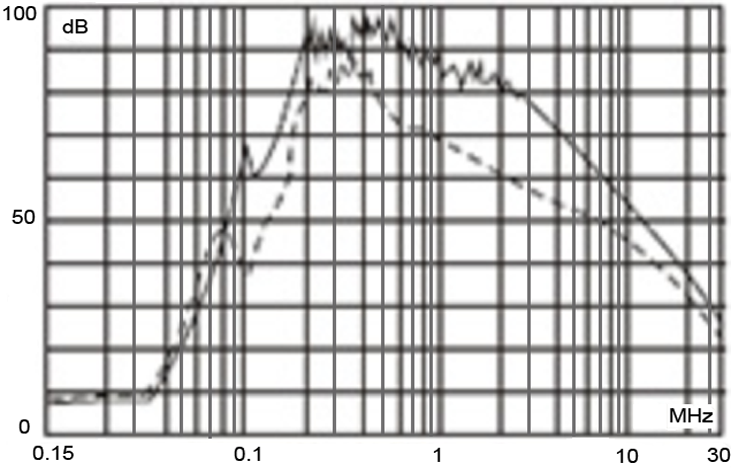

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
6A/10A 20A
30A 50A
80A 100A
200A
