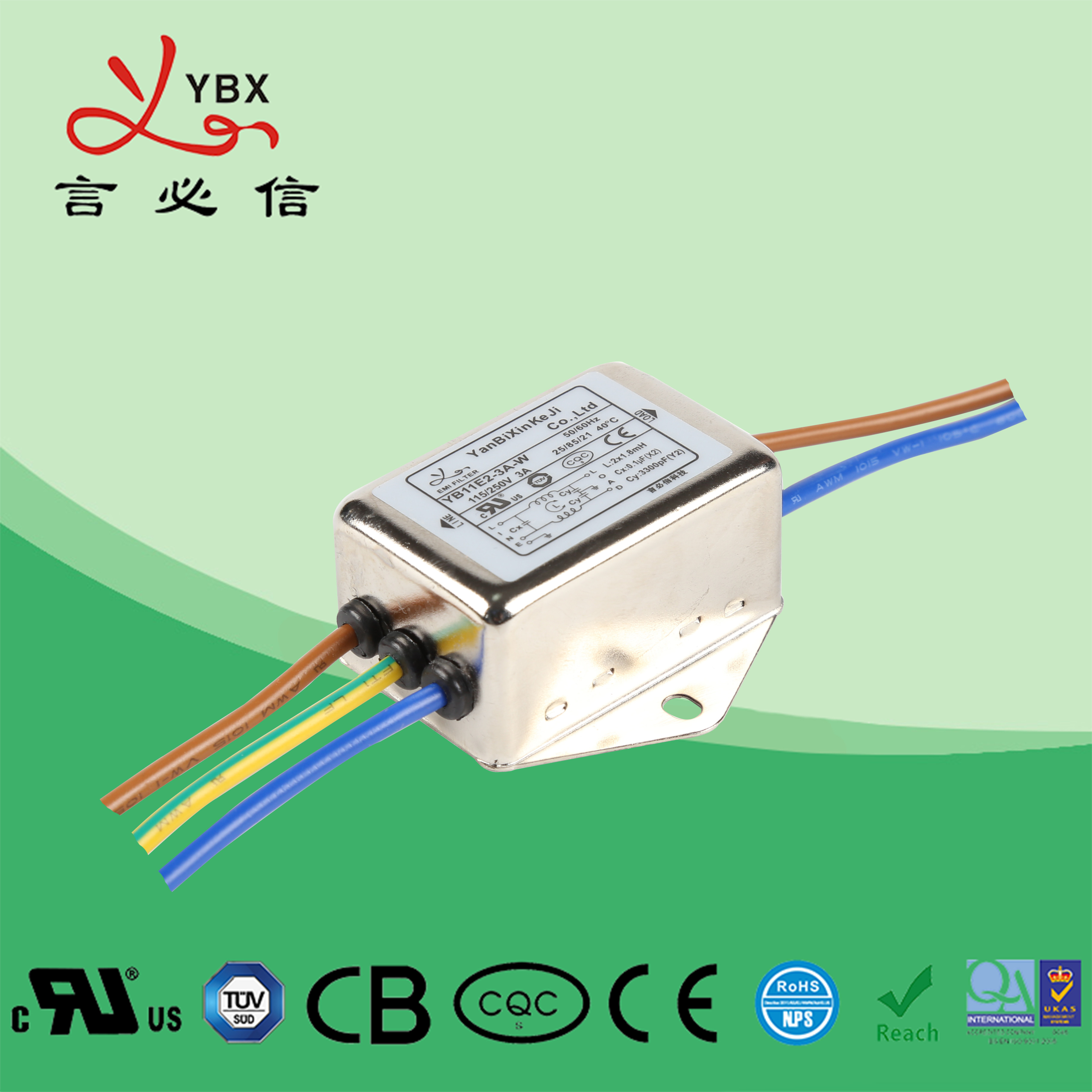

6A 250VAC EMC Single Line Filter Low Pass Emi Filter For Power Supply
| Item | Power line Filter |
| Model | Power line Filter YB-E |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~15A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | USD1~5.3/Meter |
| Lead Time | 5~20 weekday |
Features:
-- The compact size can be applied to various situations.
-- YB11 filters are also available as two-stage filters(YB35) in noisy environmment.
-- There are a variety of parts and combinations to meet different customer's EMC tests.
-- Customized products according to customer's requirements.
Typical Applications
1. Single-phase power supplies, switch-mode power supplies
2. Small to medium-sized machines and household equipment
3. Portable electrical and electronic equipment
4. Test and measurement equipment
5. Safety tester
6. Automated optical inspection (AOI)
7. SMPS
8. Medical device (not body-coupled)
9. Portable electrical and electronic equipment
Rule of Nomination:
YB 11 E1 - 10A - Q ( R 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Bleeder resistor(optional) | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11E1-1A | 1A | Q | - | W | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11E1-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E1-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E1-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E1-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E1-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E1-10A | 10A | Q | - | W | - | Fig.1 |
| YB11E2-1A | 1A | Q | - | W | - | Fig.1 |
| YB11E2-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E2-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E2-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E2-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E2-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E2-10A | 10A | Q | - | W | - | Fig.1 |
| YB11E3-1A | 1A | Q | - | W | - | Fig.1 |
| YB11E3-2A | 2A | Q | - | W | - | Fig.1 |
| YB11E3-3A | 3A | Q | - | W | - | Fig.1 |
| YB11E3-4A | 4A | Q | - | W | - | Fig.1 |
| YB11E3-6A | 6A | Q | - | W | - | Fig.1 |
| YB11E3-8A | 8A | Q | - | W | - | Fig.1 |
| YB11E3-10A | 10A | Q | - | W | - | Fig.1 |
Electrical schematic:
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| E1 | 24 | 44 | 19 | 54.5 | 64.5 | 23 | 9.5 | 4.5 | | | 6.3*0.8 |
| E2 | 44 | 29 | 22 | 40 | 50 | 15 | 8 | 4.5 | 3.5 | | UL1015 |
| E3 | 32 | 46 | 22.5 | 54 | 62 | 24 | 12.5 | 4.5 | | | 6.3*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.15 | ±0.15 | | ±0.15 |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
6A 8A
10A
Advantage Of EMI Power Filter
- After years of efforts of the company's personnel, products successively obtained the cUL,
TUV,CQC, CE, ROSH certifications. - We have a professional R&D team; our aims is we won't let customers spend any extra money!
- National high-tech enterprises, brand assurance, reliable quality, and we have the relevant
product certifications.
- We cooperate with top scientific research laboratories to provide free EMC rectification technical
support, samples; and free conduction test.
- Automation technology, scale production, great price,excellent, service, fast delivery! Free replacement within three months, free maintenance within six years, life-long maintenance!
