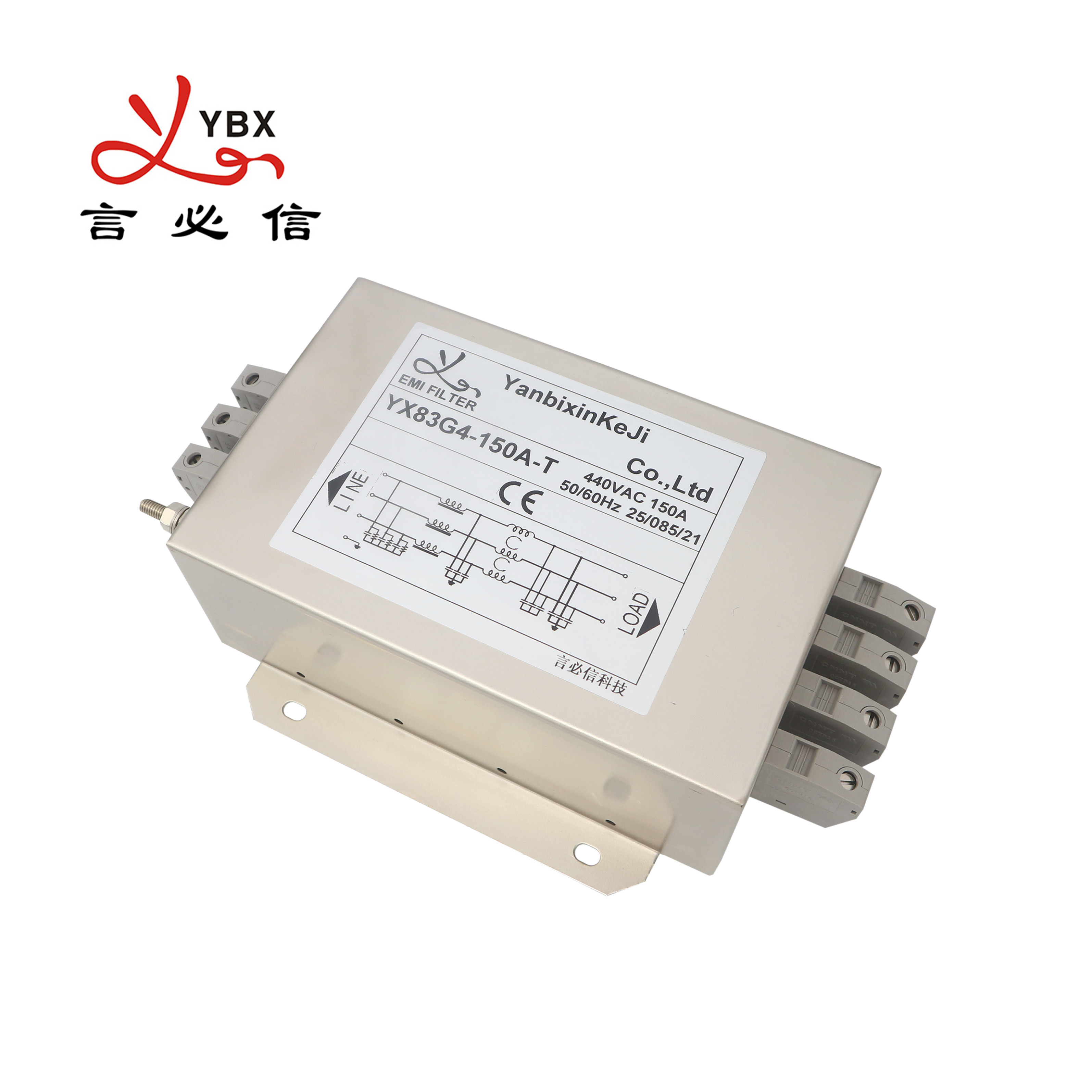

100A High Current Three Phase Filter ENEC EMI/RFI Filter For Single Crystal Furnace
3-phase 3-line EMI filter with high-frequency attenuation for Industrial equipment
Description Of Three Phase Filter
1, Rated currents from 3 to 200A
2, High attenuation performance up to 300 MHz
3, Voltage rating 440VAC for worldwide acceptance
4, Approvals: CE, ROHS, ENEC
| Item | Termianl Block Three Phase Filter |
| Part Number | YX83G4-150A-T |
| Rated voltage | 250/440VAC,50/60Hz |
| Operating frequency | DC to 60Hz |
| Rated currents | 3~200A@40°C |
| Hipot Rating | L-L 2250VDC |
| | L-N 1600VDC |
| | L/N-G 4000VDC |
| Overload Current: | 1.5x rated current for 1 minute, once per hour |
| Climatic category | -25°C~+85°C(25/85/21) |
| Design corresponding to | UL1283, CSA C22.2 No.8, |
| | IEC/EN 60939, |
| | CQC GB 15288/GB 15287-2008 |
| Flammability | UL 94V-0 |
Features:
1. Protection against interference of voltage.
2. Advanced two-stage filtering circuits with high saturating resistant toroidal inductors
3. Customized products according to customer's requirements
Typical Applications:
1. Applications requiring high-frequency attenuation
2. High power office equipment
3. Office and data processing equipment
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YX83G4-30A | G4 | 30 | M4/M6/M8 screw |
| YX83G4-40A | G4 | 40 |
| YX83G4-50A | G4 | 50 | Terminal block |
| YX83G4-80A | G4 | 80 |
| YX83G4-100A | G4 | 100 | Copper bar |
B: Copper bar
S: Screw lug
T: Terminal block

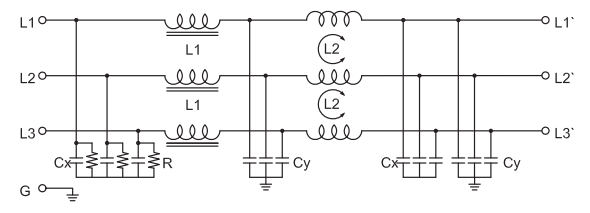

Electrical Schematic:
Tabulates:

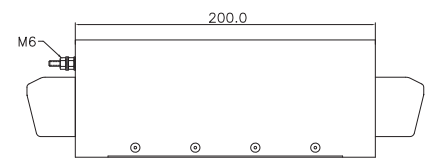

Mechanical Dimension(mm):
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
FAQ:
Q1:Do you offer a customized product?
A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings and specification.
Q2: Are you a factory?
A: Yes, we are a professional manufacturer of EMI filter designing and manufacturing since 2008.
Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for samples; 10 to 15 for small orders, 15-25days for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Please contact us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than 5000 USD, we can do a 30% T/T deposit, a 70% T/T deposit before shipment, and a balance against shipment. And we also accept the L/C, Western Union, Paypal, etc.
Q5: How about the certificates?
A: ISO 9001, CE, TUV, UL, ROHS, ENEC, REACH, etc.
Q6: How about the sample?
A: Free samples. You need to pay for currier cost. Please contact us for details.
We Can Provide Professional Solutions For Customers. Please Contact Us For Any Question.
