3-in-1 Power Entry Module Filter IEC Inlet Emi Filter For Power Line
Power Entry Module Filter:

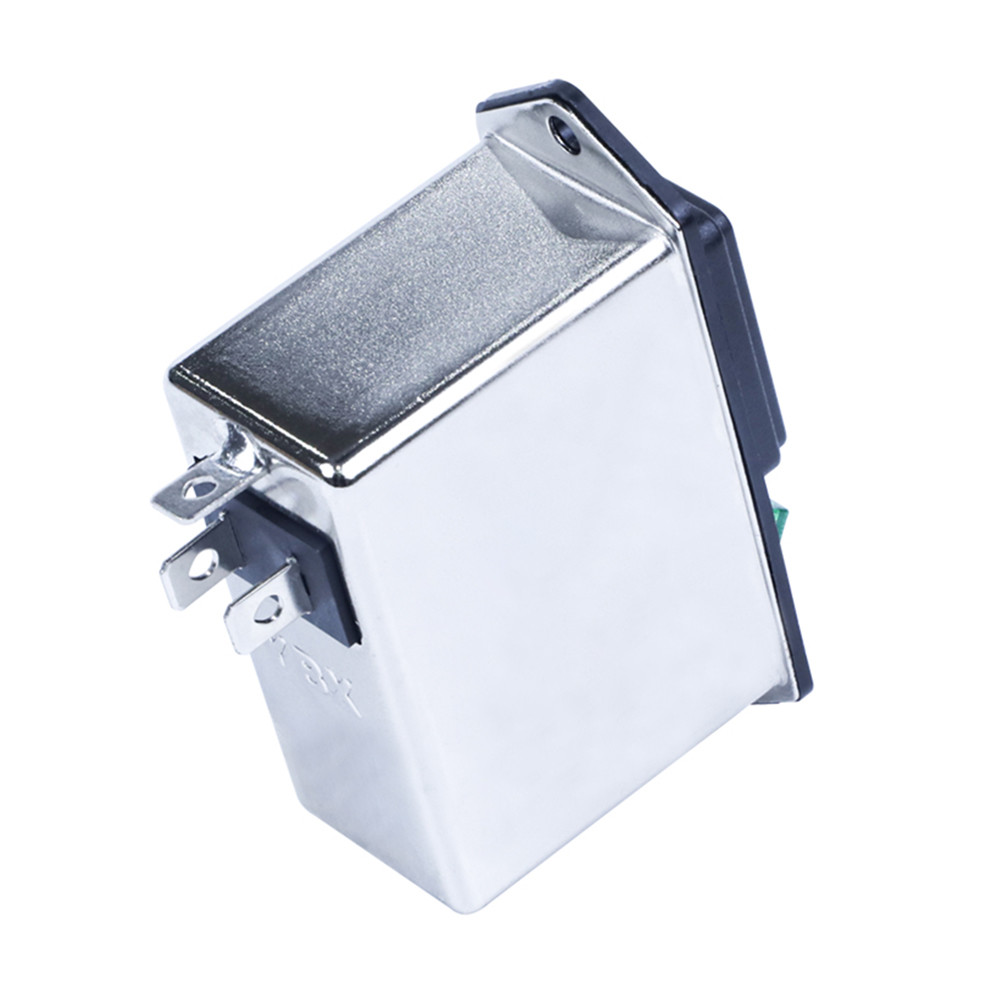

YB11C3-6A-Q(R) is the IEC Inlet EMI Filter with switch, socket and fuse.Solder lug terminal and snap-in vertically integrates an IEC inlet type and filter with noise suppression in a slim form factor.The current rated can be offered up to 10 amps and the rated voltage is 115/250vac.
Feature Of IEC Inlet Filter
1. Offer in snap-in mounting type with optional vertical & horizontal
2. Snap-in installation design, simple and quick,
3. Power entry model filters with an IEC inlet, a mains filter with dual-fuse and rocker switch.
4. The choice of integrated earth line choke is also available.
5. Low leakage current version upon requested.
6. Custom-specific versions are available on request.
Typical Applications:
1. Portable electrical and electronic equipment
2. Medical equipment
3. Test and measurement equipment
4. Small and medium-sized machines and household equipment
| Item | IEC EMI Filter |
| Model | IEC Filter YB11C3-6A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
Naming Rule:
| YB | 11 | C3 | - | 6A | - | Q(R) |
| ∣ | ∣ | ∣ | | ∣ | | ∣ |
| Our brand | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | C3 | | 1A :1 amp | | Q:Solder Lug Terminal |
| | | | | 4A :4 amp | | (R): With Resistance |
| | | C5: One Fuse | | 6A :6 amp | | |
| | | C6: Two Fuses | | 8A:8 amp | | |
| | | | | 10A:10 amp | |
YB11C3-6A-Q(R) EMI Filter:
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Bleeder resistor (optional) |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11C3-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11C3-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11C3-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11C3-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11C3-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11C3-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11C3-10A | 10A | Q | S | - | - | - | Fig.1 |
| YB11C4-1A | 1A | Q | S | - | - | - | Fig.1 |
| YB11C4-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11C4-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11C4-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11C4-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11C4-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11C4-10A | 10A | Q | S | - | - | - | Fig.1 |
Medical Type Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options
| Bleeder resistor (optional) | Medical equipment |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11C3-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | <5μA | Fig.2 | 115/250V | 50/60Hz |
| YB11C3-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C3-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C3-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C3-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C3-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C3-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C4-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C4-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C4-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C4-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C4-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C4-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C4-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg

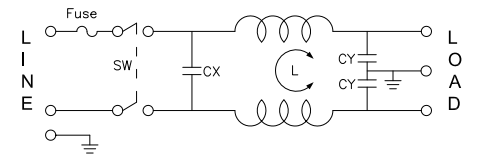

Electrical Schematic:
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K | L |
| C3/C4 | 62 | 61 | 29.5 | 80 | 72 | 35 | 11 | 11 | 17 | 3.5 | 6.35*0.8 | 46 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | 46 |
