10A 220V Power Line Filter IEC Inlet EMI Filter With Socket For Home Appliance
Technical Specification:
| Item | YB-A IEC Inlet EMI Filter |
| Model | YB11A4-10A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC/250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.2mA Max |
| MOQ | 500pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features:
-- Excellent performance/compact structure;
-- High performance and high attenuation power filters with IEC 320 socket;
-- (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing;
-- There are a variety of parts and combinations to meet different customer's EMC tests.
Typical Applications:
-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances;
-- Medical equipment;
-- Test and measurement equipment;
-- Small and medium-sized machines and household equipment
Rule of Nomination:
YB-----11-------A4------10A---------Q-----------( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options | Bleeder resistor (optional) | G (optional) | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11A3-1A | 1A | Q | S | W | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11A3-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A3-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A3-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A3-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A3-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A3-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A3-15A | 15A | Q | S | W | - | - | Fig.1 |
| YB11A4-1A | 1A | Q | S | W | - | - | Fig.1 |
| YB11A4-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A4-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A4-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A4-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A4-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A4-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A4-15A | 15A | Q | S | W | - | - | Fig.1 |
Electrical Schematic:
Fig.1
Fig.2

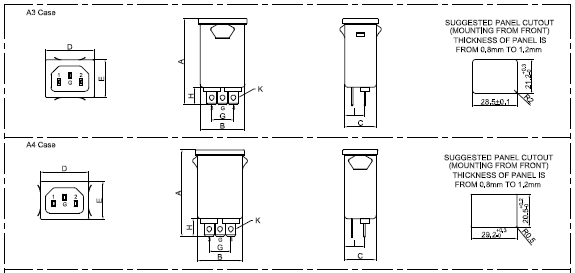

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| A3 | 56 | 28.5 | 21 | 31 | 24 | | 12.7 | 11.8 | 13.5 | 3.2 | 6.3*0.8 |
| A4 | 56 | 28.5 | 21 | 31 | 24 | | 12.7 | 11.8 | 13.5 | 3.2 | 6.3*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
