3A Power Entry Module EMI Filter With Single Fuse Holder Compact Design
| Item | IEC Filter |
| Model | IEC Filter YB-C |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | USD1~9.8/Meter |
| Lead Time | 5~15 weekday |
Features:
1. The products have high attenuation, based on chokes with high saturation resistance and excellent thermal behavior
2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing
3. There are a variety of parts and combinations to meet different customer's EMC tests
Typical Applications:
-- Portable electrical and electronic equipment
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
Rule of Nomination:
YB 11 C5 - 10A - Q ( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
C5: One Fuse
C6: Two Fuses
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Bleeder resistor (optional) | G | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11C5-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11C5-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11C5-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11C5-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11C5-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11C5-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11C5-10A | 10A | Q | S | - | - | - | Fig.1 |
| YB11C6-1A | 1A | Q | S | - | - | - | Fig.1 |
| YB11C6-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11C6-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11C6-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11C6-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11C6-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11C6-10A | 10A | Q | S | - | - | - | Fig.1 |
Medical type Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options | Bleeder resistor (optional) | Medical equipment
5 |
G | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11C5-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | <5μA | Fig.2 | 115/250V | 50/60Hz |
| YB11C5-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C5-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C5-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C5-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C5-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C5-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C6-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C6-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C6-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C6-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C6-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C6-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 |
| YB11C6-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Electrical schematic:
Fig.1
Fig.2

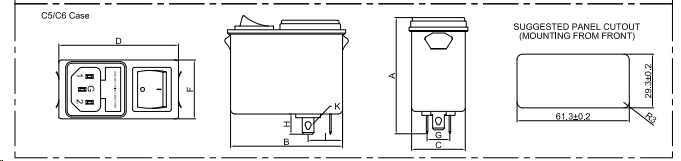

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| C5/C6 | 62 | 61 | 29.5 | 65.5 | | 32 | 11 | 11 | 19 | | 6.35*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |

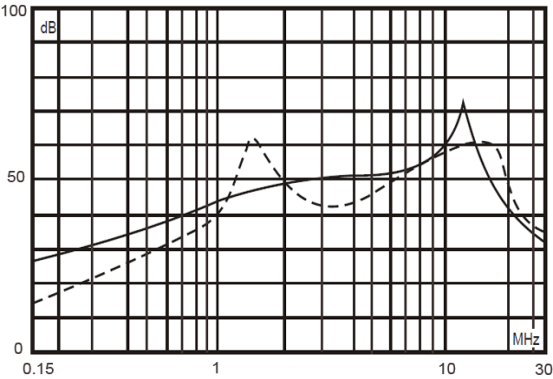

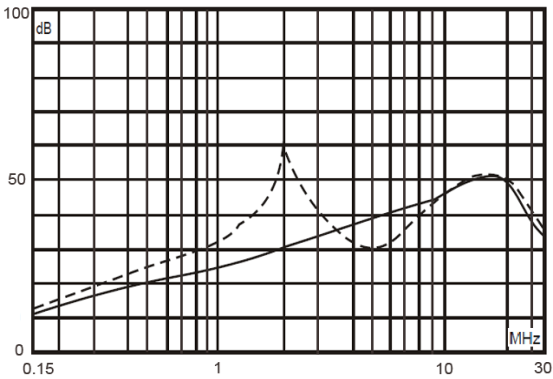

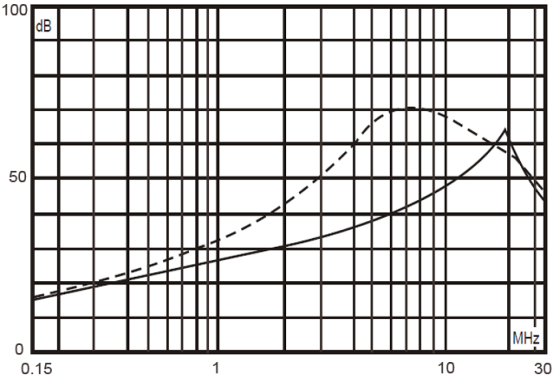

Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
6A 8A
10A
