Three In One 1A 220V C7 IEC Inlet Filter Power Model Entry Filter With Socket, Switch And Fuse
C7 Power Enrty Module Filter:
YB11C7-1A-Q is the power entry module filter. It is a compact and easy to install filter that plugs directly into an AC power outlet. Our design standards are in accordance with IEC60601, and filters have passed the UL,CQC,CE,TUV certification. 3-in-1 with socket, switch and fuse.We can also customize filters to medical specifications to meet the requirements of ultra-low leakage current.
Features Of Three In One EMI Filter:
1. High performance and high attenuation power filters with IEC 320 socket
2. The products have high attenuation, based on chokes with high saturation resistance and excellent thermal behavior
3. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing
4. There are a variety of parts and combinations to meet different customer's EMC tests
Application Of C7 Power Entry Module Filter:
-- Portable electrical and electronic equipment
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
YB-C EMI Filter Specification:
| Item | C7 Power Entry Module Filter |
| Model | YB11C7-1A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 5~20dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC~250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 500VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/60HZ 0.4mA Max 250VAV/50HZ 0.8mA Max |
Naming Rule:
| YB | 11 | C7 | - | 1A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | C7 | | 1A :1 amp | | Q:fast-on tab 250 |
| | | | | 3A :3 amp | | W:wire |
| | | | | 6A :6 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11C7 | C7 | 1 | Fast-on terminal |
| YB11C7 | C7 | 3 |
| YB11C7 | C7 | 6 | Wire |
| YB11C7 | C7 | 8 |
| YB11C7 | C7 | 10 | Solder Lug Terminals |
YB11C7-1A-Q EMI Filter Picture:

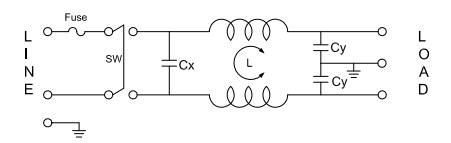

Electrical Schematic:

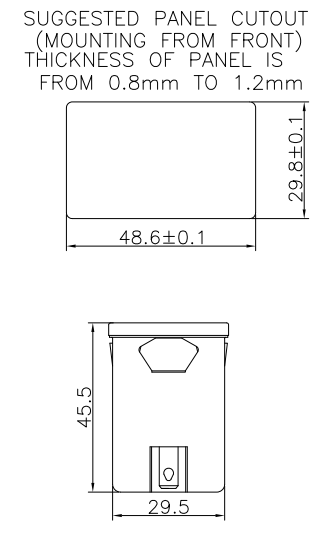

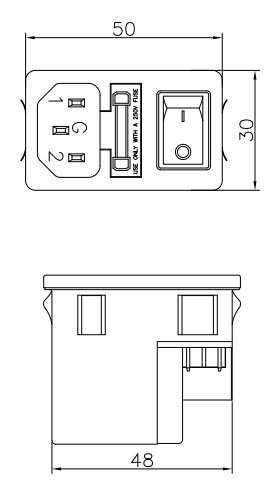

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| C7/C8 | 43.5 | 48 | 29.5 | 50 | | 30 | | | | | 6.35*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |
Insertion Loss:
Product Tags:
|
|
Yanbixin 1A 220V C7 IEC Inlet Filter Power Model Entry Filter For Switching Power Supply Images
|
