220V16A Insulated Plastic Case EMI Filter Solder Lug Terminal Noise Filter AC Single Phase Filter
YB16T3-16A-Q(R) is the white household EMI filter. Rated current 1~16A, good common mode and differential mode attenuation, non-metallic shell safety design, dedicated to air conditioners, refrigerators, washing machines and other equipment, can effectively filter electromagnetic interference noise.
Technical Specification:
| Item | White household EMI filter |
| Model | YB16T3-16A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 3A 6A 8A 10A 16A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.4mA Max |
| MOQ | 500pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features Of YB-T Series EMI Filter:
1. Rate currents from 1 to 16A
2. Non-metallic shell safety design
3. Good attenuation for common and differential mode
Typical Applications:
Air conditioner, washing machine, refrigerator and some kitchen appliances
Rule of Nomination:
| YB | 16 | T3 | - | 16A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 16:16 circuit | T3 | | 8A : 8 amp | | Q:fast-on tab 250 |
| | | | | 10A : 10 amp | | W:wire |
| | | | | 16A :16 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg

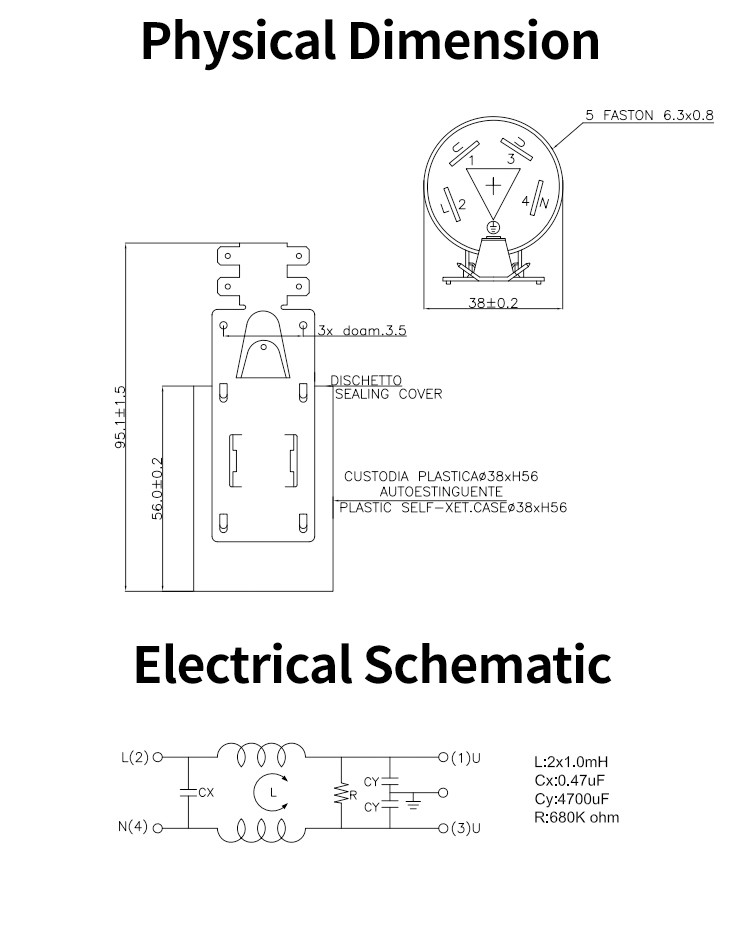

YB16T3-16A-Q(R) EMI Filter Dimension
YB16T3-16A-Q(R) EMI Filter:
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Production Equipment
During the production of EMI filters, we use many automated equipments, such as: long leg tin dipping machine, wave soldering, automatic flat labelling machine, etc., which greatly improves our production efficiency and guarantees the delivery time for our customers.
|
|
