YB11E Series EMI Filter 220V 6A Single Phase Power Filter For Power Supply

Brand Name : YBX

Model Number : YB11E1-10A-W

Certification : cUL,TUV,CQC,CE,ROHS

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 10-20 days

Packaging Details : 56.5*28.5*22.5cm(one box)

Product Name : E Series Single Phase Filter

Type : E Series EMI Filter

Rated Voltage Max. : 115V/250V

Rated currents : 1~10A

Flammability corresponding to : UL 94V-0

Transfer Function : Low Pass

L-N : 1450VDC

Input Impedance : 50Ω

Contact Now

YB11E Series EMI Filter 220V 6A Single Phase Power Filter For Power Supply

Technical Specification:

Item	Power line Filter
Model	YB11E1-6A-W
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~10A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max

Features:

-- Rated currents from 1 to 10A

-- General purpose filtering performance

-- Optional medical versions((R5) type)

-- Customized products according to customer's requirements.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Datacom equipment

-- Office automation equipment

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB11E1-1A	E1	1	Fast-on terminal
YB11E1-3A	E1	3	Fast-on terminal
YB11E1-6A	E1	6	M4/M6/M8 Screw
YB11E1-10A	E2	10	M4/M6/M8 Screw
YB11E1-15A	E1	15	Wire

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Tabulates:

Model No.

Rated Current
@40°C

Terminal Options*

Bleeder resistor(optional)

Leakage current 250V/50Hz

Electrical Schematic

Rated Voltage(V)

Operating Frequency(Hz)

YB11E1-1A

<0.8mA

Fig.1

115/250V

50/60Hz

YB11E1-2A

Fig.1

YB11E1-3A

Fig.1

YB11E1-4A

Fig.1

YB11E1-6A

Fig.1

YB11E1-8A

Fig.1

YB11E1-10A

10A

Fig.1

YB11E2-1A

Fig.1

YB11E2-2A

Fig.1

YB11E2-3A

Fig.1

YB11E2-4A

Fig.1

YB11E2-6A

Fig.1

YB11E2-8A

Fig.1

YB11E2-10A

10A

Fig.1

YB11E3-1A

Fig.1

YB11E3-2A

Fig.1

YB11E3-3A

Fig.1

YB11E3-4A

Fig.1

YB11E3-6A

Fig.1

YB11E3-8A

Fig.1

YB11E3-10A

10A

Fig.1

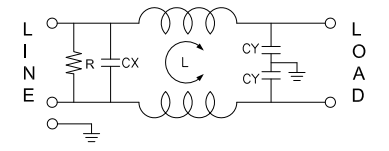

Electrical Schematic:

YB11E Series EMI Filter 220V 6A Single Phase Power Filter For Power Supply

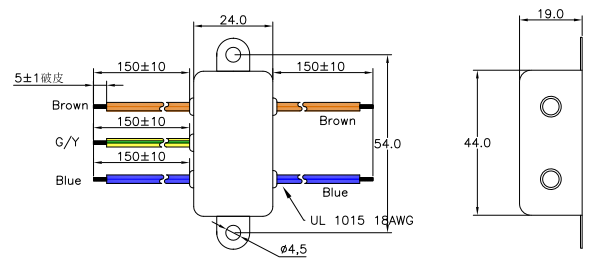

Mechanical Dimension(Unit: mm)

YB11E Series EMI Filter 220V 6A Single Phase Power Filter For Power Supply

Case	A	B	C	D	E	F	G	H	I	J	K

E1	24	44	19	54.5	64.5	23	9.5	4.5			6.3*0.8

E2	44	29	22	40	50	15	8	4.5	3.5		UL1015

E3	32	46	22.5	54	62	24	12.5	4.5			6.3*0.8

Tolerances 公差	±1	±1	±1	±0.15	±1	±0.5	±0.5	±0.15	±0.15		±0.15

YB11E1-6A-W EMI Filter Picture:

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

YB11E Series EMI Filter 220V 6A Single Phase Power Filter For Power Supply
