Treadmill Equipment Single Phase Emi Filter Two Stage Emc Noise Filter
Single phase two-stage EMI FILTER for treadmill equipment with enhanced filtering performance lower price
| Item | Power line EMI Filter |
| Model | YB21D3-3A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~15A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 0.4mA/115V,60HZ; 0.8mA/250V, 50HZ |
| MOQ | Negotiated |
| Price | Negotiated |
| Lead Time | 15~20 workdays |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference
-- Various terminal options allow you to select the desired connection style.
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation equipment
Rule of Nomination:
YB 21 D3 - 3A/6A/10A - Q ( R 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
S::Screw
Q: fast on
W: wire-lead
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg

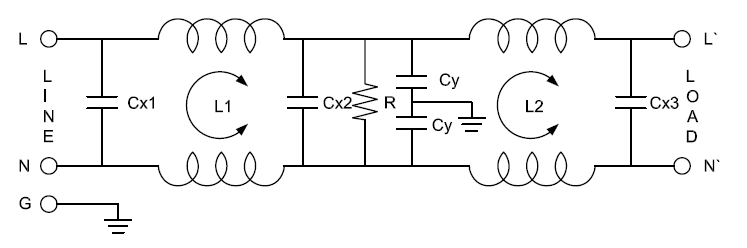

Electrical schematic:

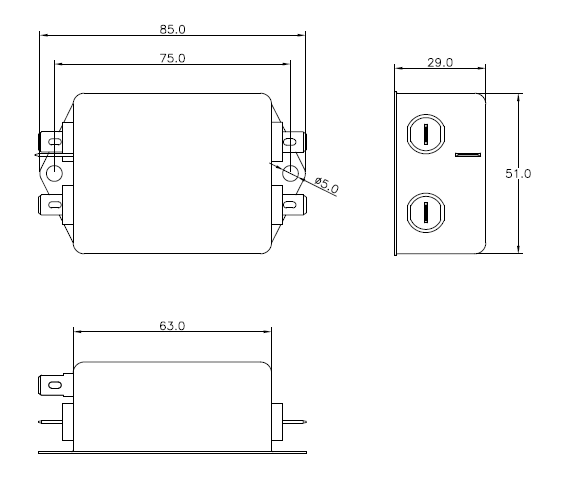

Mechanical Dimension(Unit: mm)

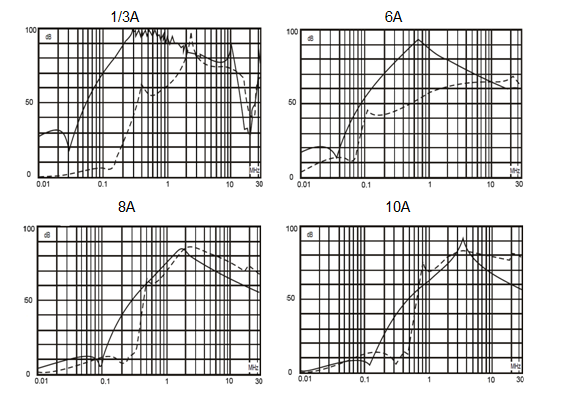

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode ---------------- differential mode
Sample
Sample Fee: Free
Sample Time: 3~5 days
Payment
---Payment terms: Western Union, D/P, T/T, L/C
---Please remember to leave the correct contact information for delivery.
Factory pictures:
Patents and Certifications:
Single Phase Filter:
cUL:20190321-E471748
TUV:B0899310001Rev.01
CQC:19001226449
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Three Phase Filter:
cUL:20190325-E502442
ENEC:ENEC-02580
CE:SZAIS180620005-01
ROHS:MMCRHRWM60371744
Packaging
Power Line Filter: CTN/80pcs
N/G W.: 14/15.3KG
Measures:0.565*0.285*0.205m
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
---Port is Shenzhen or as requests.
Our Advantage:
1, We are a listed company, NO；667344, brand guarantee, reliable quality
2, We have UL, cUL, TUV, CE, CB, CQC, ROHS, ISO9001, REACH certification to ensure the product quality
3, We have the relevant professional experimental equipment, so we can provide a free diagnostic conducting test for you.
4, We supply free EMC rectification technical support and free samples
5, Automation technology, scale production, excellent price
6, Good service, fast delivery!
7, After-sales service: free replacement within three months, free maintenance within 6 years, life-long maintenance.
8, We have a professional R&D team and cooperate with the top scientific research laboratory
FAQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inverter/converter EMC filter, etc.
Q: What is the function of your product EMC/EMI/noise filter?
A: The function of power line filters is to filter the electromagnetic interference, ensuring that your equipment is working properly without interference with each other
Q: Are your products belong to high-quality
A: Yes, our products have passed UL, TUV, CE, ROHS, CQC approval. our customers like Hisense, Foxconn recognize our products well.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
Q: Do you supply OEM/ODM services?
A: Yes, we can do OEM/ODM only if you meet our MOQ request for OEM/ODM customers
Q: Can you provide Research and development New product service?
A: Yes, Our R&D team can custom product as your requirement.
Q: Could we visit your factory
A: Warmly welcome you with open arms to visit us.
