Metal 120V 250V Single Phase RFI Filter Two Stage EMI EMC Filter
3A 120V 250V Electrical Noise Filter, RFI two-stage EMI EMC filter
| Item | Power line Filter |
| Model | YB22D1-3A-W |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | Negotiated |
| Price | Negotiated |
| Lead Time | 5~15 weekday |
Features:
-- Designed 2 stage enhanced filtering to prevent the power supply may produce interference to the device
-- Various terminal options allow you to select
-- There are a variety of parts and combinations to meet different customer's EMC tests
-- Customized products according to customer's requirements.
Typical Applications:
-- Electrical and electronic equipment
-- Medical equipment
-- Building automation
-- Office automation and datacom equipment
Rule of Nomination:
YB 22 D1 - 3A - W/Q ( 5 )
¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
*Q: Fast-on 6.35x0.8mm
S: Screw lug
W: UL1015 18awg
Electrical schematic:

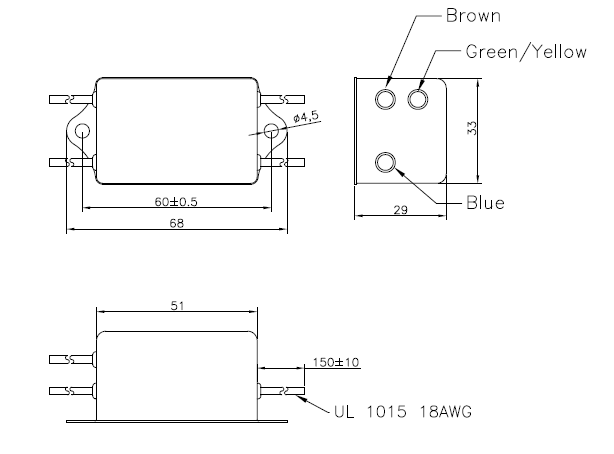

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
Factory pictures:
FAQ:
Q: What are the main products of your company?
A: IEC inlet socket EMI filter, single-phase filter, Three-phase RFI filter, house appliance noise filter, Medical equipment filter, inver/converter EMC filter, etc.
Q: How is the quality of your product?
A: All our products have pass UL, TUV, CE, ROHS, ISO9001 approval. which ensures the quality of the product.
Q: What are services available for pre-batch orders?
A: Free samples and EMC technical rectification services are supplied before-sale
Q: What are services available after-sale?
A: Free replacement within three-month, free maintenance within six-year, life-long maintenance.
Q: What facilities do you have?
A: We have our own laboratory and production base to establish large-scale production.
Q: What the delivery time for 1000pcs of EMI FILTER?
A: Normally 15-20 days, but we can coordinate for a better delivery time if it is urgent.
