IEC 60529 Power Entry Module Filter EMI Noise Filter With Socket Switch And Fuse
Filtered Power Entry Modules with Fuse and Switch EMI EMC Filters
Features:
1. Rated currents up to 10A
2. Single or dual-fuse holder
3. 2-pole rocker switch
4. Optional medical versions((R5) type)
5. Unique structure, 90 degree output
Typical Applications:
-- Portable electrical and electronic equipment
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
-- Single-phase power supply,switch-mode power supply
Technical Specification:
| Item | IEC Filter | Rated Current | 1~10A |
| Model | IEC Filter YB-C | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 100 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 60~90dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| Rated Voltage | 115V/250V | MOQ | 100pcs |
| Lead Time | 5~15 weekday | Price | Negotiable |
Rule of Nomination:
YB-----11----------C12---------8A-------------Q---------( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection ptional
C11: One Fuse
C12: Two Fuses
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options* | Bleeder resistor(optional) |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
 |  |  |
| YB11C11-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11C11-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11C11-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11C11-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11C11-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11C11-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11C11-10A | 10A | Q | S | - | - | - | Fig.1 |
| YB11C12-1A | 1A | Q | S | - | - | - | Fig.1 |
| YB11C12-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11C12-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11C12-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11C12-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11C12-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11C12-10A | 10A | Q | S | - | - | - | Fig.1 |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg

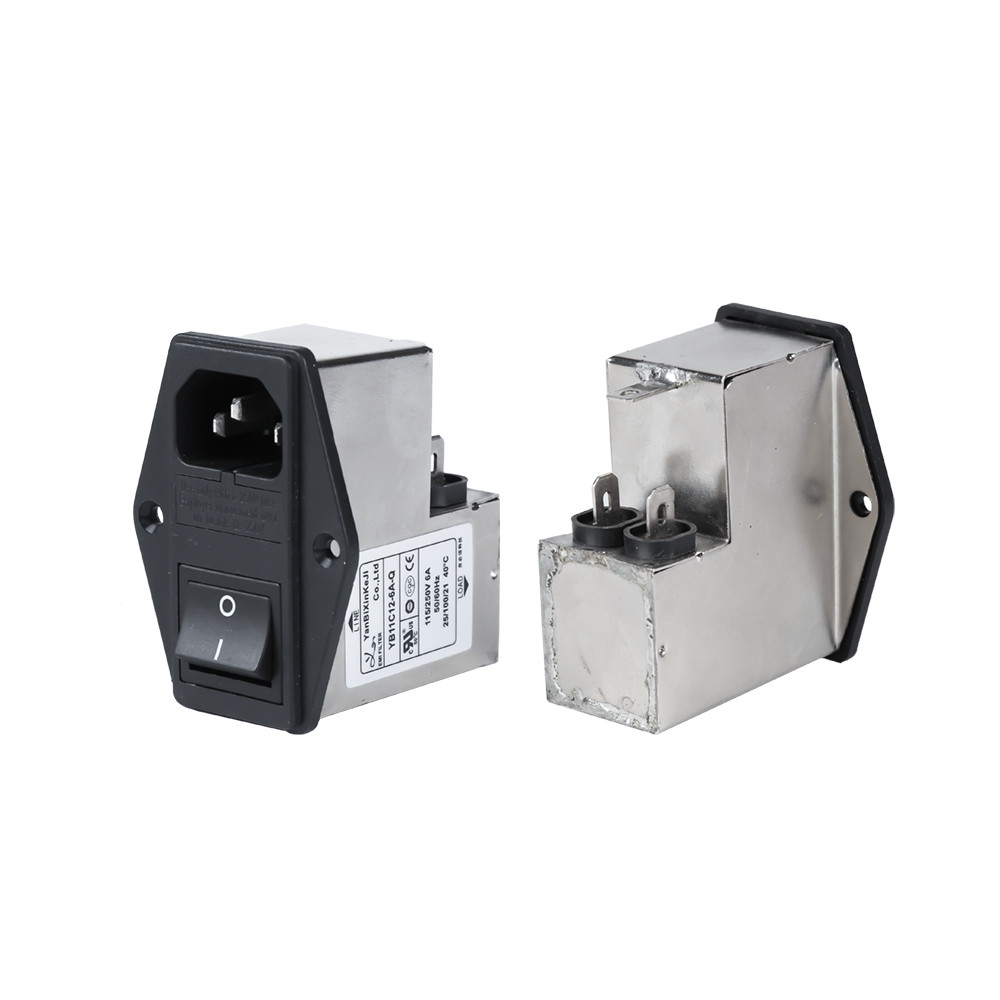

YB11C12-8A-Q EMI Filter Product Picture:
Electrical Schematic:
Fig.1
Standard type
Fig.2
R5 type
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| C11/C12 | 54 | 62 | 29 | 50 | 40 | 68 | 15.5 | 11 | | 3.7 | 6.35*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
