Technical Specification:
| Item | EMI Power Filter |
| Model | EMI Power Filter YB-B2 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 15KHZ-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 500pcs |
| Lead Time | 10~25 weekday |
Features:
(1) Versions to 10A are available with fuse holder for one or two (5*20mm) fuses
(2) (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current, and hipot testing
(3) There are a variety of parts and combinations to meet different customer's EMC tests
(4) Customized products according to customer's requirements
Typical Applications:
1. Portable electrical and electronic equipment;
2. Medical equipment;
3. Test and measurement equipment;
4. Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
Rule of Nomination:
YB 11 B2 - 10A - Q ( R 5 G )
¦ ¦ ¦ ¦ ¦
circuit case current terminal optional
Electrical schematic:
Fig.1
Fig.3
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Bleeder resistor (optional) |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11B1-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11B1-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11B1-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11B1-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11B1-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11B1-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11B1-10A | 10A | Q | S | - | - | - | Fig.1 |
| YB11B2-1A | 1A | Q | S | - | - | - | Fig.1 |
| YB11B2-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11B2-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11B2-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11B2-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11B2-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11B2-10A | 10A | Q | S | - | - | - | Fig.1 |
Medical Type Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options
| Bleeder resistor(optional) | Medical equipment
|
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11B1-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | <5μA | Fig.3 | 115/250V | 50/60Hz |
| YB11B1-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B1-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B1-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B1-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B1-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B1-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B2-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B2-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B2-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B2-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B2-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B2-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B2-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.3 |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg

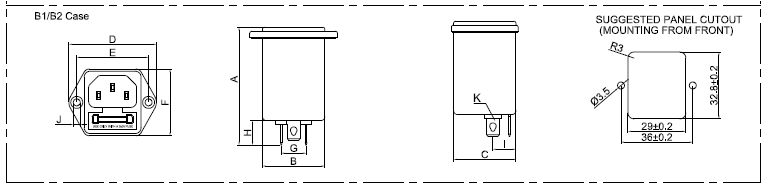

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| B1 | 58 | 28.5 | 32.4 | 44 | 36 | 33.5 | 12.8 | 11.1 | 12 | 3.5 | 6.3*0.8 |
| B2 | 58 | 28.5 | 32.4 | 44 | 36 | 33.5 | 12.8 | 11.1 | 12 | 3.5 | 6.3*0.8 |
Tolerances
公差 | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±1 |
Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
6A 8A
10A
