IEC 320 C14 AC Inlet Filter Male Plug In EMI Noise Filter With Switch Fuse
Power Entry Module Filter:
IEC Inlet Filter Specification:
| Item | Plug-in IEC Inlet Filter |
| Model | YB11C1-1A-Q(R) |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 500pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features:
1. Excellent performance/compact structure
2. Optional medical versions((R5) type)
3. Quick connect(6.35*0.8mm),solder or wire
4. High performance and high attenuation power filters with IEC 320 socket
5. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.
6. There are a variety of parts and combinations to meet different customer's EMC tests.
Typical Applications:
-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
Rule of Nomination of IEC Inlet Fiter
| YB | 11 | C1 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | C1 | | 6A : 6 amp | | Q:fast-on tab 250 |
| | | | | 8A : 8 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11C1-1A | C1 | 1 | Fast-on terminal |
| YB11C1-3A | C1 | 3 |
| YB11C1-6A | C1 | 6 | Wire |
| YB11C1-8A | C1 | 8 |
| YB11C1-10A | C1 | 10 | Solder Lug Terminals |

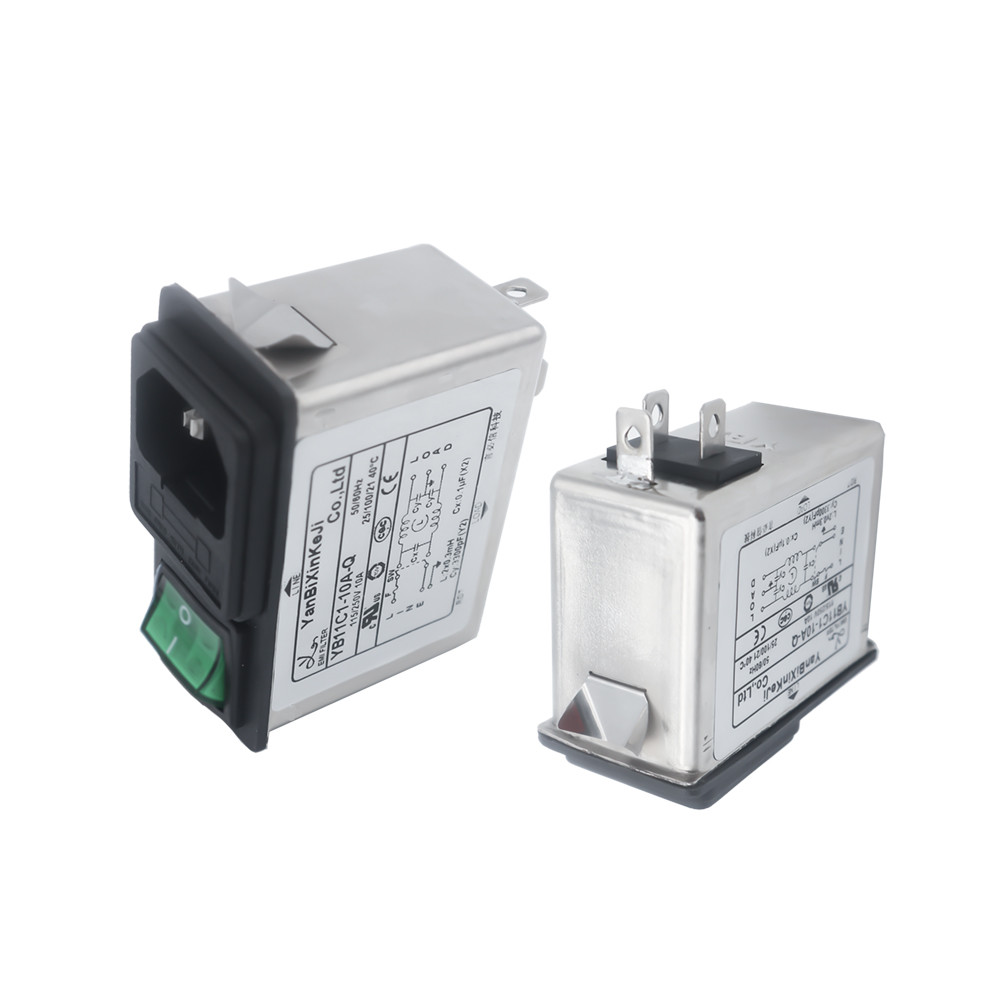

YB11C1-1A-Q(R) Product Picture:

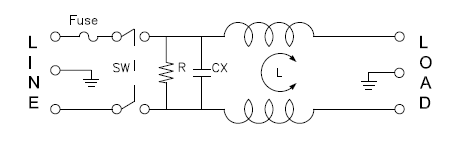

Electrical Schematic:

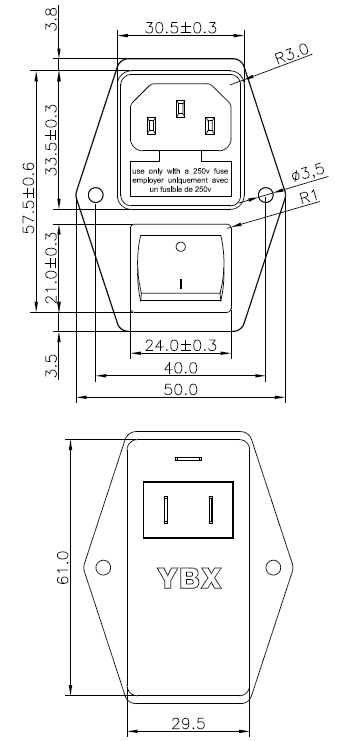

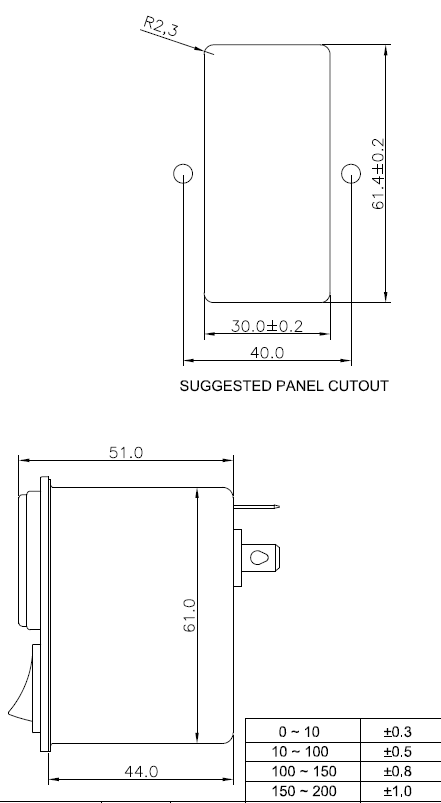

Mechanical Dimension(Unit: mm)
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Other EMI Filter Series
We have the most complete range of EMI filters, in addition to IEC Inlet Filter and Power Entry Module Filter, we also have single-phase filters, three-phase filters, special EM filters for PC boards and so on, contact us, we have professional technicians to choose the right EMI filters for you, look forward to hearing from.
|
|
