Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse

Brand Name : YBX

Model Number : YB11B9-10A-Q

Certification : cUL,TUV,CQC,CE,ROHS,CB,ENEC,REACH

Place of Origin : China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 10-20 days

Packaging Details : 56.5*28.5*22.5cm(one box)

TYPE : YB11B9-10A-Q

Rated Voltage Max. : 250VAC,50/60Hz

Operating frequency : DC to 400Hz

Rated currents : 1~10A@40°C,50°C(UL/CUL)

L-N : 1450VDC

L/N-G : 4000VAC(R5 type)

Protection level : IP40 according to IEC 60529

Flammability corresponding to : UL 94V-0

Transfer Function : Low Pass

Contact Now

Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse



YB11B9-10A Fast On IEC Emi Power Filter with Switch for Coffee Equipment



Typical Applications of EMI fiter



1. Portable electrical and electronic equipment;



2. Medical equipment;



3. Test and measurement equipment;



4. Small and medium-sized machines and household equipment



5. Single-phase power supply,switch-mode power supply



Technical Specification of EMI fiter



Item Emi Power Filter
Model Emi Power Filter YB-B9
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115/250V
Rated Current 1A 3A 6A 10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 115VAC/50HZ 0.3uA Max
MOQ 1000pcs
Price Negotiable
Lead Time 5~15 weekday



Features of EMI fiter



(1) Quick connect(6.35*0.8mm)



(2) High performance /compact structure



(3) Multiple output modes(fast-on,solder and wire)



(4) Optional medical versions((R5) type)



(5) Rated currents up to 10A



Rule of Nomination of EMI fiter



YB----11------ B9---------10A----------Q --------- ( R 5 G )

           ¦           ¦               ¦                 ¦               ¦  ¦  ¦

     circuit    case     current    connection  optional



Tabulates of EMI fiter

Model No. Rated Current
@40°C
 		 Terminal Options*
 		 Bleeder resistor(optional)
 		 Leakage current 250V/50Hz Electrical Schematic
 		 Rated Voltage(V)  Operating Frequency(Hz)
型号
Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And FuseLow Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse
YB11B9-1A 1A Q S - - - <0.8mA Fig.1 115/250V 50/60Hz
YB11B9-2A 2A Q S - - - Fig.1
YB11B9-3A 3A Q S - - - Fig.1
YB11B9-4A 4A Q S - - - Fig.1
YB11B9-6A 6A Q S - - - Fig.1
YB11B9-8A 8A Q S - - - Fig.1
YB11B9-10A 10A Q S - - - Fig.1
YB11B10-1A 1A Q S - - - Fig.1
YB11B10-2A 2A Q S - - - Fig.1
YB11B10-3A 3A Q S - - - Fig.1
YB11B10-4A 4A Q S - - - Fig.1
YB11B10-6A 6A Q S - - - Fig.1
YB11B10-8A 8A Q S - - - Fig.1
YB11B10-10A 10A Q S - - - Fig.1
YB11B11-1A 1A Q S - - - Fig.1
YB11B11-2A 2A Q S - - - Fig.1
YB11B11-3A 3A Q S - - - Fig.1
YB11B11-4A 4A Q S - - - Fig.1
YB11B11-6A 6A Q S - - - Fig.1
YB11B11-8A 8A Q S - - - Fig.1
YB11B11-10A 10A Q S - - - Fig.1
YB11B12-1A 1A Q S - - - Fig.1
YB11B12-2A 2A Q S - - - Fig.1
YB11B12-3A 3A Q S - - - Fig.1
YB11B12-4A 4A Q S - - - Fig.1
YB11B12-6A 6A Q S - - - Fig.1
YB11B12-8A 8A Q S - - - Fig.1
YB11B12-10A 10A Q S - - - Fig.1


Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse*Q: Fast-on 6.35x0.8mm Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse S: solder 4.0x0.8mm Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse W: UL1015 18awg

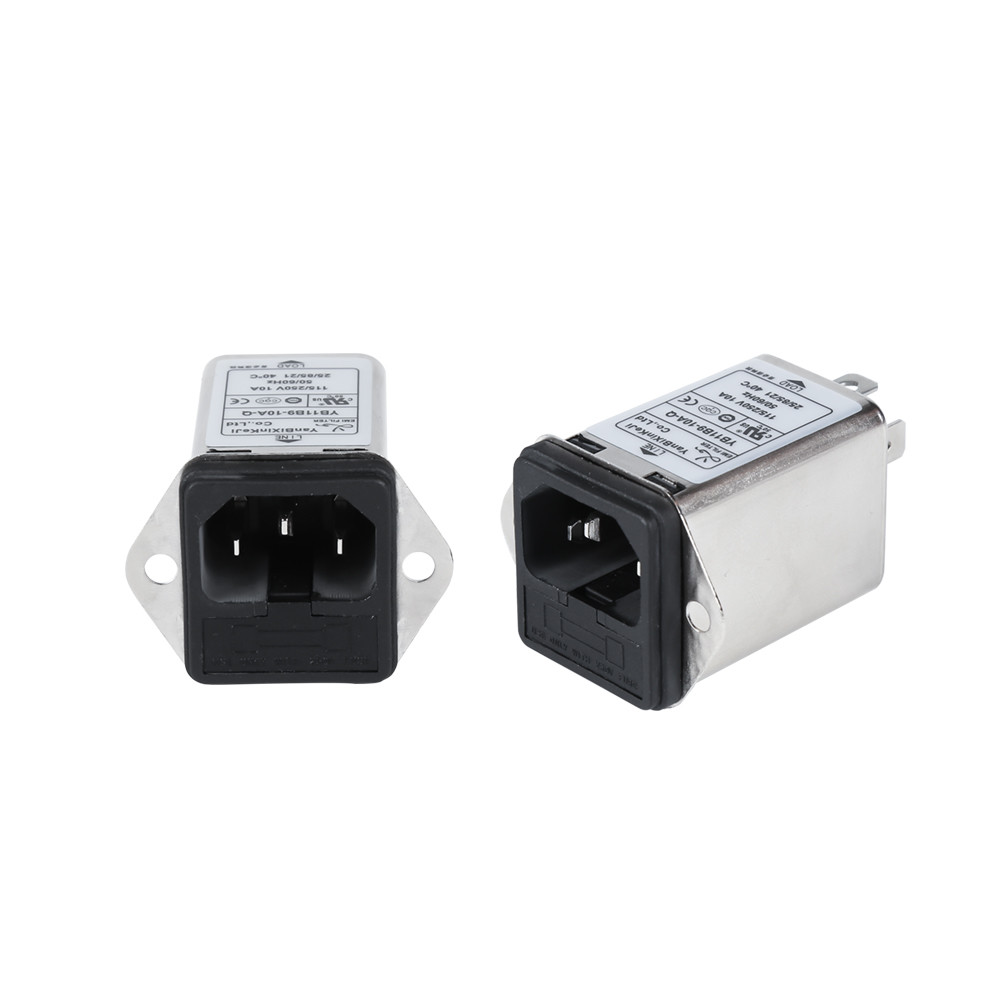

Product Picture:



Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse

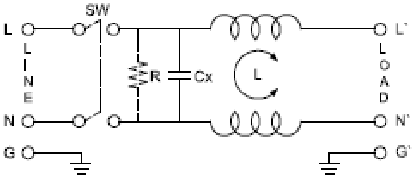

Electrical Schematic of EMI fiter



Fig.1



Standard type



Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse

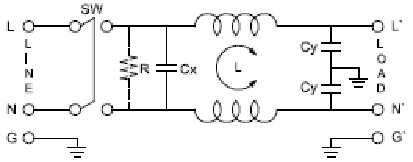

Fig.2



R5 type



Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse

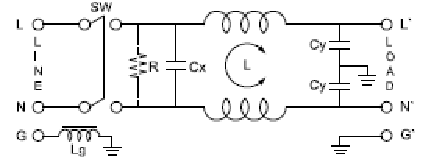

Fig.3



Lg type

Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse



Mechanical Dimension(Unit: mm) of EMI fiter



Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse

Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse



Case A B C D E F G H I J K
B9/B10 58 28 32 44 36 33.5 13 11 12.5 4.5 6.35*0.8
B11/B12 58 28 32 30.5   33.5 13 11 12.5   6.35*0.8
Tolerances ±1 ±1 ±1 ±1 ±0.15 ±1 ±0.5 ±0.5 ±0.5 ±1 ±0.15



Low Pass UL 94V-0 IEC Inlet Filter 150KHz~30MHz EMI Filter With Socket And Fuse
