Surface Mount 10A IEC Inlet Filter Three In One EMI Filter With Fuse And Switch
Filtered Power Entry Modules with Fuse and Switch EMI EMC Filters
Typical Applications of EMI filter:
-- Portable electrical and electronic equipment
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
Technical Specification of EMI filter:
| Item | IEC Filter |
| Model | IEC Filter YB-C |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60dB~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115V/250V |
| Rated Current | 1A~10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 100 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 0.8mA Max |
| MOQ | 100pcs |
| Price | Negotiable |
| Lead Time | 5~15 weekday |
Features of EMI filter:
1. 2-pole rocker switch
2. Rated currents up to 10A
3. Single or dual-fuse holder
Rule of Nominationof EMI filter:
YB 11 C9 - 4A - Q ( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
C9: One Fuse
C10: Two Fuses
Tabulates of EMI filter:
| Model No. | Rated Current
@40°C
| Terminal Options* | Bleeder resistor(optional) |
G | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) | | |  |  |  | | YB11C9-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz | | YB11C9-2A | 2A | Q | S | - | - | - | Fig.1 | | YB11C9-3A | 3A | Q | S | - | - | - | Fig.1 | | YB11C9-4A | 4A | Q | S | - | - | - | Fig.1 | | YB11C9-6A | 6A | Q | S | - | - | - | Fig.1 | | YB11C9-8A | 8A | Q | S | - | - | - | Fig.1 | | YB11C9-10A | 10A | Q | S | - | - | - | Fig.1 | | YB11C10-1A | 1A | Q | S | - | - | - | Fig.1 | | YB11C10-2A | 2A | Q | S | - | - | - | Fig.1 | | YB11C10-3A | 3A | Q | S | - | - | - | Fig.1 | | YB11C10-4A | 4A | Q | S | - | - | - | Fig.1 | | YB11C10-6A | 6A | Q | S | - | - | - | Fig.1 | | YB11C10-8A | 8A | Q | S | - | - | - | Fig.1 | | YB11C10-10A | 10A | Q | S | - | - | - | Fig.1 | |
Medical type Tabulates of EMI filter:
| Model No. | Rated Current
@40°C | Terminal Options | Bleeder resistor(optional (MΩ) | Medical equipment
5 |
G | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) | | |  |  | | | YB11C9-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | <5μA | Fig.2 | 115/250V | 50/60Hz | | YB11C9-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C9-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C9-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C9-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C9-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C9-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C10-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C10-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C10-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C10-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C10-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C10-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.2 | | YB11C10-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.2 | |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Electrical schematic of EMI filter:
Fig.1
Standard type
Fig.2
R5 type
Fig.3

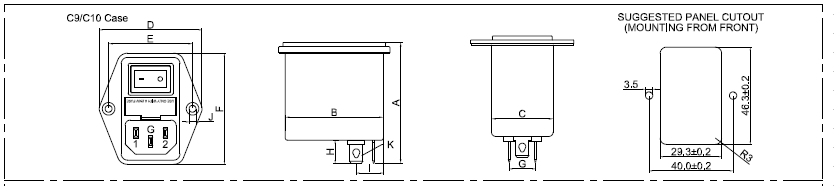

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| C9/C10 | 58 | 48 | 29 | 50 | 40 | 53 | 11 | 11 | 17 | 3.3 | 6.35*0.8 |
Tolerances
公差 | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Common mode -------- differential mode
1A
3A
6A
8A
10A
