One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter



YB11E1-6A-W Power Line Filter:

YB11E1-6A-W is the One Stage Power Line Filter. According to different equipment to choose the appropriate output mode, its connection mode can be selected fast-on terminal, M4 screw, electronic wire. The maximum rated current up to 20 amps. Designed with both common mode and differential mode performing high noise suppression.



Features Of Power Line Filter:

-- Rated currents from 1 to 10A

-- General-purpose filtering performance

-- Optional medical versions((R5) type)

-- Customized products according to customer's requirements.



Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Datacom equipment

-- Office automation equipment



Filter Selection Table:
Part No. Case Rated Currents (A) Output Connections
YB11E1-1A E1 1 Fast-on terminal
YB11E1-3A E1 3
YB11E1-6A E1 6 Wire
YB11E1-8A E1 8
YB11E1-10A E1 10 M4 Screw
YB11E1-20A E1 20

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter*Q: Fast-on 6.35x0.8mm One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter S: Screw lug One Stage Single Phase Filter 6A Low Leakage Current Power Line FilterW: UL1015 18awg





Naming Rule:

YB 11 E1 - 6A - W
∣ ∣ ∣   ∣   ∣
Our brand Circuit Dimension   Current   Output Connection
  11:11 circuit E1   6A :6 amp   Q:fast-on tab 250
        10A :10 amp   W:wire
        20A :20 amp   S:M4 screw



Technical Specification:

Item Power line Filter
Model Power line Filter YB-E
Transfer Function Low Pass
Package Type Surface Mount
Nominal Center Frequency 10K-30MHZ
Insertion Loss 60~90dB
Input Impedance 50Ω
Rated Voltage 115V/250V
Rated Current 1~10A
Environmental Temperature 40°C
Temperature Range 25 / 085 / 21
Operating Frequency 50/60HZ
Line to Line 1450VDC
Line to Ground 2250VDC
Maximum Leakage Current 250VAC/60HZ 0.8mA Max
MOQ 100pcs



YB11E1-6A-W Product Picture:

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter

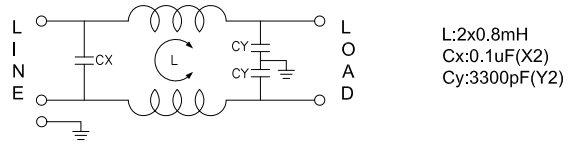

Electrical Schematic:

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter



Mechanical Dimension(Unit: mm)

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter



Product Certificates:

One Stage Single Phase Filter 6A Low Leakage Current Power Line Filter
