1~10A YB11C4 Power EMI Filter IEC Inlet Filter With Socket, Switch And Fuse
IEC Plug In EMI Filter:
YB11C4-10A-Q is a power entry module filter.It is a compact and easy to install filter that plugs directly into an AC power outlet. Our design standards are in accordance with IEC60939, and filters have passed the UL,CQC,TUV certification.
Feature Of Power Entry Module Filter:
1. The products have high attenuation, based on chokes with high saturation resistance and excellent thermal behavior
2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing.
3. Compact size: IEC plug-in EMI filters are small and compact, which makes them easy to install and use in a variety of applications.
4. Easy installation: IEC plug-in EMI filters are easy to install and require no additional wiring or modifications to the system. They simply plug into the AC power socket and provide immediate EMI filtering.
Typical Applications:
1. Portable electrical and electronic equipment;
2. Medical equipment;
3. Test and measurement equipment;
4. Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
YB11C4-10A-Q Specification:
| Product | YB-C IEC Socket Filter | Rated Current | 1~10A |
| Model | YB11C4-10A-Q | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 50K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 30~90dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 115VAC/50HZ 0.4mA Max
250VAC/60HZ 0.8mA Max |
| Rated Voltage | 115V/250V | MOQ | 100pcs |
Naming Rule:
| YB | 11 | C4 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | C4 | | 6A :6 amp | | Q:fast-on tab 250 |
| | | C3:one fuse | | 8A :8 amp | | W:wire |
| | | C4:double fuse | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11C4 | C4 | 1 | Fast-on terminal |
| YB11C4 | C4 | 3 |
| YB11C4 | C4 | 6 | Wire |
| YB11C4 | C4 | 8 |
| YB11C4 | C4 | 10 | Solder Lug Terminals |

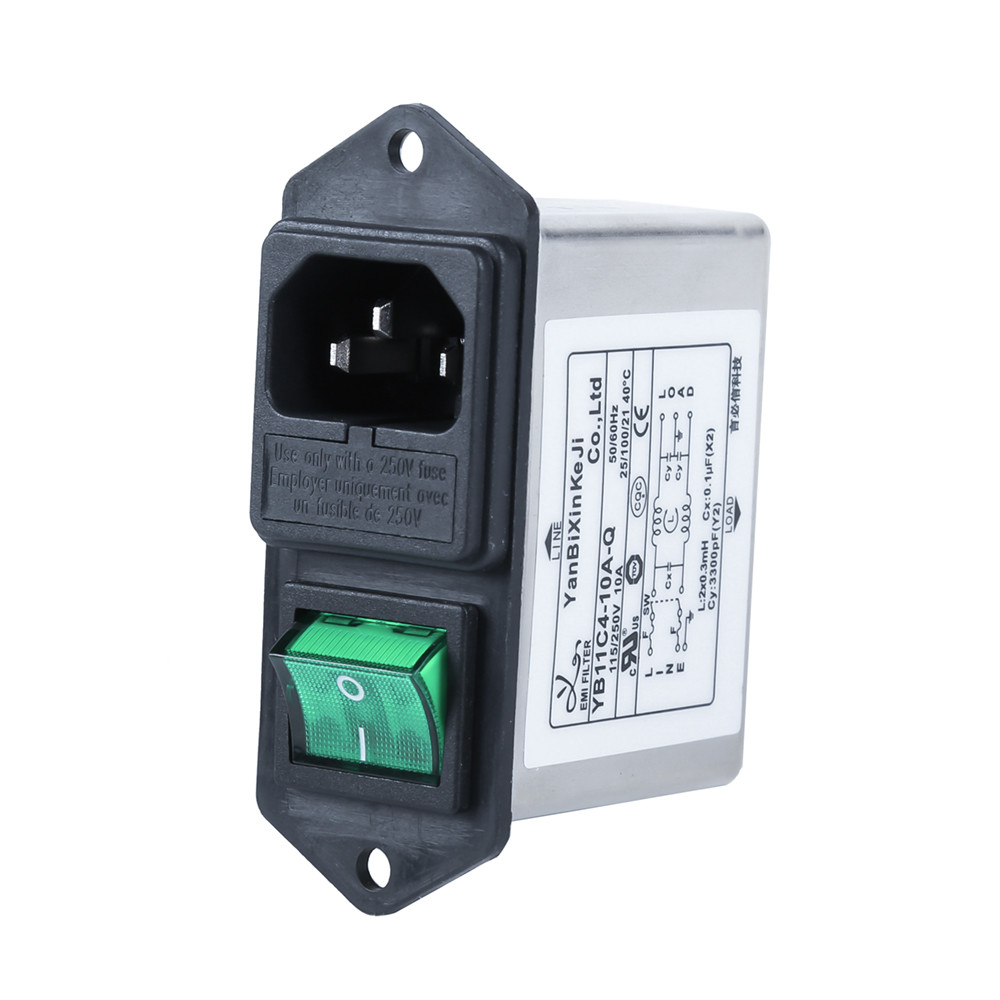

YB11C4-10A-Q Product Picture:
| Case | A | B | C | D | E | F | G | H | I | J | K | L |
| C3/C4 | 62 | 61 | 29.5 | 80 | 72 | 35 | 11 | 11 | 17 | 3.5 | 6.35*0.8 | 46 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 | 46 |

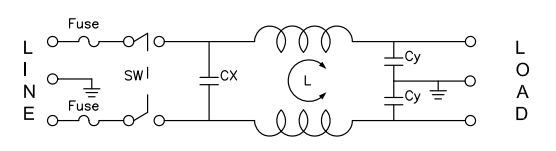

Electrical Schematic:

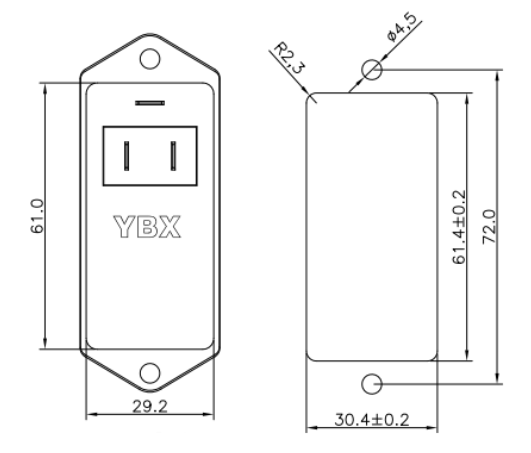

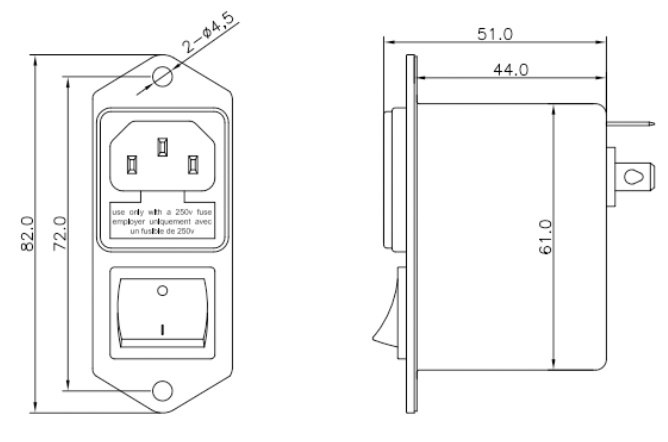

Mechanical Dimension(Unit: mm)
