1A~10A 0.8mA Low Leakage Current IEC Inlet Filter Wire Output EMI Noise Filter With Socket
IEC Inlet Filter:
YB11A4-10A-W is a IEC Inlet Filter with socket. It is a compact and easy to install filter that plugs directly into an AC power outlet. Our design standards are in accordance with IEC60601. IEC Standard inlets allow the use of one common input socket to accomodate differing international power cord designs. Using the IEC input ensures that regardless what electrical system it is, there is a standard power cord to fit.
Features Of Plug-in EMI Filter:
1. The products have high attenuation, based on chokes with high saturation resistance and excellent thermal behavior
2. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and hipot testing.
3. Compact size: IEC plug-in EMI filters are small and compact, which makes them easy to install and use in a variety of applications.
4. Easy installation: IEC plug-in EMI filters are easy to install and require no additional wiring or modifications to the system. They simply plug into the AC power socket and provide immediate EMI filtering.
IEC Inlet Filter Applications:
1. Portable electrical and electronic equipment;
2. Medical equipment;
3. Test and measurement equipment;
4. Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
YB11A4-10A-W Specification:
| Product | YB-A IEC Socket Filter | Rated Current | 1~10A |
| Model | YB11A4-10A-W | Environmental Temperature | 40°C |
| Transfer Function | Low Pass | Temperature Range | 25 / 085 / 21 |
| Package Type | Surface Mount | Operating Frequency | 50/60HZ |
| Nominal Center Frequency | 10K-30MHZ | Line to Line | 1450VDC |
| Insertion Loss | 10~30dB | Line to Ground | 2250VDC |
| Input Impedance | 50Ω | Maximum Leakage Current | 115VAC/50HZ 0.4mA Max
250VAC/60HZ 0.8mA Max |
| Rated Voltage | 115V/250V | MOQ | 100pcs |
Naming Rule:
| YB | 11 | A4 | - | 10A | - | W |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | A4 | | 6A :6 amp | | Q:fast-on tab 250 |
| | | | | 8A :8 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
IEC Inlet Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11A4 | A4 | 1 | Fast-on terminal |
| YB11A4 | A4 | 3 |
| YB11A4 | A4 | 6 | Wire |
| YB11A4 | A4 | 8 |
| YB11A4 | A4 | 10 | Solder Lug Terminals |

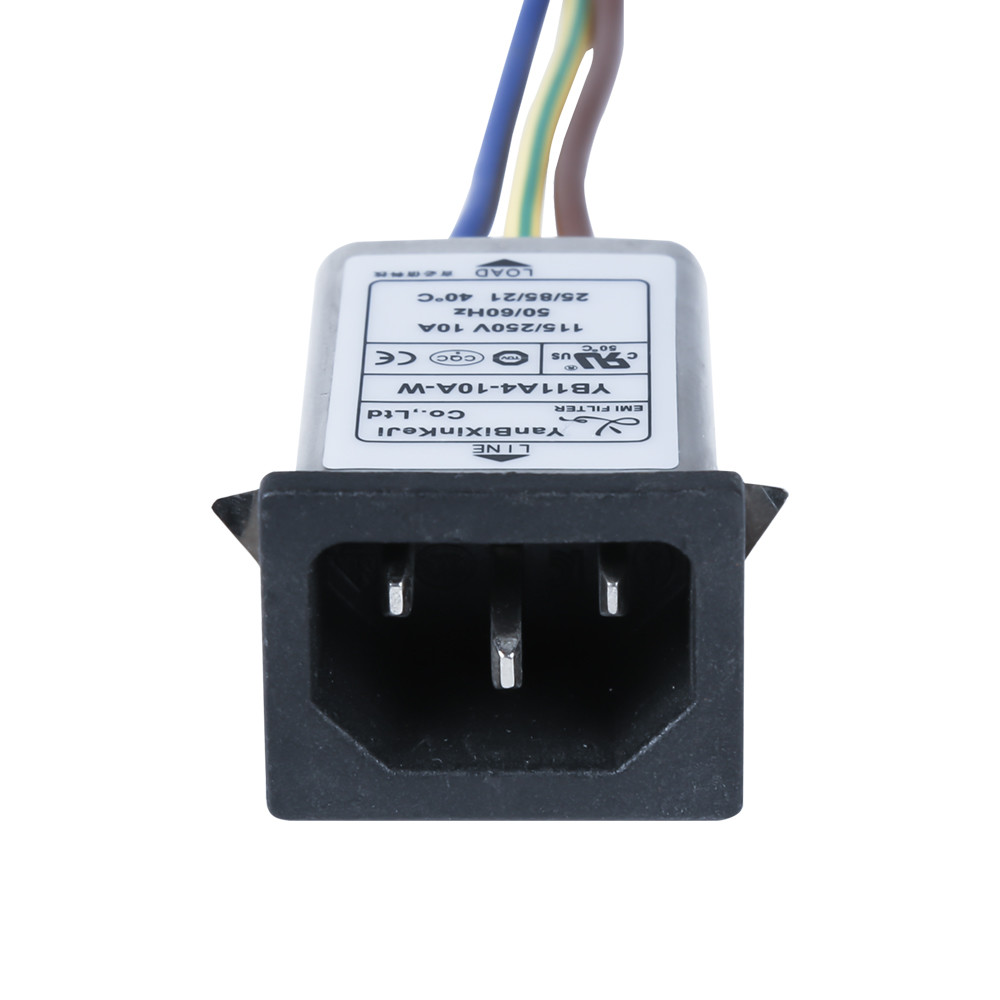

YB11A4-10A-W Product Picture:
Electrical Schematic:

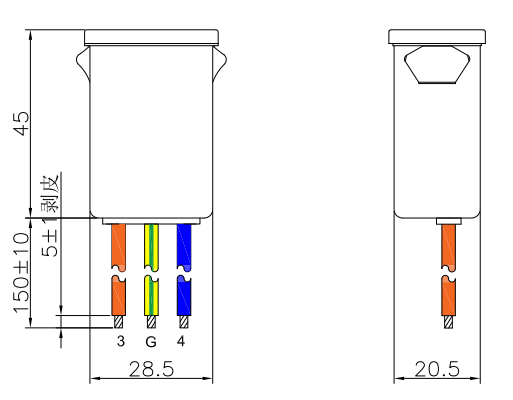

Mechanical Dimension(Unit: mm)
Insertion Loss:
